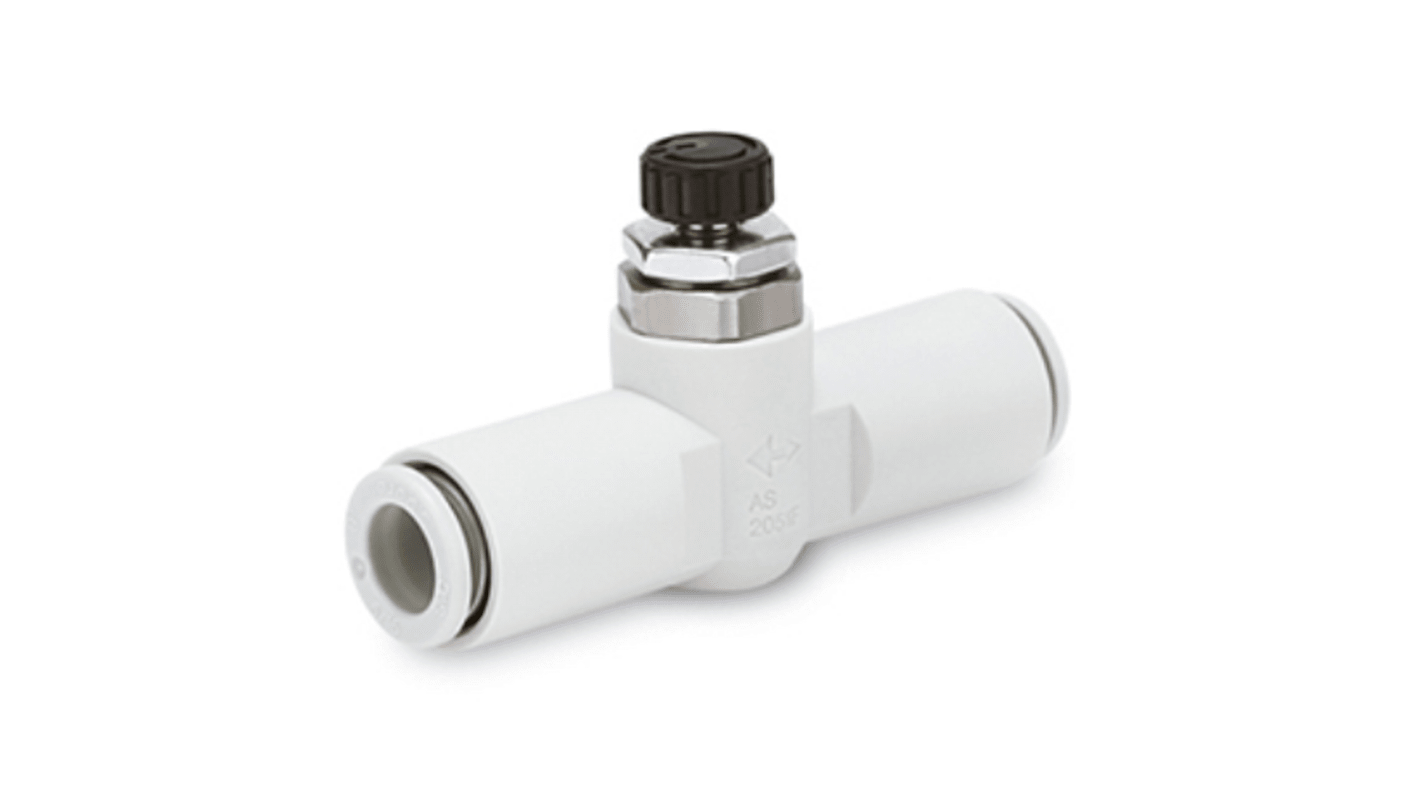

SMC AS2001FM Series Flow Controller Fitting Kit Flow Controller, Inlet Male, Tube R 6 mm, Outlet Female Push-in R 6 mm
- RS-stocknr.:
- 254-8139
- Fabrikantnummer:
- AS2001FM-06
- Fabrikant:
- SMC
Subtotaal (1 eenheid)*
€ 15,67
(excl. BTW)
€ 18,96
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 1 stuk(s) klaar voor verzending
- 9 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 15,67 |
*prijsindicatie
- RS-stocknr.:
- 254-8139
- Fabrikantnummer:
- AS2001FM-06
- Fabrikant:
- SMC
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | SMC | |
| Inlet Connection Type | Tube | |
| Product Type | Flow Controller | |
| Outlet Connection Type | Push-in | |
| Sub Type | Flow Controller Fitting Kit | |
| Inlet Connection Size | 6 mm | |
| Outlet Connection Size | 6 mm | |
| Series | AS2001FM | |
| Inlet Thread Standard | R | |
| Maximum Operating Pressure | 1 Mpa | |
| Inlet Port Gender | Male | |
| Outlet Thread Standard | R | |
| Outlet Port Gender | Female | |
| Minimum Operating Temperature | -5°C | |
| Material | Electroless Nickel Plated, Zinc Alloy, Stainless Steel | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Hazardous Area Certification | No | |
| Minimum Operating Pressure | 0.1MPa | |
| Proof Pressure | 1.5MPa | |
| Alles selecteren | ||
|---|---|---|
Merk SMC | ||
Inlet Connection Type Tube | ||
Product Type Flow Controller | ||
Outlet Connection Type Push-in | ||
Sub Type Flow Controller Fitting Kit | ||
Inlet Connection Size 6 mm | ||
Outlet Connection Size 6 mm | ||
Series AS2001FM | ||
Inlet Thread Standard R | ||
Maximum Operating Pressure 1 Mpa | ||
Inlet Port Gender Male | ||
Outlet Thread Standard R | ||
Outlet Port Gender Female | ||
Minimum Operating Temperature -5°C | ||
Material Electroless Nickel Plated, Zinc Alloy, Stainless Steel | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Hazardous Area Certification No | ||
Minimum Operating Pressure 0.1MPa | ||
Proof Pressure 1.5MPa | ||
- Land van herkomst:
- JP
The SMC speed controller with one-touch fitting for metal body and is available in elbow and universal style construction. It is designed for low speed operation.
Meter-in and meter-out types easily determined by the flow direction symbol on the resin bo
In-line type speed controller with one-touch fittings
Designed for low speed operation
All brass parts are electroless nickel plated
Accepts metric or inch size tubing
Meter-in and meter-out types easily determined by the flow direction symbol on the resi
