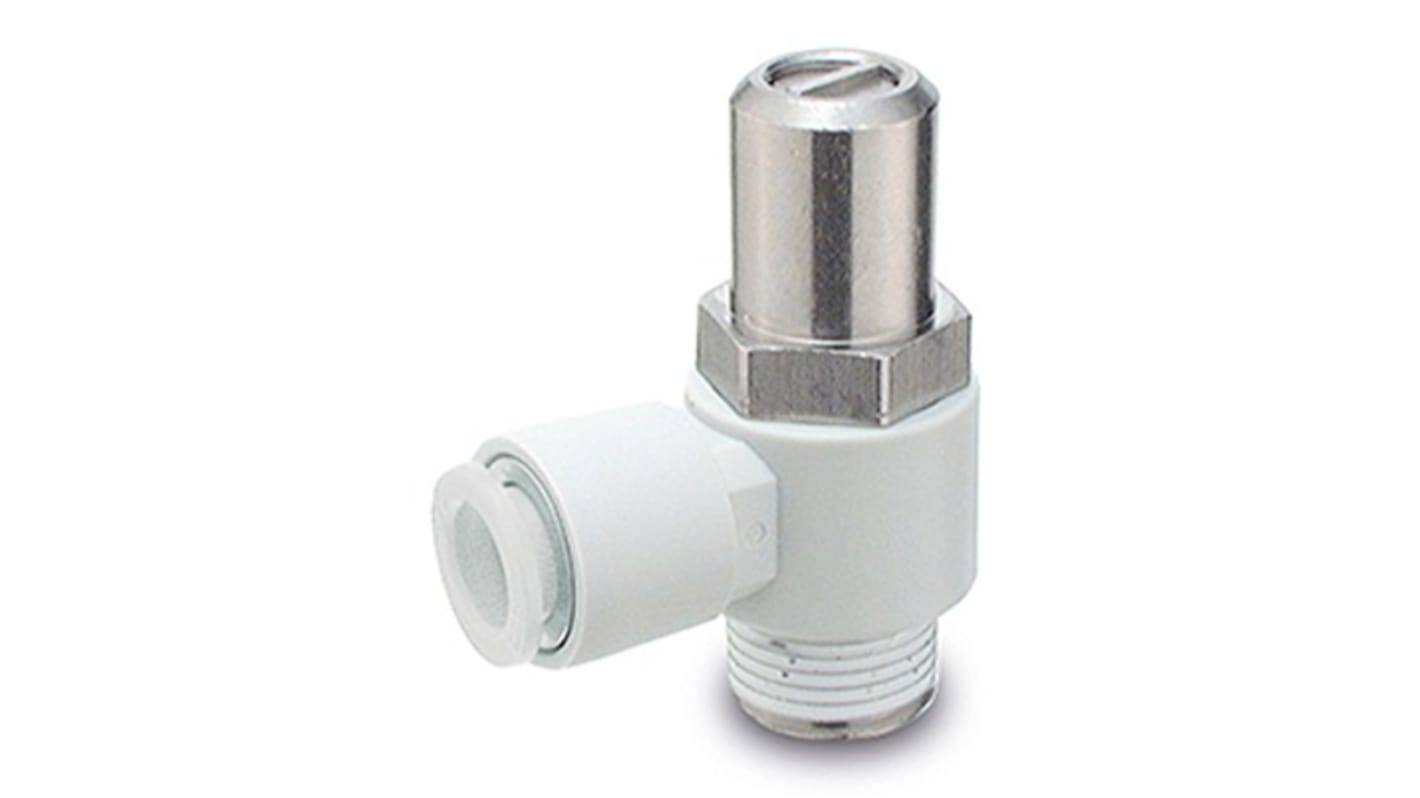

SMC AS Series Speed Controller Speed Controller, AS*2*1F-T Series, Inlet Female, Threaded Metric M5 x 0.8, Outlet Male
- RS-stocknr.:
- 268-9658
- Fabrikantnummer:
- AS1201F-M5-06T
- Fabrikant:
- SMC
Subtotaal (1 eenheid)*
€ 8,87
(excl. BTW)
€ 10,73
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 1 stuk(s) klaar voor verzending
- 14 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 8,87 |
*prijsindicatie
- RS-stocknr.:
- 268-9658
- Fabrikantnummer:
- AS1201F-M5-06T
- Fabrikant:
- SMC
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | SMC | |
| Product Type | Speed Controller | |
| Inlet Connection Type | Threaded | |
| Outlet Connection Type | Push-in | |
| Sub Type | Speed Controller | |
| Inlet Connection Size | M5 x 0.8 | |
| Outlet Connection Size | 6 mm | |
| Series | AS | |
| Inlet Thread Standard | Metric | |
| Inlet Port Gender | Female | |
| Maximum Operating Pressure | 1 Mpa | |
| Material | Polybutylene Terephthalate Resin, Nitrile Rubber, Brass | |
| Outlet Port Gender | Male | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Hazardous Area Certification | NO | |
| Minimum Operating Pressure | 0.1MPa | |
| Proof Pressure | 1.5MPa | |
| Model Number | AS*2*1F-T Series | |
| Alles selecteren | ||
|---|---|---|
Merk SMC | ||
Product Type Speed Controller | ||
Inlet Connection Type Threaded | ||
Outlet Connection Type Push-in | ||
Sub Type Speed Controller | ||
Inlet Connection Size M5 x 0.8 | ||
Outlet Connection Size 6 mm | ||
Series AS | ||
Inlet Thread Standard Metric | ||
Inlet Port Gender Female | ||
Maximum Operating Pressure 1 Mpa | ||
Material Polybutylene Terephthalate Resin, Nitrile Rubber, Brass | ||
Outlet Port Gender Male | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Hazardous Area Certification NO | ||
Minimum Operating Pressure 0.1MPa | ||
Proof Pressure 1.5MPa | ||
Model Number AS*2*1F-T Series | ||
- Land van herkomst:
- JP
The SMC Flow Control with fitting is a metal elbow type tamper proof speed controller for many heavy-duty applications. It offers extra protection against inadvertent operation. The meter-in and meter-out types is easily determined by the flow direction symbol on the metal body.
Lightweight, compact and precision
Threads with and without sealant are available as standard
