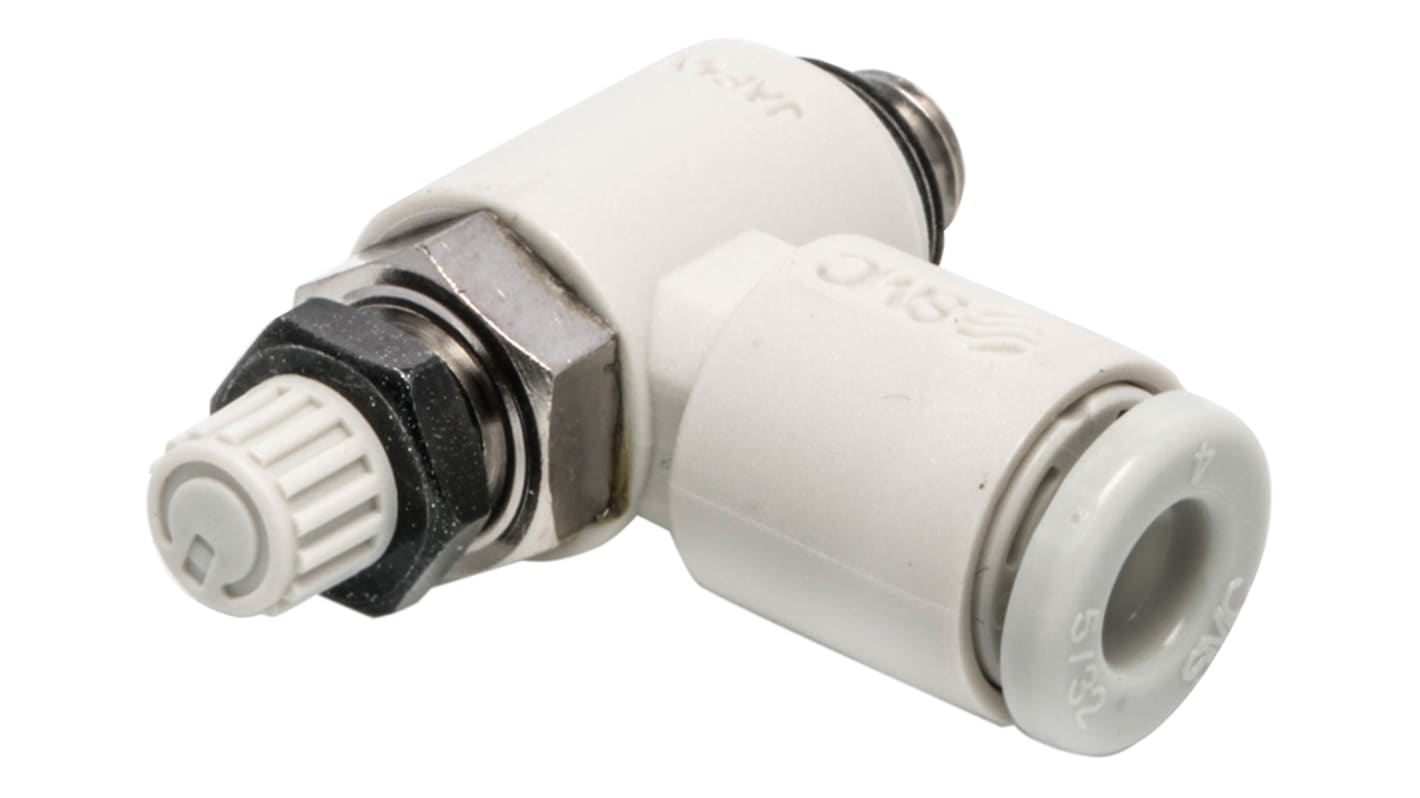

SMC AS Series Speed Controller

RS-stocknr.:: 721-3512
Fabrikantnummer:: AS1211F-M5-04
Fabrikant:: SMC

Bekijk deze categorie

Bulkkorting beschikbaar

Bekijk bulkkorting

Subtotaal (1 eenheid)*

€ 8,66

(excl. BTW)

€ 10,48

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

Plus verzending 12 stuk(s) vanaf 17 augustus 2026
Plus verzending 232 stuk(s) vanaf 17 augustus 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 - 4	€ 8,66
5 - 9	€ 8,39
10 +	€ 8,11

*prijsindicatie

RS-stocknr.:: 721-3512
Fabrikantnummer:: AS1211F-M5-04
Fabrikant:: SMC

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	SMC
	Product Type	Speed Controller
	Series	AS
	Maximum Operating Pressure	1 Mpa
	Minimum Operating Temperature	-5°C
	Material	Brass Metal Part, 303 Stainless Steel, 304 Stainless Steel, 316 Stainless Steel
	Maximum Operating Temperature	60°C
	Standards/Approvals	JIS B0203, JIS B0211, JIS B0209, UL-94 Standards V-0
	Hazardous Area Certification	No
	Proof Pressure	1.5MPa

	Alles selecteren
	Merk SMC
	Product Type Speed Controller
	Series AS
	Maximum Operating Pressure 1 Mpa
	Minimum Operating Temperature -5°C
	Material Brass Metal Part, 303 Stainless Steel, 304 Stainless Steel, 316 Stainless Steel
	Maximum Operating Temperature 60°C
	Standards/Approvals JIS B0203, JIS B0211, JIS B0209, UL-94 Standards V-0
	Hazardous Area Certification No
	Proof Pressure 1.5MPa

Land van herkomst:: JP

SMC Series AS Speed Controller, 0.1 MPa Minimum Outlet Pressure, 1 MPa Maximum Outlet Pressure - AS1211F-M5-04

This speed controller is a robust solution for precise flow regulation in pneumatic systems. Constructed with a Durable metal body, it features a Compact design and uses metric threaded connections for easy installation. The controller accommodates adjustable outlet pressure settings ranging from 0.1 MPa to 1 MPa, making it suitable for various applications across industrial settings.

Features & Benefits

• Offers adjustable outlet pressure for tailored flow control
• Compatible with various tubing sizes from Ø 2 to Ø 12 mm
• Designed with M5 x 0.8 threaded connections ensuring secure fittings
• Constructed from metal for enhanced durability under pressure
• Suitable for ambient temperatures from -5 °C to 60 °C

Applications

• Utilised in automated machinery for precise speed control
• Employed in robotics for consistent pneumatic operations
• Suitable for assembly lines requiring adjustable airflow
• Effective in material handling systems for optimal performance

What is the maximum pressure this device can handle?

The maximum operating pressure of this controller is 1 MPa, with a proof pressure of 1.5 MPa, ensuring reliable performance under demanding conditions.

Can this controller be adjusted for different Air pressure levels?

Yes, it allows for adjustable outlet pressure, ranging from a minimum of 0.1 MPa to a maximum of 1 MPa, making it adaptable for varying operational requirements.

What types of tubing can be used with this product?

It supports applicable tubing sizes from Ø 2 mm to Ø 12 mm and 1/8 to 1/2, providing flexibility for different installation scenarios.
