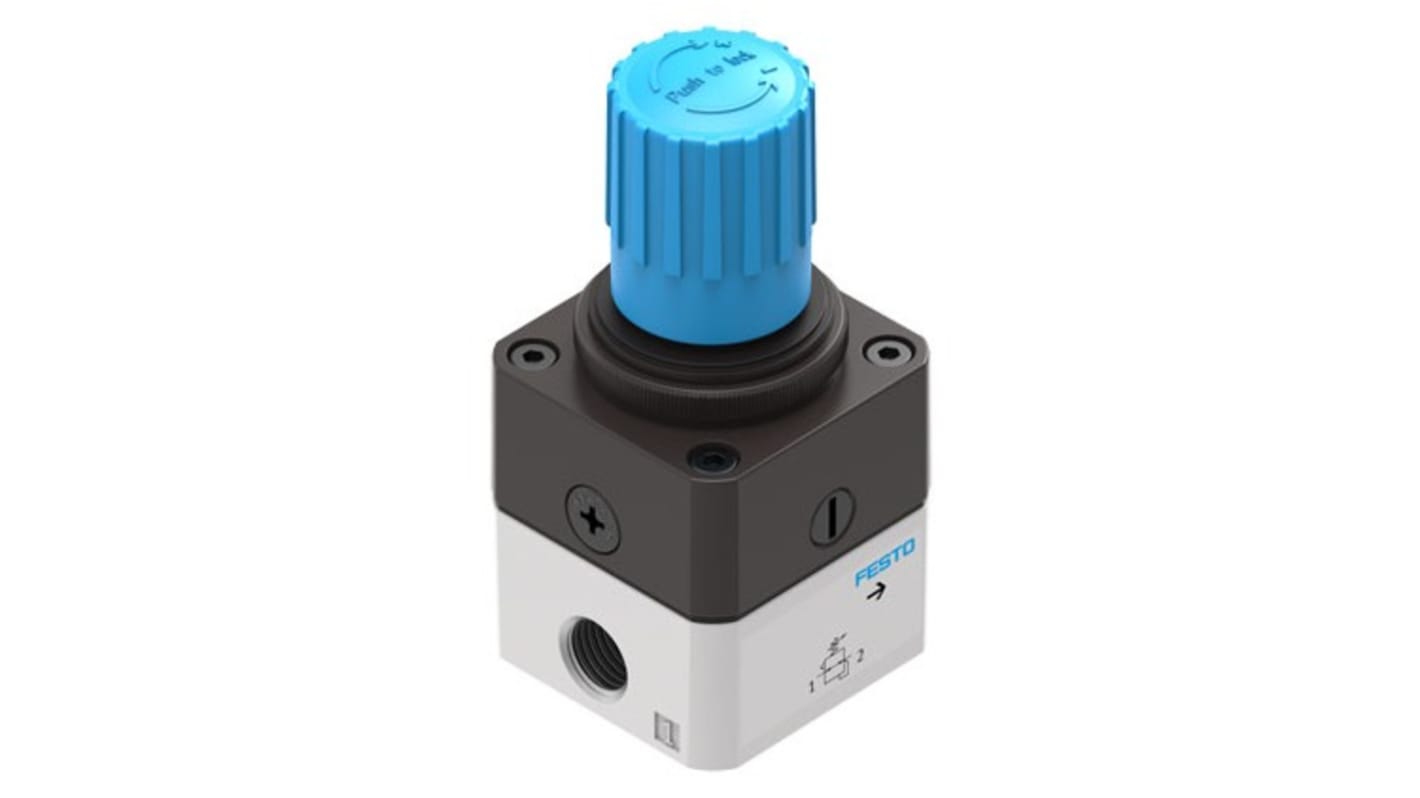

Festo L RP Series Pressure Regulator G 1/4 Threaded G G
- RS-stocknr.:
- 288-3484
- Fabrikantnummer:
- LRP-1/4-4-EX4
- Fabrikant:
- Festo
Subtotaal (1 eenheid)*
€ 265,60
(excl. BTW)
€ 321,38
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- Plus verzending 1 stuk(s) vanaf 14 september 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 265,60 |
*prijsindicatie
- RS-stocknr.:
- 288-3484
- Fabrikantnummer:
- LRP-1/4-4-EX4
- Fabrikant:
- Festo
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Festo | |
| Product Type | Pressure Regulator | |
| Inlet Connection Type | Threaded | |
| Inlet Connection Size | G 1/4 | |
| Outlet Connection Type | Threaded | |
| Outlet Connection Size | G 1/4 | |
| Series | L RP | |
| Inlet Thread Standard | G | |
| Maximum Operating Pressure | 12 bar | |
| Minimum Operating Temperature | -10°C | |
| Outlet Thread Standard | G | |
| Maximum Operating Temperature | 60°C | |
| Model Number | 549920 | |
| Alles selecteren | ||
|---|---|---|
Merk Festo | ||
Product Type Pressure Regulator | ||
Inlet Connection Type Threaded | ||
Inlet Connection Size G 1/4 | ||
Outlet Connection Type Threaded | ||
Outlet Connection Size G 1/4 | ||
Series L RP | ||
Inlet Thread Standard G | ||
Maximum Operating Pressure 12 bar | ||
Minimum Operating Temperature -10°C | ||
Outlet Thread Standard G | ||
Maximum Operating Temperature 60°C | ||
Model Number 549920 | ||
- Land van herkomst:
- HU
The Festo precision pressure regulator is designed for optimized control of output pressure in various industrial applications. With a robust design and precise operation, this regulator ensures consistent pressure levels for enhanced system performance.
Equipped with a piloted precision diaphragm control valve for accurate pressure regulation
Offers a pressure regulation range of 0.05 bar to 4 bar for versatile performance
Includes a rotary knob with detent for easy actuator lock
Comes with secondary venting for added safety during operation
Explosion protection for Zone 1, Zone 2, Zone 21, and Zone 22 environments according to ATEX standards
