Subtotaal (1 zak van 2 eenheden)*
€ 33,08
(excl. BTW)
€ 40,03
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 2 stuk(s) klaar voor verzending
- 21 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Zak(ken) | Per Zak | Per stuk* |
|---|---|---|
| 1 + | € 33,08 | € 16,54 |
*prijsindicatie
- RS-stocknr.:
- 187-8769
- Fabrikant:
- RS PRO
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | RS PRO | |
| Thread Standard | ISO 228 Class A | |
| Product Type | Quick Air Coupling | |
| Hose Barb Connection | 6mm | |
| Material | Brass | |
| Thread Gender | Male | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 80°C | |
| Maximum Operating Pressure | 12 bar | |
| Finish | Nickel Plated | |
| Standards/Approvals | 1907/2006, 2011/65/CE, 2014/68/UE, ISO 228 Class A, PED, SILICON FREE, UNI ISO 6150 B-12, UNI ISO 6150 C-10 | |
| Alles selecteren | ||
|---|---|---|
Merk RS PRO | ||
Thread Standard ISO 228 Class A | ||
Product Type Quick Air Coupling | ||
Hose Barb Connection 6mm | ||
Material Brass | ||
Thread Gender Male | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 80°C | ||
Maximum Operating Pressure 12 bar | ||
Finish Nickel Plated | ||
Standards/Approvals 1907/2006, 2011/65/CE, 2014/68/UE, ISO 228 Class A, PED, SILICON FREE, UNI ISO 6150 B-12, UNI ISO 6150 C-10 | ||
- Land van herkomst:
- IT

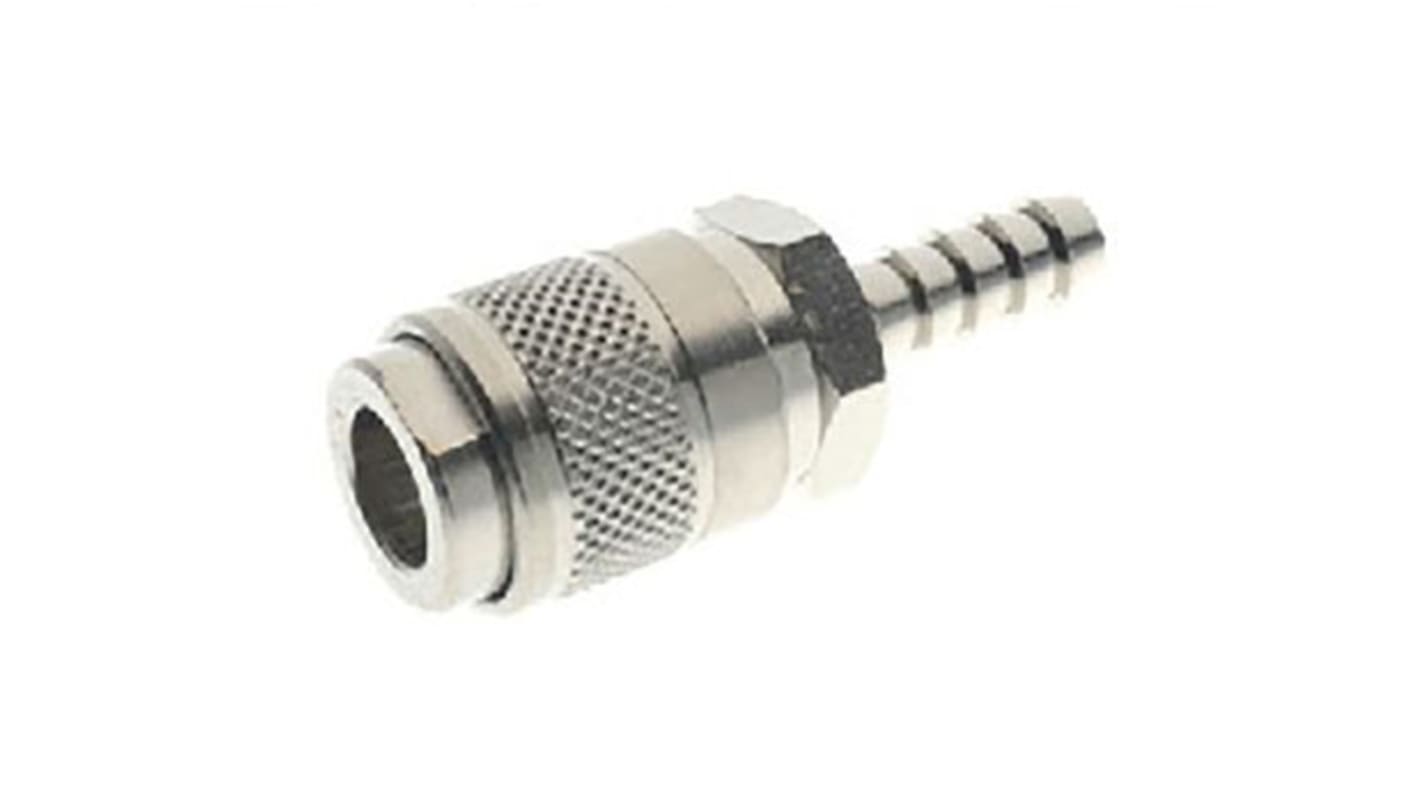

RS PRO Socket With Rest For Rubber Hose
The RS PRO male quick-connect coupling socket has a MIGNON profile. The hose barb has a connection of 6mm and the coupling unit is made from nickel-plated brass. This socket performs a single-handed operation.
Interchangeable with:
RECTUS/LEGRIS, PARKER 21/90, CAMOZZI 5050 - 5150, CEJN 220 and FESTO KD - KS 3
Features and Benefits
• Connection type is hose barb
• Light and compact
• Moulding coupler
• Multi socket
• Operating pressure is 12bar
• Operating temperature ranges between -20°C and 80°C
• Safety version
• Silicon free
Applications
• Compressed air and tools
• Cooling system
• Food and beverage
• Inert gases, vacuum
• Life and sciences
• Pneumatic and fluid technology
Certifications
• REACH (1907/2006 ) certified
• PED 2014/68/UE
• 2011/65/CE
