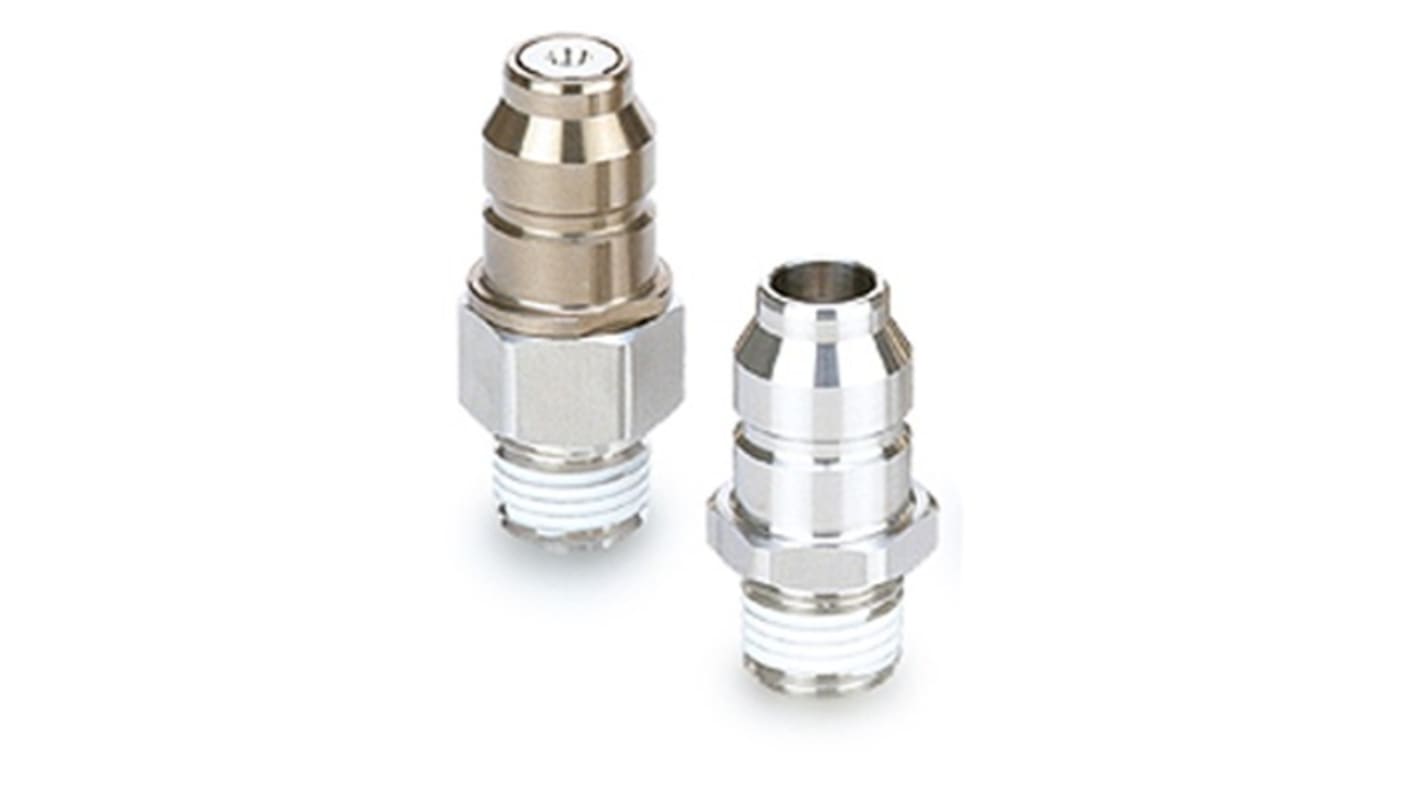

SMC Stainless Steel Pneumatic Quick Connect Coupling, 1/4 in Rc Male Rc Plug Socket
- RS-stocknr.:
- 288-6950
- Fabrikantnummer:
- KKA4P-04M
- Fabrikant:
- SMC
Subtotaal (1 eenheid)*
€ 45,72
(excl. BTW)
€ 55,32
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- Plus verzending 5 stuk(s) vanaf 21 september 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 45,72 |
*prijsindicatie
- RS-stocknr.:
- 288-6950
- Fabrikantnummer:
- KKA4P-04M
- Fabrikant:
- SMC
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | SMC | |
| Thread Standard | Rc | |
| Product Type | Pneumatic Quick Connect Coupling | |
| Thread Size | 1/4 in Rc | |
| Series | KKA | |
| Sub Type | Plug Socket | |
| Material | Stainless Steel | |
| Thread Gender | Male | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 150°C | |
| Maximum Operating Pressure | 1 MPa | |
| Standards/Approvals | RoHS, JIS Symbol | |
| Finish | Electroless Nickel Plated | |
| Alles selecteren | ||
|---|---|---|
Merk SMC | ||
Thread Standard Rc | ||
Product Type Pneumatic Quick Connect Coupling | ||
Thread Size 1/4 in Rc | ||
Series KKA | ||
Sub Type Plug Socket | ||
Material Stainless Steel | ||
Thread Gender Male | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 150°C | ||
Maximum Operating Pressure 1 MPa | ||
Standards/Approvals RoHS, JIS Symbol | ||
Finish Electroless Nickel Plated | ||
- Land van herkomst:
- JP
The SMC stainless steel coupler offers a unique connection method with a slim body design and large effective area. The construction does not use steel balls or valve springs, resulting in an unrestricted flow path. It features a reduction in body size, weight, and overall design for efficient performance.
S coupler series KK with a slim body design and large effective area
Unique connection method without steel balls or valve springs for an unrestricted flow path
Reduction in body size, weight, and overall design for efficiency
Body material: SUS304 with FKM seal material for durability
Non-greased specification for standard use with water and air
