Festo MS Series Pneumatic Regulator G 1/4 G G
- RS-stocknr.:
- 202-2060
- Fabrikantnummer:
- MS6-LRP-1/4-D5-A8
- Fabrikant:
- Festo
Subtotaal (1 eenheid)*
€ 219,80
(excl. BTW)
€ 265,96
(incl. BTW)
Voeg 1 eenheid toe voor gratis bezorging
Op voorraad
- 1 stuk(s) klaar voor verzending
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 219,80 |
*prijsindicatie
- RS-stocknr.:
- 202-2060
- Fabrikantnummer:
- MS6-LRP-1/4-D5-A8
- Fabrikant:
- Festo
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Festo | |
| Product Type | Pneumatic Regulator | |
| Inlet Connection Type | Pneumatic | |
| Inlet Connection Size | G 1/4 | |
| Outlet Connection Size | G 1/4 | |
| Series | MS | |
| Inlet Thread Standard | G | |
| Maximum Operating Pressure | 14 bar | |
| Minimum Operating Temperature | -10°C | |
| Outlet Thread Standard | G | |
| Material | Nitrile Rubber (NBR), Aluminium | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | ISO8573-1:2010 (7:4:4), Conforms to RoHS | |
| Alles selecteren | ||
|---|---|---|
Merk Festo | ||
Product Type Pneumatic Regulator | ||
Inlet Connection Type Pneumatic | ||
Inlet Connection Size G 1/4 | ||
Outlet Connection Size G 1/4 | ||
Series MS | ||
Inlet Thread Standard G | ||
Maximum Operating Pressure 14 bar | ||
Minimum Operating Temperature -10°C | ||
Outlet Thread Standard G | ||
Material Nitrile Rubber (NBR), Aluminium | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals ISO8573-1:2010 (7:4:4), Conforms to RoHS | ||
- Land van herkomst:
- HU

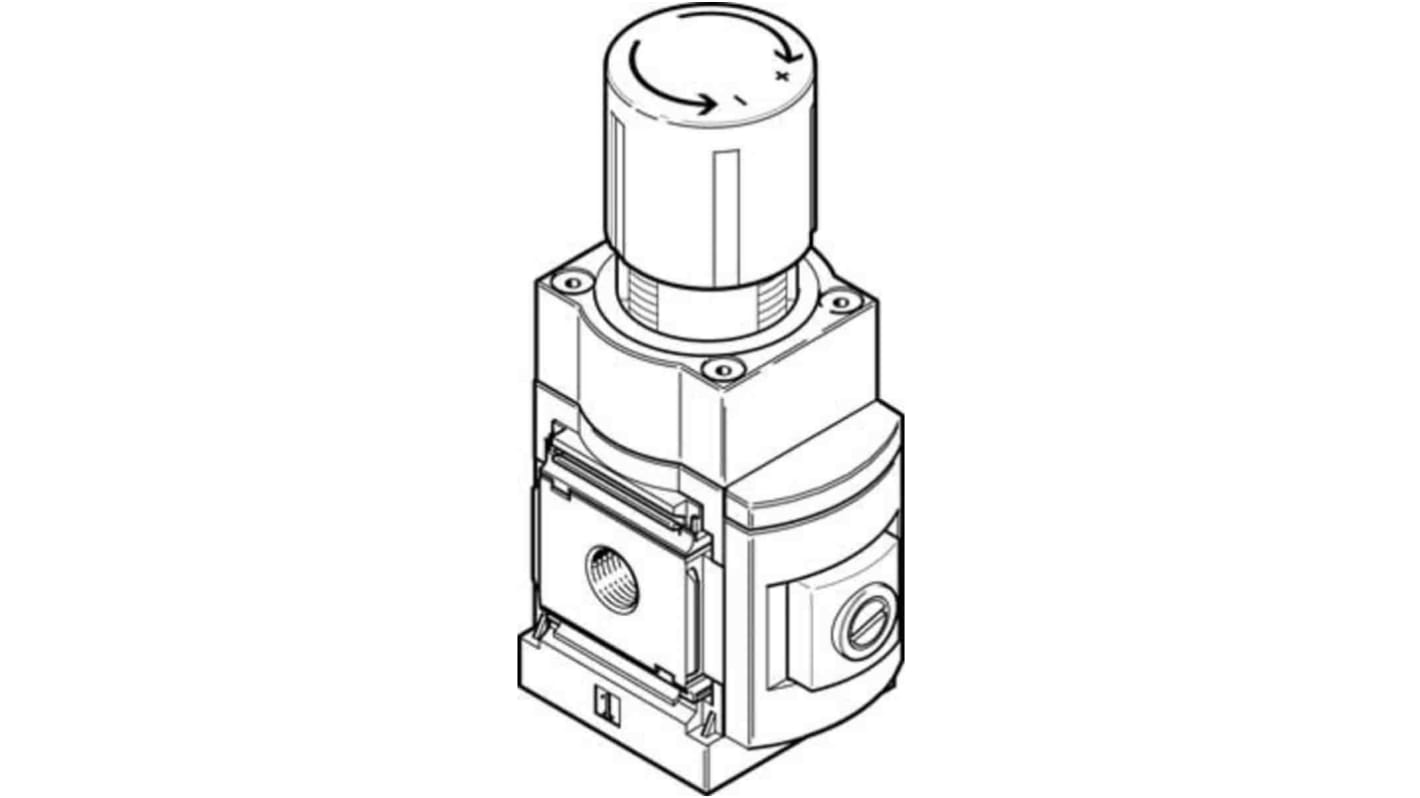

Festo Series MS Pneumatic Regulator, 4 Bar Maximum Outlet Pressure, 1400 L/min Typical Flow Rate - MS6-LRP-1/4-D5-A8, Numeric Part Number: 538008
This pneumatic regulator is designed to provide precise control of compressed air systems in various industrial applications. Operating within a pressure regulation range of 0.1 bar to 4 bar, it ensures consistent performance. The regulator is suitable for installation with 1/4 inch connections and can handle flow rates of up to 1400 L/min. With robust build quality, this product can function effectively in temperatures ranging from -10°C to +60°C.
Features & Benefits
• Adjustable output pressure maintains system stability
• High flow capacity supports efficient automation processes
• Piloted precision diaphragm control valve enhances reliability
• Prepared for direct pressure gauge installation for easy monitoring
• Corrosion-resistant materials ensure longevity in harsh environments
Applications
• Used for accurate pressure control in automation systems
• Ideal for pneumatic tools requiring a stable air supply
• Utilised in industries demanding precision in compressed air delivery
What type of medium can be used with this product?
It is compatible with compressed air and inert gases according to ISO standards, ensuring cleanliness and efficiency in operation.
How does the regulator handle varying demand in pneumatic systems?
Its design allows for rapid pressure adjustments and stabilises output pressure effectively, even with fluctuations in input pressure of up to 14 bar.
Can it be installed in confined spaces?
Yes, the flexible mounting options, including front panel and in-line, make it easy to fit into compact areas without sacrificing performance.
