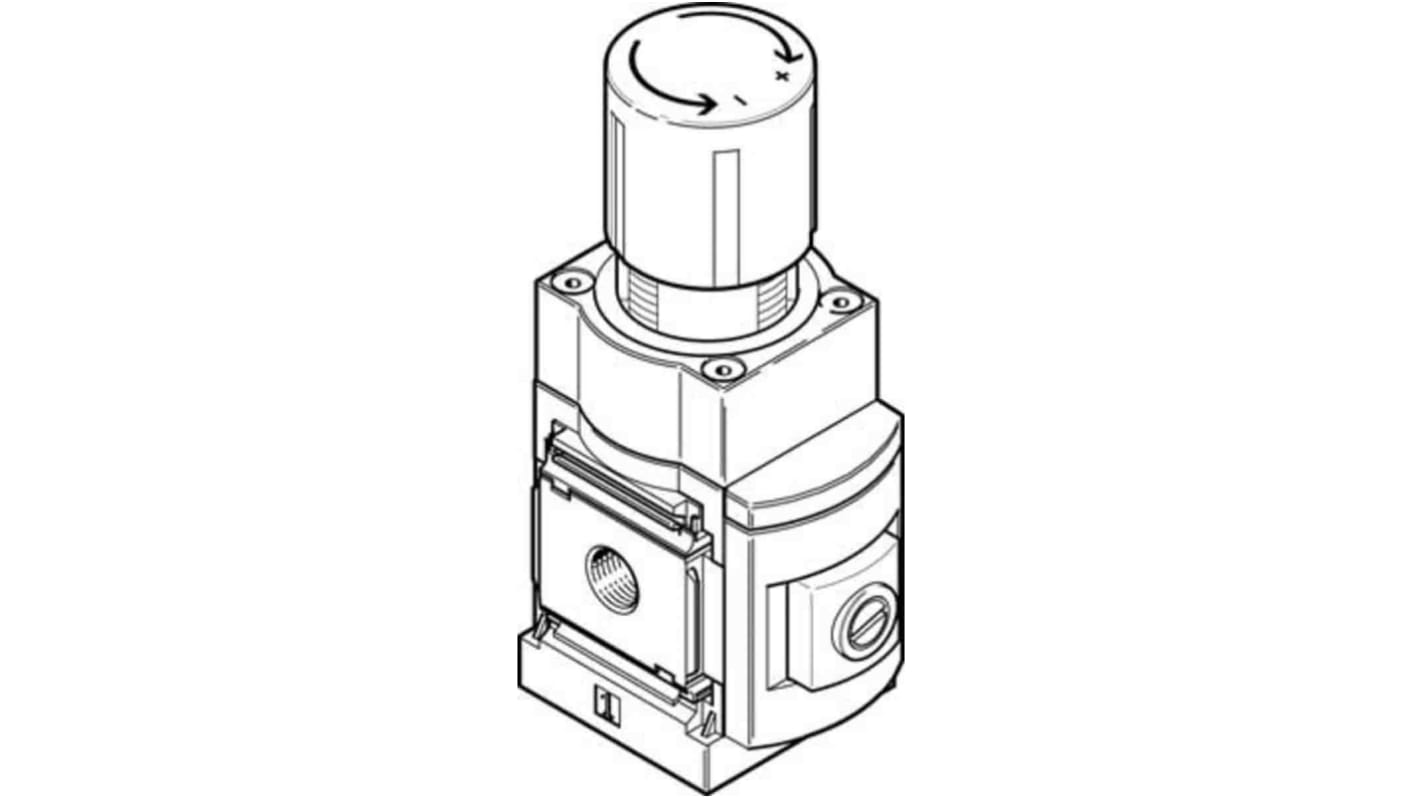

Festo MS Series Pneumatic Regulator G 1/2 G G

Bekijk deze categorie

Subtotaal (1 eenheid)*

€ 219,80

(excl. BTW)

€ 265,96

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Op voorraad
  • 5 stuk(s) klaar voor verzending
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 +€ 219,80

*prijsindicatie

RS-stocknr.:
202-2063
Fabrikantnummer:
MS6-LRP-1/2-D4-A8
Fabrikant:
Festo
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Festo

Product Type

Pneumatic Regulator

Inlet Connection Type

Pneumatic

Inlet Connection Size

G 1/2

Series

MS

Outlet Connection Size

G 1/2

Inlet Thread Standard

G

Maximum Operating Pressure

14 bar

Minimum Operating Temperature

-10°C

Material

Aluminium, Nitrile Rubber

Outlet Thread Standard

G

Maximum Operating Temperature

60°C

Standards/Approvals

Conforms to RoHS, ISO8573-1:2010 (7:4:4)

Land van herkomst:
HU

Festo Series MS Pneumatic Regulator, 2.5 Bar Maximum Outlet Pressure, 2300 L/min Typical Flow Rate - MS6-LRP-1/2-D4-A8, Numeric Part Number: 538022


This pneumatic regulator is designed to provide precise control of compressed air in various applications. It features robust G 1/2 pneumatic connections and operates effectively within a pressure regulation range of 0.05 bar to 2.5 bar. With a maximum input pressure of 14 bar and a typical flow rate of 2300 L/min, this product is an essential component in the automation and mechanical industries.

Features & Benefits


• Provides adjustable pressure regulation for optimal settings

• Equipped with a rotary knob for easy adjustments

• Supports secondary venting to enhance efficiency

Applications


• Used in industrial automation for pressure control

• Utilised in pneumatic systems requiring consistent outlet pressure

• Ideal for involving compressed air and inert gases

• Employed in environments with moderate corrosion resistance requirements

What is the maximum outlet pressure this unit can achieve?


The unit can achieve a maximum outlet pressure of 2.5 bar, ensuring reliable performance across various applications.

How does the rotary knob enhance usability?


The rotary knob features a detent for precise adjustments, allowing users to set the desired pressure with confidence and ease.

Can this regulator accommodate digital pressure gauges?


Yes, it is prepared for both analogue and digital pressure displays, making it versatile for monitoring pressure in different setups.

What operating conditions should be considered for this regulator?


It operates effectively within a temperature range of -10°C to +60°C, which is suitable for diverse industrial environments.

Is this regulator suitable for lubricated operation?


No, this model is not designed for lubricated operation; it functions optimally with compressed air and inert gases only.
