Norgren Double Acting Acting Rodless Actuator 32 mm Bore 1400 mm
- RS-stocknr.:
- 220-3821
- Fabrikantnummer:
- M/146232/M/1400
- Fabrikant:
- Norgren
Subtotaal (1 eenheid)*
€ 2.828,26
(excl. BTW)
€ 3.422,19
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 17 augustus 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 2.828,26 |
*prijsindicatie
- RS-stocknr.:
- 220-3821
- Fabrikantnummer:
- M/146232/M/1400
- Fabrikant:
- Norgren
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Norgren | |
| Product Type | Rodless Actuator | |
| Bore Size | 32mm | |
| Stroke Length | 1400mm | |
| Connection Thread Standard | G | |
| Series | M/146200 | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 8 bar | |
| Body Material | Aluminium | |
| Mounting Orientation | Universal | |
| Cushioning Type | Adjustable | |
| Port Gender | Female | |
| Guide Type | Precision Roller | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 80°C | |
| Length | 1.64m | |
| Height | 80mm | |
| Standards/Approvals | ATEX | |
| Width | 98mm | |
| Port Thread Size | 1/4 in G | |
| Alles selecteren | ||
|---|---|---|
Merk Norgren | ||
Product Type Rodless Actuator | ||
Bore Size 32mm | ||
Stroke Length 1400mm | ||
Connection Thread Standard G | ||
Series M/146200 | ||
Action Type Double Acting | ||
Maximum Operating Pressure 8 bar | ||
Body Material Aluminium | ||
Mounting Orientation Universal | ||
Cushioning Type Adjustable | ||
Port Gender Female | ||
Guide Type Precision Roller | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 80°C | ||
Length 1.64m | ||
Height 80mm | ||
Standards/Approvals ATEX | ||
Width 98mm | ||
Port Thread Size 1/4 in G | ||
Vrijgesteld
- Land van herkomst:
- DE

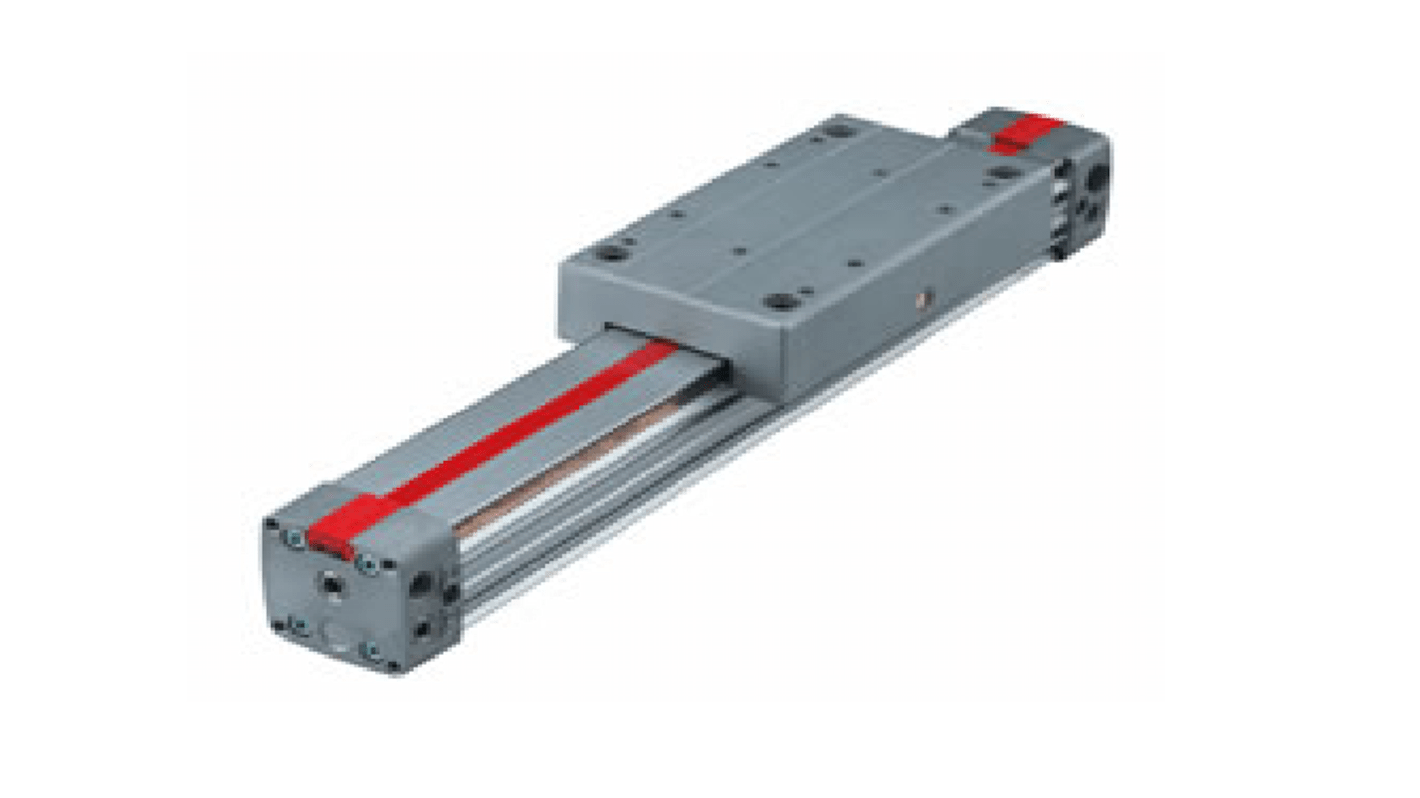

The IMI Norgren Lintra series pneumatic rodless actuator has 32mm cylinder diameter with precision roller guide. The rodless actuator operates as double acting with magnetic piston with adjustable cushioning.
New lightweight design extrusion with universal mounting grooves
Proven and patented sealing system
Dust protection as standard
Interchangeability with series M/46000
