SMC Vacuum Filter - ZM Series, 30 μm, 1/8 in Port Connection
- RS-stocknr.:
- 175-9951
- Fabrikantnummer:
- ZM132H-Q
- Fabrikant:
- SMC
Bulkkorting beschikbaar
Bekijk bulkkortingSubtotaal (1 eenheid)*
€ 101,75
(excl. BTW)
€ 123,12
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- Plus verzending 1 stuk(s) vanaf 07 september 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 101,75 |
| 5 - 9 | € 98,78 |
| 10 + | € 95,67 |
*prijsindicatie
- RS-stocknr.:
- 175-9951
- Fabrikantnummer:
- ZM132H-Q
- Fabrikant:
- SMC
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | SMC | |
| Product Type | Vacuum Filter | |
| Port Size | 1/8 in | |
| Filtration Size | 30μm | |
| Series | ZM | |
| Maximum Flow Rate | 66L/min | |
| Housing Material | Die Cast Aluminium | |
| Maximum Operating Temperature | 50°C | |
| Maximum Operating Pressure | 0.7 Mpa | |
| Minimum Operating Temperature | 5°C | |
| Minimum Operating Pressure | 0.2MPa | |
| Standards/Approvals | RoHS | |
| Alles selecteren | ||
|---|---|---|
Merk SMC | ||
Product Type Vacuum Filter | ||
Port Size 1/8 in | ||
Filtration Size 30μm | ||
Series ZM | ||
Maximum Flow Rate 66L/min | ||
Housing Material Die Cast Aluminium | ||
Maximum Operating Temperature 50°C | ||
Maximum Operating Pressure 0.7 Mpa | ||
Minimum Operating Temperature 5°C | ||
Minimum Operating Pressure 0.2MPa | ||
Standards/Approvals RoHS | ||
- Land van herkomst:
- JP

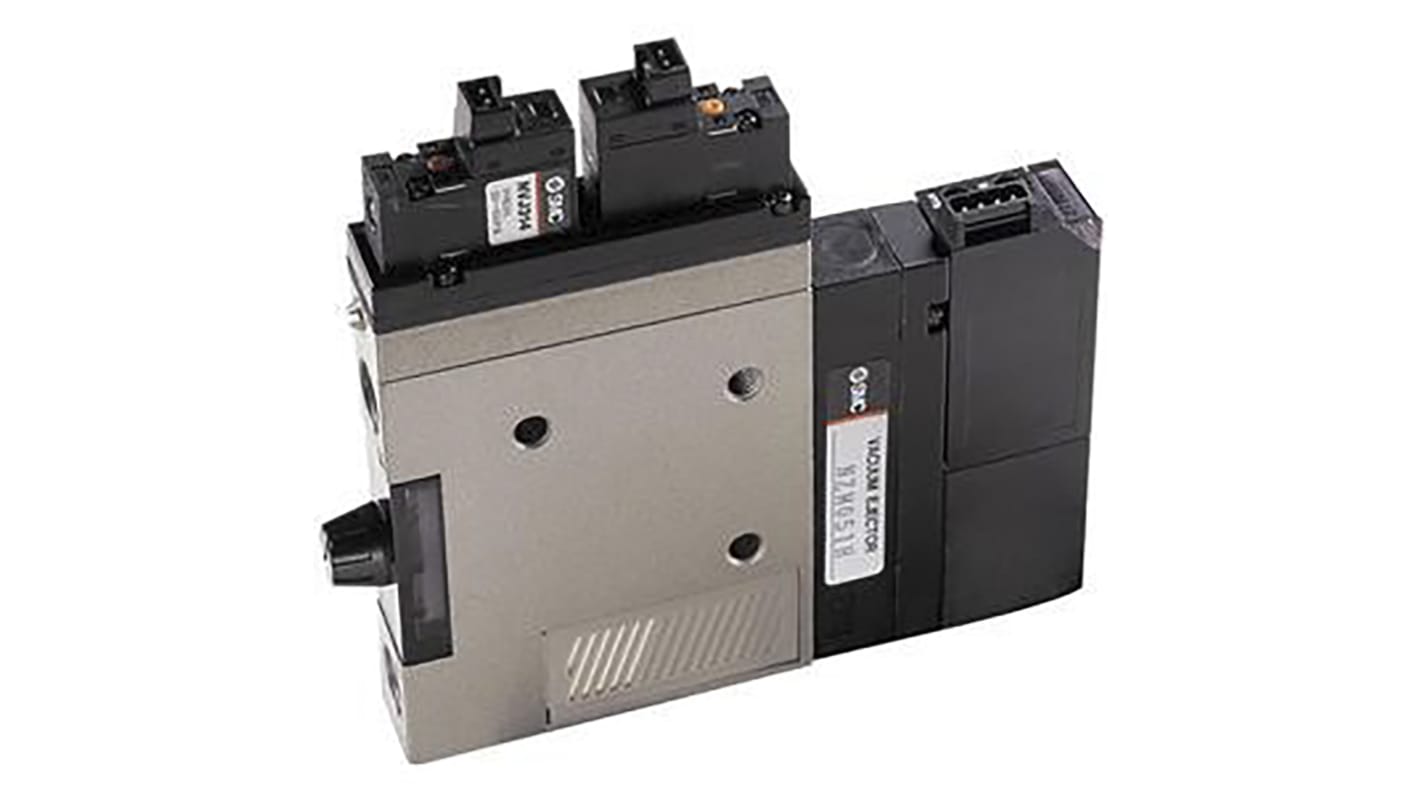

The ZM series is an all-in-one vacuum generator, complete with internal suction filter, exhaust silencer, supply and break valve, and vacuum switch. Its dual-stage nozzle design increases suction flow by 40% over single-stage generators, yet its compact size makes it suitable for many different applications. ZM series generators also boast a strong vacuum break pressure for quick cycle times. Available in standalone or manifold configurations.
Vacuum ejector with valve and switch (metric)
Nozzle diameters: .5mm, .7mm, 1mm, 1.3mm and 1.5mm
Body styles with or without valve
Various lead wire and connector options
Various vacuum switch models
Various vacuum switch electrical entry options
