Xylem Flojet Diaphragm Air Operated Positive Displacement Pump, 19L/min, 8.27 bar
- RS-stocknr.:
- 667-9116
- Fabrikantnummer:
- G575215A
- Fabrikant:
- Xylem Flojet
Bekijk deze categorie
10 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
69 op voorraad - levertijd is 3 à 5 werkdagen (UK-voorraad)
Prijs Each
€ 224,61
(excl. BTW)
€ 271,78
(incl. BTW)
| Aantal stuks | Per stuk |
| 1 + | € 224,61 |
- RS-stocknr.:
- 667-9116
- Fabrikantnummer:
- G575215A
- Fabrikant:
- Xylem Flojet
Datasheets
Wetgeving en compliance
- Land van herkomst:
- CN
Productomschrijving

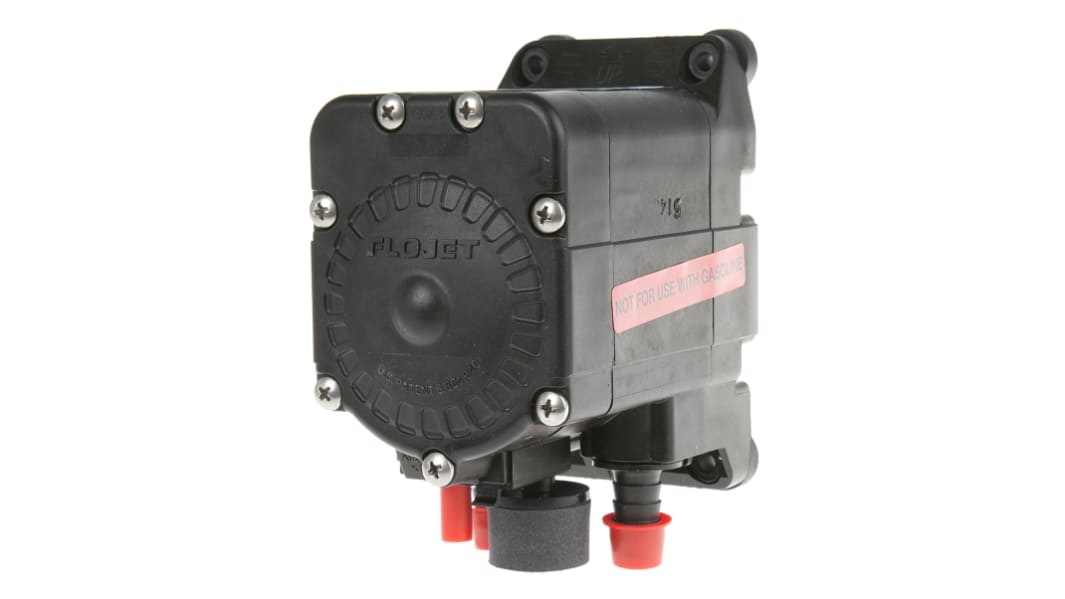

Xylem Flojet Positive Displacement Pump
The Xylem Flojet compact air-operated double diaphragm positive displacement pump is suitable for water and light water-based chemicals. Its maximum flow rate is 21L/min. It is capable of air or CO2 drive pressures up to 100PSI (6.9bar).
It has Santoprene check valves with Hastelloy springs and EPDM seal ring.
Warning:
Flojet G70K202A (RS stock no. 763-2480) is ATEX approved. Unless specified otherwise, do not use any other Flojet pump with volatile low flash point solvents or fuels, flammable liquids or in an explosive atmosphere.
It has Santoprene check valves with Hastelloy springs and EPDM seal ring.
Warning:
Flojet G70K202A (RS stock no. 763-2480) is ATEX approved. Unless specified otherwise, do not use any other Flojet pump with volatile low flash point solvents or fuels, flammable liquids or in an explosive atmosphere.
Features and Benefits
Maximum Fluid temperature is 49°C
Patented shuttle valve eliminates stalling
Run dry capability
Self-primes up to 4.5m
Capable of passing solids up to 3.2mm diameter
Corrosion-resistant materials capable of handling a wide range of chemicals
Other elastomers available
Large exhaust silencer
Ease of Installation with all quick disconnect ports
Other port sizes are available
Patented shuttle valve eliminates stalling
Run dry capability
Self-primes up to 4.5m
Capable of passing solids up to 3.2mm diameter
Corrosion-resistant materials capable of handling a wide range of chemicals
Other elastomers available
Large exhaust silencer
Ease of Installation with all quick disconnect ports
Other port sizes are available
Certifications
CE certified
NSF approved
NSF approved
Specificaties
| Kenmerk | Waarde |
| Pump Type | Diaphragm |
| Drive Type | Air |
| Maximum Flow Rate | 19L/min |
| Maximum Working Pressure | 8.27 bar |
| Input Connection | 1/2 in Hose Barb, 1/4 in Hose Barb |
| Output Connection | 1/2 in Hose Barb, 1/4 in Hose Barb |
| Series | G5752 |
| Body Material | PP |
| Wetted Materials | Hastelloy C, Kalrez, PP, Santoprene, Viton |
| Output Thread Standard or Connection Type | Hose Barb |
| Input Connection Size | 1/2 in, 1/4in |
| Output Connection Size | 1/2 in, 1/4in |
| Input Thread Standard or Connection Type | Hose Barb |
