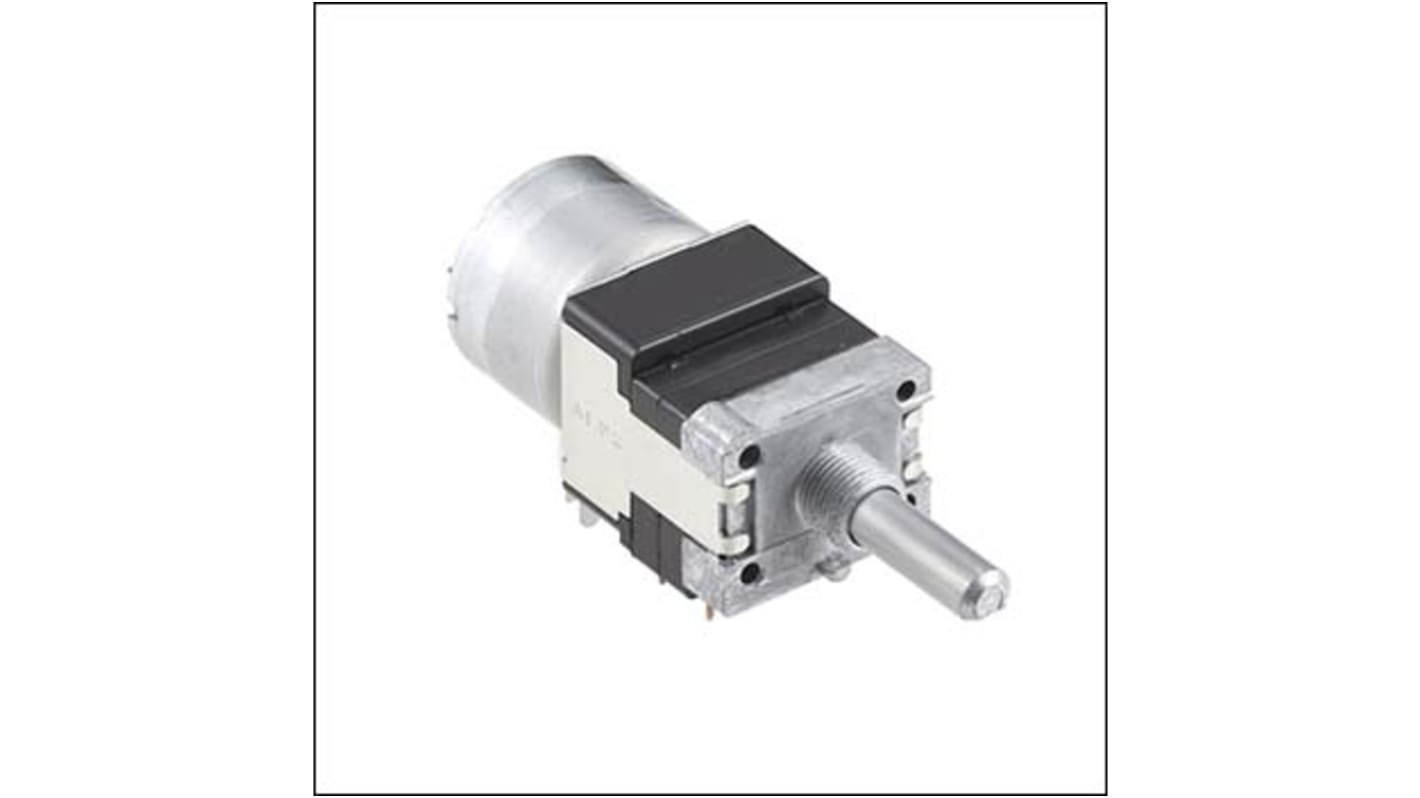

Alps Alpine RK 168 100 kΩ Rotary Potentiometer 1-Turns 4-Gang Through Hole, RK16814MGA0K
- RS-stocknr.:
- 154-8223
- Fabrikantnummer:
- RK16814MGA0K
- Fabrikant:
- Alps Alpine
Momenteel niet beschikbaar
We weten niet of dit artikel weer voorradig zal zijn, het wordt door de fabrikant stopgezet.
- RS-stocknr.:
- 154-8223
- Fabrikantnummer:
- RK16814MGA0K
- Fabrikant:
- Alps Alpine
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Alps Alpine | |
| Potentiometer Type | Rotary | |
| Product Type | Potentiometer | |
| Maximum Resistance | 100kΩ | |
| Shaft Diameter | 6mm | |
| Number of Gangs | 4 | |
| Packaging | Tray | |
| Number of Turns | 1 | |
| Power Rating | 0.05W | |
| Electrical Taper | Logarithmic | |
| Mount Type | Through Hole | |
| Termination Style | Solder | |
| Shaft Length | 25mm | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 70°C | |
| Length | 25mm | |
| Standards/Approvals | RoHS | |
| Mounting Hole Diameter | 1 mm, 1.2 mm | |
| Series | RK 168 | |
| Actuator Type | Flatted Shaft | |
| Tolerance ± | 20% | |
| Alles selecteren | ||
|---|---|---|
Merk Alps Alpine | ||
Potentiometer Type Rotary | ||
Product Type Potentiometer | ||
Maximum Resistance 100kΩ | ||
Shaft Diameter 6mm | ||
Number of Gangs 4 | ||
Packaging Tray | ||
Number of Turns 1 | ||
Power Rating 0.05W | ||
Electrical Taper Logarithmic | ||
Mount Type Through Hole | ||
Termination Style Solder | ||
Shaft Length 25mm | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 70°C | ||
Length 25mm | ||
Standards/Approvals RoHS | ||
Mounting Hole Diameter 1 mm, 1.2 mm | ||
Series RK 168 | ||
Actuator Type Flatted Shaft | ||
Tolerance ± 20% | ||
- Land van herkomst:
- JP
Remote controllable and available in a wide variety of products.
