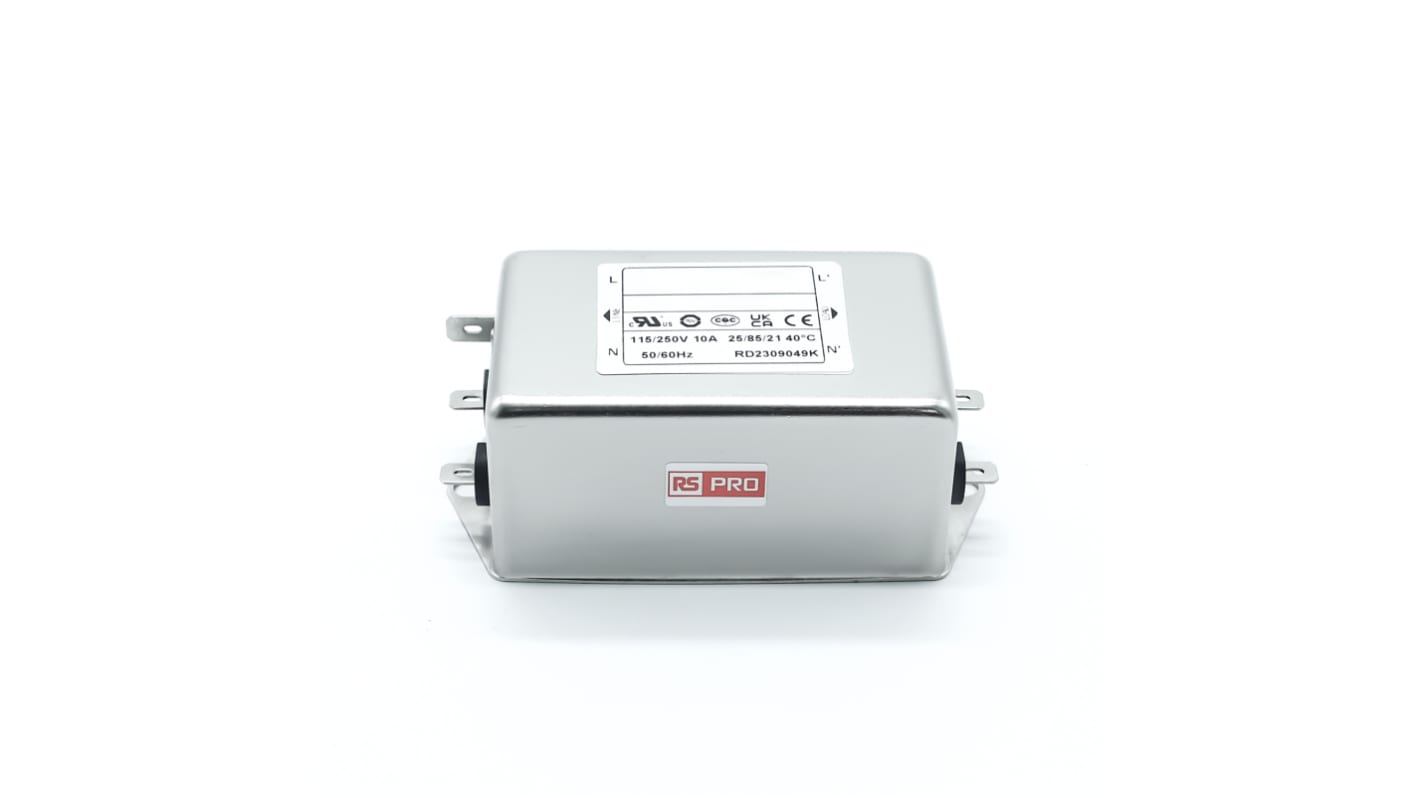

RS PRO 10 A 250V ac 50Hz, 60 Hz, Chassis Mount Power Line Filter, Fast-On 1 Phase

A high quality EMI filter for the reduction of electromagnetic interference through power lines protecting sensitive connected equipment.;Designed for chassis mounting and built to a Compact size the power line filter is Ideal for areas with limited space and is easily connected using the fast on 6.3 x 0.8mm.;Featuring an IP40 rating suitable for indoor use and a wide operating range of -25°C to 85°C the EMI power line filter is hardwearing and is Ideal for general purpose filtering. ;Suitable for use with a wide range of general electrical and electronic equipment, sensitive medical equipment, new energy, office and communication equipment.

Power line EMI filter;Voltage rated to 115/250 Vac;Current rated to 10A;Chassis mount;Inductance of 2 x 4.5mH;Capacitance of 1.0uF; 4700pF;Hipot Rating 2250vdc (line to ground), 500Vdc (line to line);IP40 rated;Fast on 6.3 x 0.8mm;Dimensions of 156 x 57 x 45mm;Mounting hole space 143mm;Weight of 620g

Standards and Approvals: UL, TUV, CQC, CE, UKCA, Reach, RoHS, UL EN 60939, UL1283; CSA C22.2 No.8; GB/T 15287; GB/T 15288-1994
