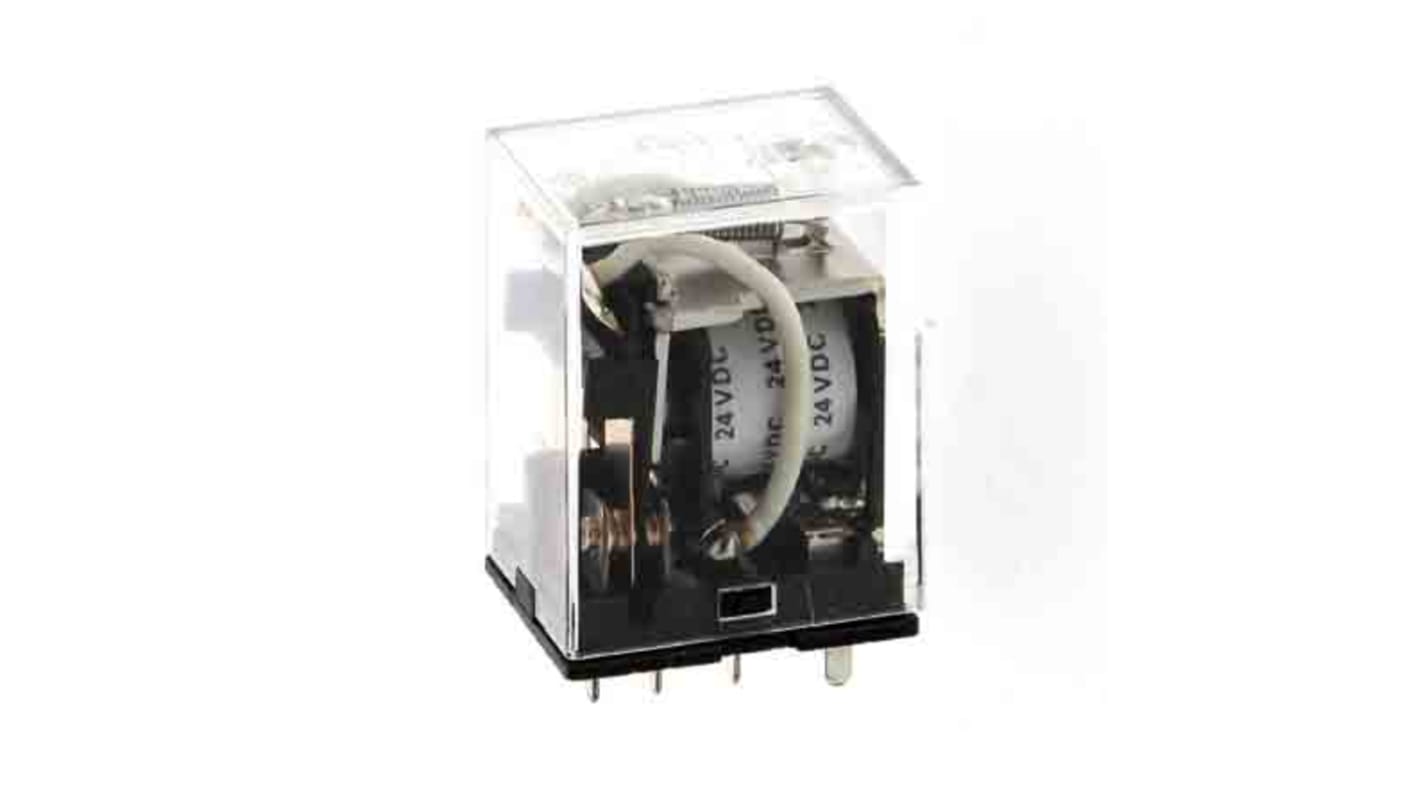

Omron Relay, 220V ac, 240 V ac Coil, 10A Switching Current, DPDT

RS-stocknr.:: 215-7274
Artikelnummer Distrelec:: 301-37-294
Fabrikantnummer:: LY2I4N 220/240VAC
Fabrikant:: Omron

Omron Relay, 220V ac, 240 V ac Coil, 10A Switching Current, DPDT

Subtotaal (1 eenheid)*

€ 16,38

(excl. BTW)

€ 19,82

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

34 stuk(s) klaar voor verzending vanaf een andere locatie

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 16,38

*prijsindicatie

RS-stocknr.:: 215-7274
Artikelnummer Distrelec:: 301-37-294
Fabrikantnummer:: LY2I4N 220/240VAC
Fabrikant:: Omron

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Omron
	Product Type	Relay
	Coil Voltage	220, 240V ac
	Contact Configuration	DPDT
	Series	LY
	Terminal Type	Plug-In
	Switching Current	10A
	Switching AC Voltage	250V ac
	Switching DC Voltage	125V dc
	Minimum Operating Temperature	-25°C
	Coil Resistance	18790Ω
	Maximum Operating Temperature	55°C
	Standards/Approvals	CE, CSA, RoHS, UL
	Width	21.5mm
	Length	36mm
	Coil Power	1.1VA
	Height	28mm
	Contact Material	Silver Alloy
	Contact Resistance	50mΩ

	Alles selecteren
	Merk Omron
	Product Type Relay
	Coil Voltage 220, 240V ac
	Contact Configuration DPDT
	Series LY
	Terminal Type Plug-In
	Switching Current 10A
	Switching AC Voltage 250V ac
	Switching DC Voltage 125V dc
	Minimum Operating Temperature -25°C
	Coil Resistance 18790Ω
	Maximum Operating Temperature 55°C
	Standards/Approvals CE, CSA, RoHS, UL
	Width 21.5mm
	Length 36mm
	Coil Power 1.1VA
	Height 28mm
	Contact Material Silver Alloy
	Contact Resistance 50mΩ

Datasheet - LY2I4N 220/240VAC

Omron Series LY Relay, 220V AC Coil Voltage, DPDT Contact Configuration - LY2I4N 220/240VAC

This relay is a Compact electromechanical switching device designed for control and isolation tasks in industrial and commercial electrical systems. It operates from AC control voltages and provides a double-pole, double-throw contact arrangement to switch separate circuits while maintaining a small footprint suitable for panel-mounted or socketed installations.

Features and Benefits:

• 220V AC Coil power consumption of 1.1VA for efficient drive requirements
• Coil resistance of 18,790Ω enabling predictable Coil current draw
• DPDT contact arrangement for independent switching of two circuits
• Contact material AgSnIn for Durable conductive performance
• Rated switching current 10A for handling moderate mains loads
• Switching voltage capacity up to 250VAC and 125VDC for AC/DC versatility

Applications

• Suitable for industrial automation control panels requiring multiple circuit switching
• Used for machine control where independent circuit isolation is needed
• Ideal for retrofit installations using plug-in sockets in electrical cabinets
• Used with control systems that require AC Coil actuation at 220/240VAC

What Coil voltages can I apply to it?

It accepts AC Coil voltages of 220V AC and 240V AC, so it is compatible with common mains-derived control supplies.

How does the Terminal arrangement support installation methods?

Termination options include plug-in connection for socket mounting and solder terminals for fixed wiring, offering flexibility in assembly and maintenance.

What environmental limits should be observed during operation?

The unit is specified to operate between -25°C minimum and 55°C maximum ambient temperatures

installations should ensure ambient conditions remain within this range.

Which approvals indicate suitability for industrial use?

It carries CE, CSA, RoHS and UL approvals, indicating conformity with several international safety and material-restriction standards.
