Schneider Electric Harmony Series Contact Block, 500V, 1 NO/1 NC
- RS-stocknr.:
- 220-5238
- Artikelnummer Distrelec:
- 304-10-526
- Fabrikantnummer:
- XESD1181
- Fabrikant:
- Schneider Electric
Momenteel niet beschikbaar
We weten niet of dit item nog op voorraad komt, RS is van plan dit binnenkort uit ons assortiment te halen.
- RS-stocknr.:
- 220-5238
- Artikelnummer Distrelec:
- 304-10-526
- Fabrikantnummer:
- XESD1181
- Fabrikant:
- Schneider Electric
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Schneider Electric | |
| Block Type | Contact Block | |
| Product Type | Contact Block | |
| Voltage | 500V | |
| Series | Harmony | |
| Contact Configuration | 1 NO/1 NC | |
| Current Rating | 10A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | CSA C22.2 No 14 EN 60947-5-1 IEC 60947-5-1 | |
| Length | 890.00mm | |
| Height | 71mm | |
| Width | 0.720m | |
| Alles selecteren | ||
|---|---|---|
Merk Schneider Electric | ||
Block Type Contact Block | ||
Product Type Contact Block | ||
Voltage 500V | ||
Series Harmony | ||
Contact Configuration 1 NO/1 NC | ||
Current Rating 10A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals CSA C22.2 No 14 EN 60947-5-1 IEC 60947-5-1 | ||
Length 890.00mm | ||
Height 71mm | ||
Width 0.720m | ||
- Land van herkomst:
- CZ

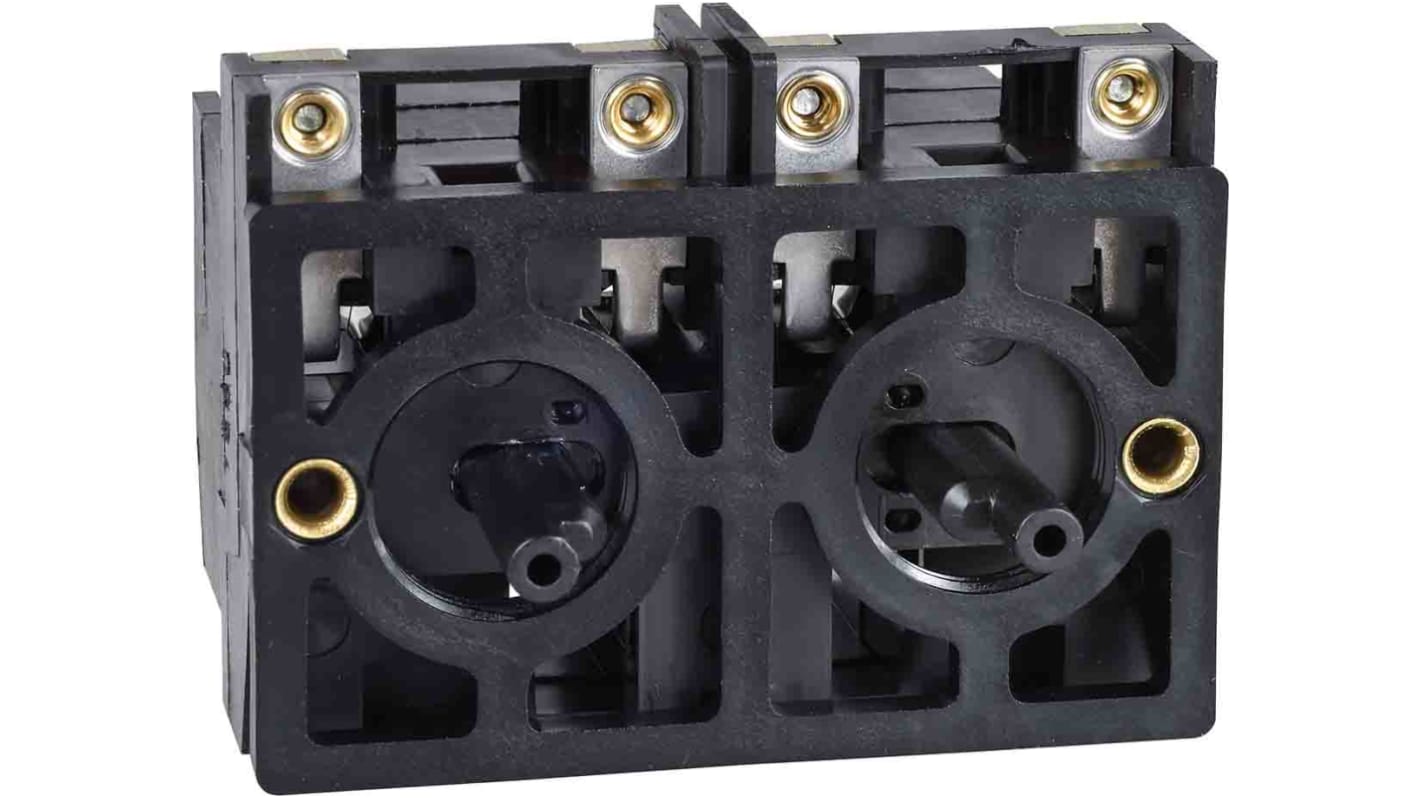

Schneider Electric XESD1181
This contact block allows fast and easy replacement and configuration of your push buttons and selector switches It protects operators from unexpected contact with live circuits It is easily installed and replaced on XACM and XACB pendant control stations and connects to control circuits with simple screw-clamp connections
The Schneider electric contact block is an electrical circuit connector that is used to turn on (make) or turn off (break) an electrical circuit. Contact blocks are commonly found connected to switches, relays and circuit breakers, once these devices are active the contact block allows current to flow and complete a circuit.
REACh free of SVHC
Mercury free
Warranty 18 months
