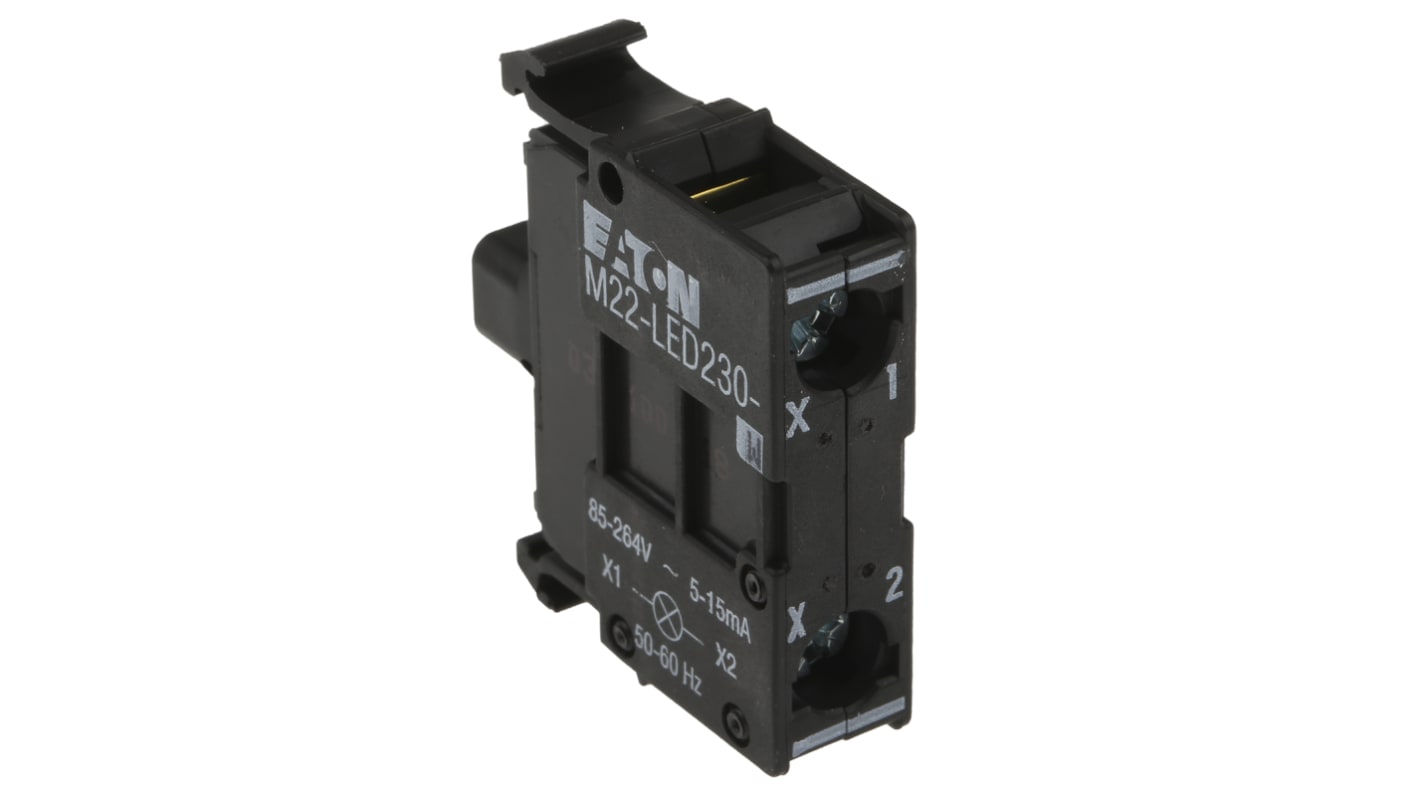

Eaton M22 Series Light Block, 264V ac, White Light

RS-stocknr.:: 399-3731
Artikelnummer Distrelec:: 304-10-378
Fabrikantnummer:: 216563 M22-LED230-W
Fabrikant:: Eaton

Eaton M22 Series Light Block, 264V ac, White Light

Bulkkorting beschikbaar

Subtotaal (1 eenheid)*

€ 17,37

(excl. BTW)

€ 21,02

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

201 stuk(s) klaar voor verzending
5 stuk(s) klaar voor verzending vanaf een andere locatie
Plus verzending 157 stuk(s) vanaf 28 april 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 - 4	€ 17,37
5 - 11	€ 16,84
12 +	€ 16,30

*prijsindicatie

RS-stocknr.:: 399-3731
Artikelnummer Distrelec:: 304-10-378
Fabrikantnummer:: 216563 M22-LED230-W
Fabrikant:: Eaton

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Eaton
	Block Type	Light Block
	Product Type	Light Block
	Voltage	264V ac
	Illumination Colour	White
	Series	M22
	Illumination Type	LED
	LED Included	Yes
	Terminal Type	Screw
	Body/Fixing Collar Included	No
	Current Rating	15mA
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	70°C
	Length	71mm
	Standards/Approvals	UL 508, IEC/EN 60947-5, IEC 60947-5-1, CSA-C22.2 No. 94-91, CSA-C22.2 No. 14-05, CE
	Width	30mm
	Height	37.2mm

	Alles selecteren
	Merk Eaton
	Block Type Light Block
	Product Type Light Block
	Voltage 264V ac
	Illumination Colour White
	Series M22
	Illumination Type LED
	LED Included Yes
	Terminal Type Screw
	Body/Fixing Collar Included No
	Current Rating 15mA
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 70°C
	Length 71mm
	Standards/Approvals UL 508, IEC/EN 60947-5, IEC 60947-5-1, CSA-C22.2 No. 94-91, CSA-C22.2 No. 14-05, CE
	Width 30mm
	Height 37.2mm

Land van herkomst:: DE

Eaton Light Block, LED Status Indicator, 15mA Current Rating - M22Series - 216563 M22-LED230-W

Boost safety in your control and automation processes with this light block from Eaton. You can pair it with a contact block (such as 399-3567) and push button (such as 399-2946) from the M22 series when you're putting together a customised assembly for your setup. The light block has a white LED to alert operators of the machine or process status in manufacturing and electronics environments.

Features & Benefits

• Wide operating temperature range between -40°C and +80°C when closed for use in extreme conditions

• IP20-rated for robust protection against accidental touch and objects larger than 12mm

• Screw terminals and front fixing for simple installation

• Modular design and compatibility with other M22 parts to save space

• Mechanical shock resistance of up to 30g protects against light impacts

Where is the light from the block emitted?

The block emits light via an integrated LED. When housed inside a push button unit, the light shines through, illuminating the button head to indicate the on/off status of the equipment.

Is a fixing collar included?

No, this is part of the compatible contact block unit (399-3567).

Note

Eaton formerly known as Moeller
