Schneider Electric Harmony Series Push Button Switch, Spring Return to Centre, Panel, 22 mm Cutout, 1 NC, IP66, IP67,

Bekijk alle Push Button Switches

Subtotaal (1 eenheid)*

€ 19,80

(excl. BTW)

€ 23,96

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Op voorraad
  • Plus verzending 32 stuk(s) vanaf 13 april 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 +€ 19,80

*prijsindicatie

RS-stocknr.:
276-2501
Fabrikantnummer:
XB4BA22
Fabrikant:
Schneider Electric
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Schneider Electric

Switch Operation

Spring Return to Centre

Product Type

Push Button Switch

Illuminated

No

Series

Harmony

Panel Cutout Size

22 mm

Mount Type

Panel

Contact Configuration

1 NC

Terminal Type

Screw

IP Rating

IP66, IP67, IP69

Actuator Style

Button

Minimum Operating Temperature

-40°C

Contact DC Voltage

600V dc

Contact AC Voltage

600V ac

Maximum Operating Temperature

70°C

Length

52mm

Width

30mm

Height

47mm

Standards/Approvals

CSA C22.2 Nr. 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508

Switch Contact Current

3A

Vrijgesteld

Land van herkomst:
FR

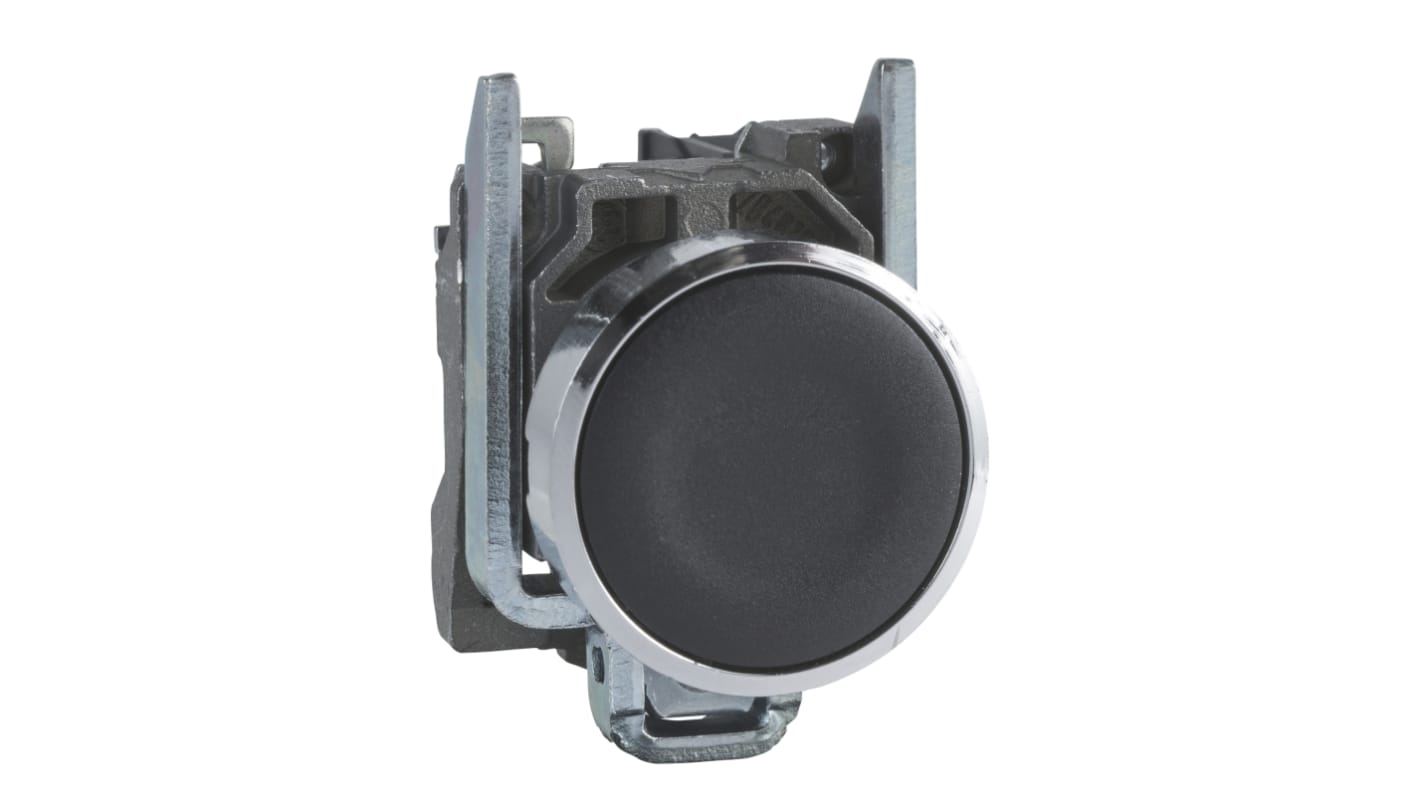

The Schneider Electric Push Button featuring a black flush design and a durable metal construction, this 22mm push button ensures a sleek and reliable interface for control panels and machinery. Equipped with a spring return mechanism for responsive operation, it is configured with 1 Normally Closed contact for effective control. The unmarked surface provides flexibility for customization or additional labelling based on specific application requirements.

Mercury free

RoHS compliant

Green Premium product

Toxic heavy metal free

IK06 conforming to IEC 50102

IP66 conforming to IEC 60529
