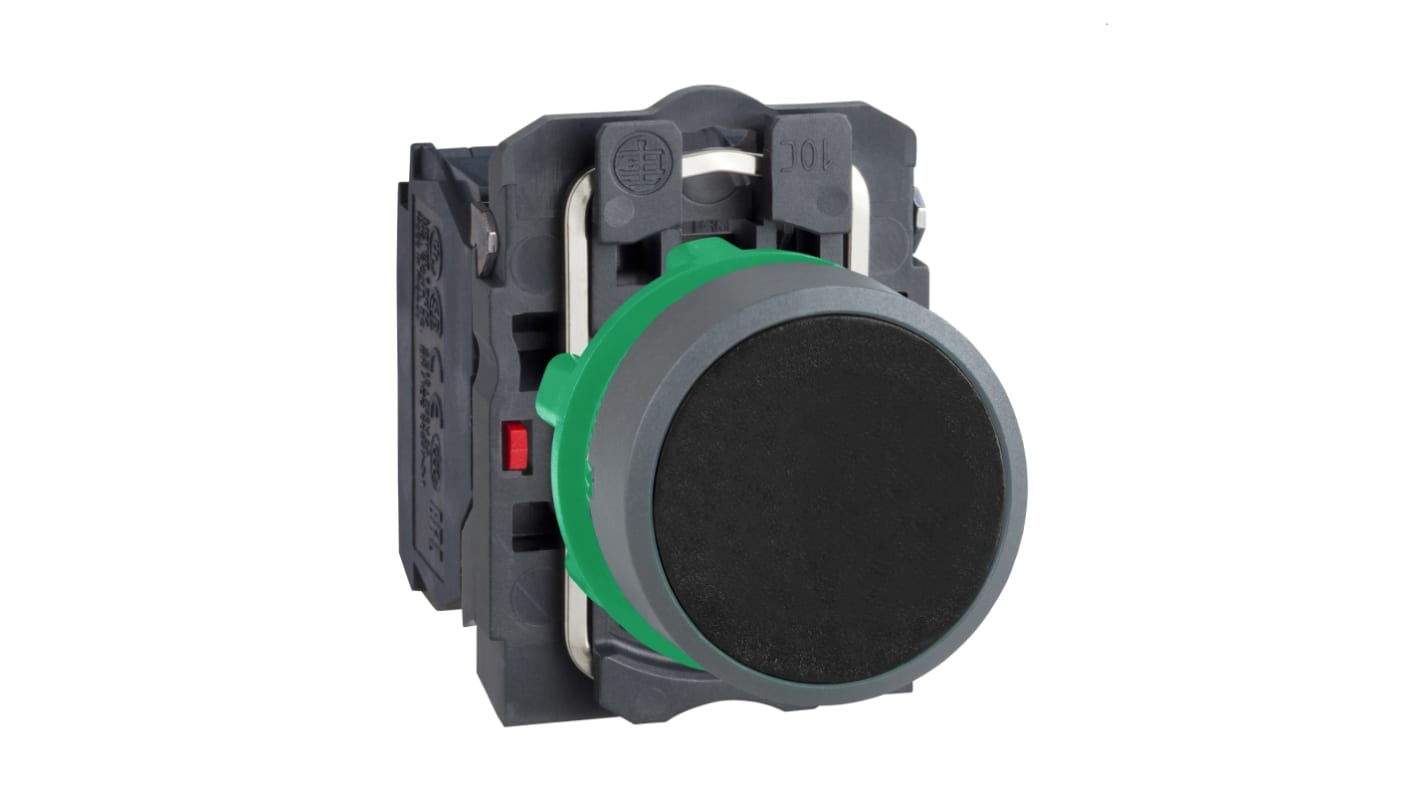

Schneider Electric Harmony Series Push Button Switch, Spring Return, Panel, 22 mm Cutout, SPDT, IP66, IP67, 600 V dc 240
- RS-stocknr.:
- 276-2536
- Fabrikantnummer:
- XB5AA25C0
- Fabrikant:
- Schneider Electric
Subtotaal (1 eenheid)*
€ 17,85
(excl. BTW)
€ 21,60
(incl. BTW)
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 17,85 |
*prijsindicatie
- RS-stocknr.:
- 276-2536
- Fabrikantnummer:
- XB5AA25C0
- Fabrikant:
- Schneider Electric
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Schneider Electric | |
| Switch Operation | Spring Return | |
| Product Type | Push Button Switch | |
| Actuator Colour | Black | |
| Illuminated | No | |
| Panel Cutout Size | 22 mm | |
| Series | Harmony | |
| Mount Type | Panel | |
| Contact Configuration | SPDT | |
| Terminal Type | Screw | |
| IP Rating | IP66, IP67 | |
| Contact DC Voltage | 600V dc | |
| Actuator Style | Button | |
| Minimum Operating Temperature | -40°C | |
| Contact AC Voltage | 240V ac | |
| Maximum Operating Temperature | 70°C | |
| Length | 52mm | |
| Height | 42mm | |
| Standards/Approvals | CSA, RoHS, REACH | |
| Width | 30mm | |
| Switch Contact Current | 3A | |
| Alles selecteren | ||
|---|---|---|
Merk Schneider Electric | ||
Switch Operation Spring Return | ||
Product Type Push Button Switch | ||
Actuator Colour Black | ||
Illuminated No | ||
Panel Cutout Size 22 mm | ||
Series Harmony | ||
Mount Type Panel | ||
Contact Configuration SPDT | ||
Terminal Type Screw | ||
IP Rating IP66, IP67 | ||
Contact DC Voltage 600V dc | ||
Actuator Style Button | ||
Minimum Operating Temperature -40°C | ||
Contact AC Voltage 240V ac | ||
Maximum Operating Temperature 70°C | ||
Length 52mm | ||
Height 42mm | ||
Standards/Approvals CSA, RoHS, REACH | ||
Width 30mm | ||
Switch Contact Current 3A | ||
Vrijgesteld
- Land van herkomst:
- FR
The Schneider Electric Harmony XB5 push button features a plastic fixing collar and silver alloy contact material.
Operational temperature -40 to 70°C
Class II conforming to IEC 60536
