Allen Bradley 800F Series Push Button, Panel Mount, 22mm Cutout, SPST
- RS-stocknr.:
- 511-7709
- Fabrikantnummer:
- 800FM-E4MX01 A
- Fabrikant:
- Allen Bradley
Bekijk alle Push Button Switches
36 op voorraad - levertijd is 1 werkdag(en).
Prijs Each
€ 18,32
(excl. BTW)
€ 22,17
(incl. BTW)
Aantal stuks | Per stuk |
1 + | € 18,32 |
- RS-stocknr.:
- 511-7709
- Fabrikantnummer:
- 800FM-E4MX01 A
- Fabrikant:
- Allen Bradley
N.v.t.
- Land van herkomst:
- CN
Wetgeving en compliance
N.v.t.
- Land van herkomst:
- CN
Productomschrijving

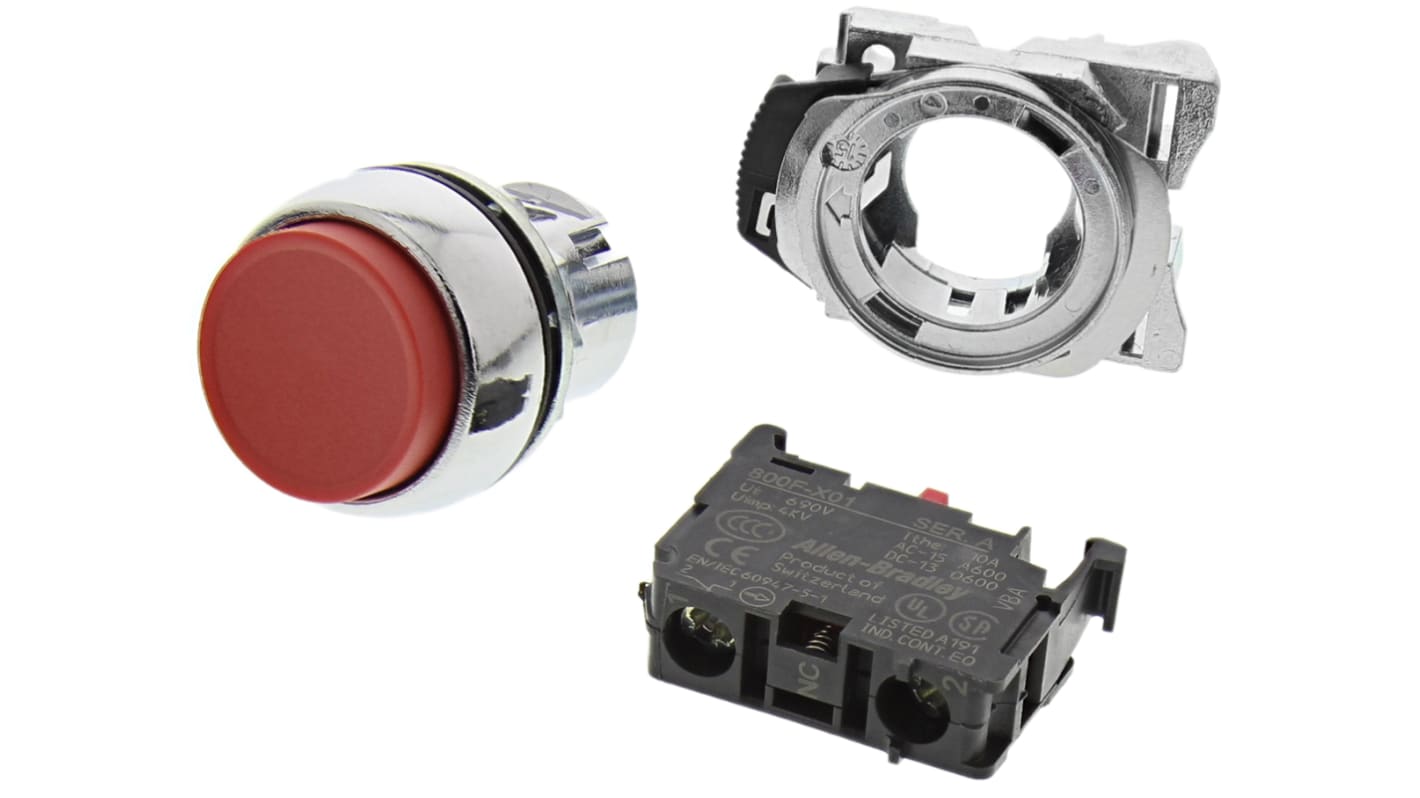

Pushbutton Assemblies
Screw terminals to contact blocks
Fitted with metal self locking latch
Red button fitted with extend cap
Fitted with metal self locking latch
Red button fitted with extend cap
800F Series Pushbuttons & Indicators
The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.
The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:
The 800F range covers the following products:
Illuminated/non-illuminated push-buttons and mushroom operators
Pilot lights LED operated
Selector, toggle, multi-function and key selector switches (2 and 3 positions)
Custom laser engraving for pushbutton caps and diffusers
Single turn potentiometer assembly
Emergency stop push-buttons including the unique self-monitoring contact block
Low front of panel profile
Selection of silicone boots are available
Plastic enclosures
Metal operators offer ruggedness and durability
Pilot lights LED operated
Selector, toggle, multi-function and key selector switches (2 and 3 positions)
Custom laser engraving for pushbutton caps and diffusers
Single turn potentiometer assembly
Emergency stop push-buttons including the unique self-monitoring contact block
Low front of panel profile
Selection of silicone boots are available
Plastic enclosures
Metal operators offer ruggedness and durability
Specificaties
Kenmerk | Waarde |
Push Button Colour | Red |
Mounting Type | Panel Mount |
Push Button Material | PBT/PC Blend |
Illuminated | No |
Push Button Style | Round |
Contact Configuration | SPST |
Panel Cut Out Diameter | 22mm |
Series | 800F |
Manufacturer Part No. | 800FM-E4MX01 A |
Terminal Type | Screw |
Minimum Operating Temperature | -25°C |
Maximum DC Voltage | 5V |
Maximum AC Voltage | 600V |
Maximum Operating Temperature | +70°C |
