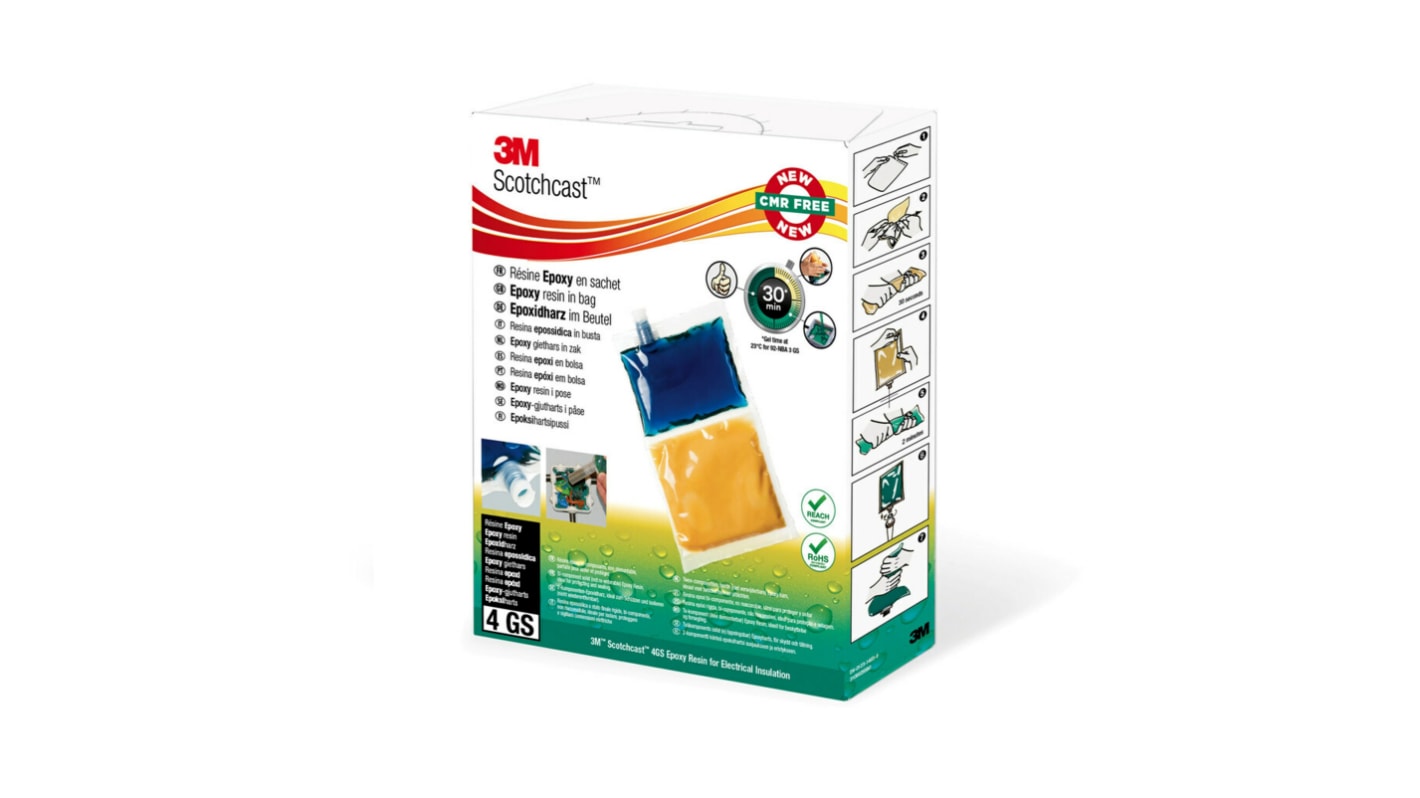

3M Scotchcast Resin 4 GS Yellow, Blue 90 ml Epoxy Resin Adhesive Box for Metal, Plastic

This epoxy resin adhesive provides a two-part bonding solution for demanding industrial environments. It cures to a solid compound suitable for joining or encapsulating components in automation, electronics, electrical and mechanical contexts, with formulation available in contrasting yellow and blue for Visual identification during application.

• Operates across -40°C to 110°C for wide thermal exposure
• Two-part mixing ratio 100:144 enables predictable mixing control
• 25min setting time reduces assembly throughput delays
• Compatible with metal and plastic to simplify joint selection
• Packaged as 90ml in a box for controlled storage and handling
• Formulation assessed to EN ISO 868 for material hardness reference

• Suitable for potting electrical joints exposed to varying temperatures
• Ideal for bonding metal brackets to plastic housings in assemblies
• Used with control hardware in automation systems requiring Durable joints
• Can be used for repair of mechanical parts where thermal cycling occurs

Combine the resin and hardener by weight using the 100:144 ratio and mix until uniform to ensure consistent cure kinetics.

The mixed compound begins to set at around 25 min, giving a limited working window for positioning before gelation.

The contrasting yellow and blue components aid Visual confirmation of distribution during dispensing and mixing.

Once cured, the adhesive maintains structural properties up to 110°C enabling use in high-temperature zones.
