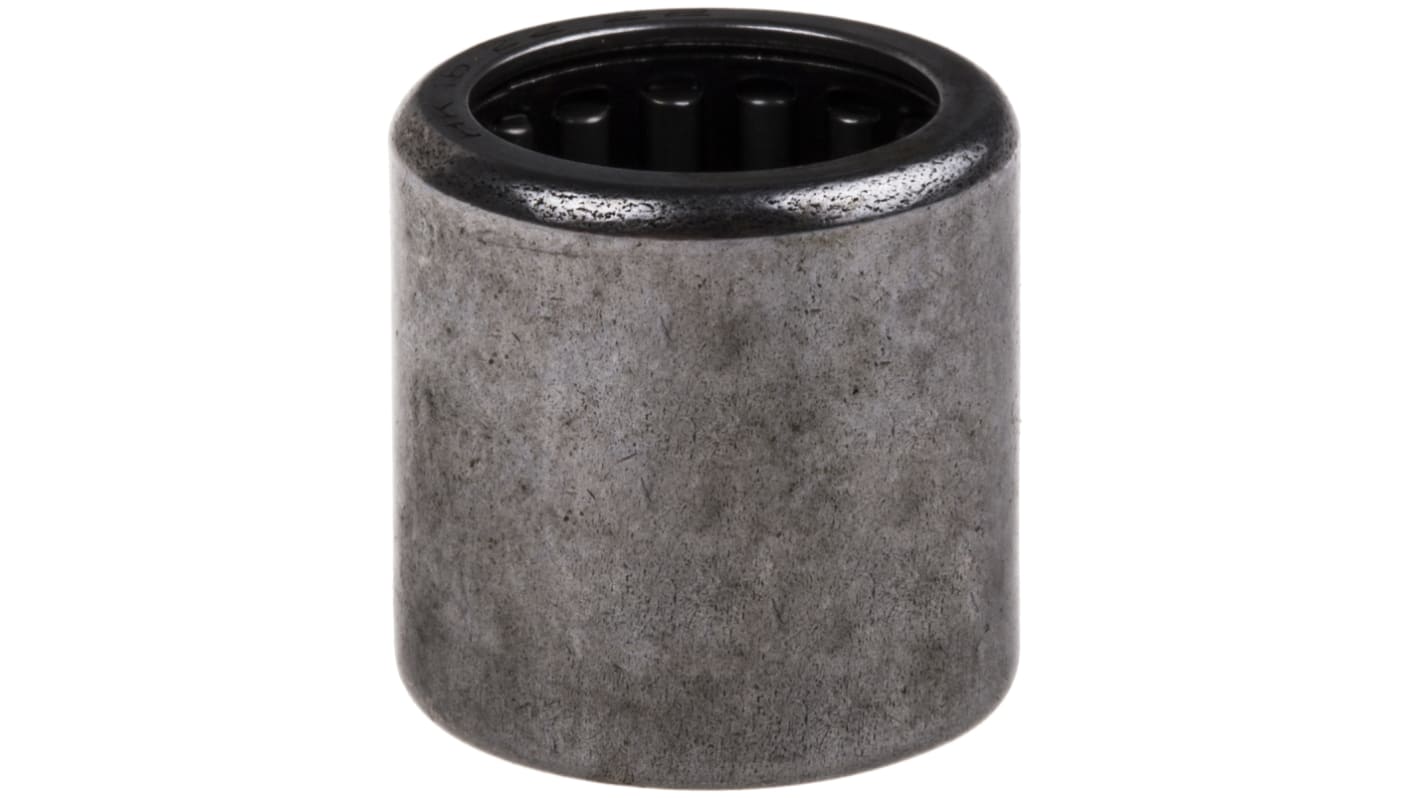

RS PRO HK 1622 16 mm ID Metric Roller Bearing Needle, 22 mm OD
- RS-stocknr.:
- 146-9297
- Fabrikantnummer:
- HK 1622
- Fabrikant:
- RS PRO
Bulkkorting beschikbaar
Bekijk bulkkortingSubtotaal (1 eenheid)*
€ 6,42
(excl. BTW)
€ 7,77
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- Plus verzending 64 stuk(s) vanaf 12 oktober 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 6,42 |
| 5 - 9 | € 6,28 |
| 10 + | € 6,18 |
*prijsindicatie
- RS-stocknr.:
- 146-9297
- Fabrikantnummer:
- HK 1622
- Fabrikant:
- RS PRO
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | RS PRO | |
| Product Type | Metric Roller Bearing | |
| Inside Diameter | 16mm | |
| Race Width | 22mm | |
| Bore Type | Parallel | |
| Cage Material | Steel | |
| Roller Material | Steel | |
| Limiting Speed | 16000rpm | |
| Static Load Rating | 19.6kN | |
| End Type | Open | |
| Outside Diameter | 22mm | |
| Maximum Speed - Grease | 10000rpm | |
| Standards/Approvals | No | |
| Number of Rows | 1 | |
| Dynamic Load Rating | 12.8kN | |
| Maximum Speed - Oil | 16000rpm | |
| Bearing Type | Needle | |
| Alles selecteren | ||
|---|---|---|
Merk RS PRO | ||
Product Type Metric Roller Bearing | ||
Inside Diameter 16mm | ||
Race Width 22mm | ||
Bore Type Parallel | ||
Cage Material Steel | ||
Roller Material Steel | ||
Limiting Speed 16000rpm | ||
Static Load Rating 19.6kN | ||
End Type Open | ||
Outside Diameter 22mm | ||
Maximum Speed - Grease 10000rpm | ||
Standards/Approvals No | ||
Number of Rows 1 | ||
Dynamic Load Rating 12.8kN | ||
Maximum Speed - Oil 16000rpm | ||
Bearing Type Needle | ||
Vrijgesteld
- Land van herkomst:
- CN
The RS PRO single row needle metric roller bearing is made of steel material having 16 mm inside diameter and 22 mm outside diameter. It has reference speed of 14000rpm and limiting speed of 16000rpm.
Parallel bore
19.6kN static load rating
12.8kN dynamic load rating
2.24kN fatigue limit load
22mm race width
open end
RS pro approved
