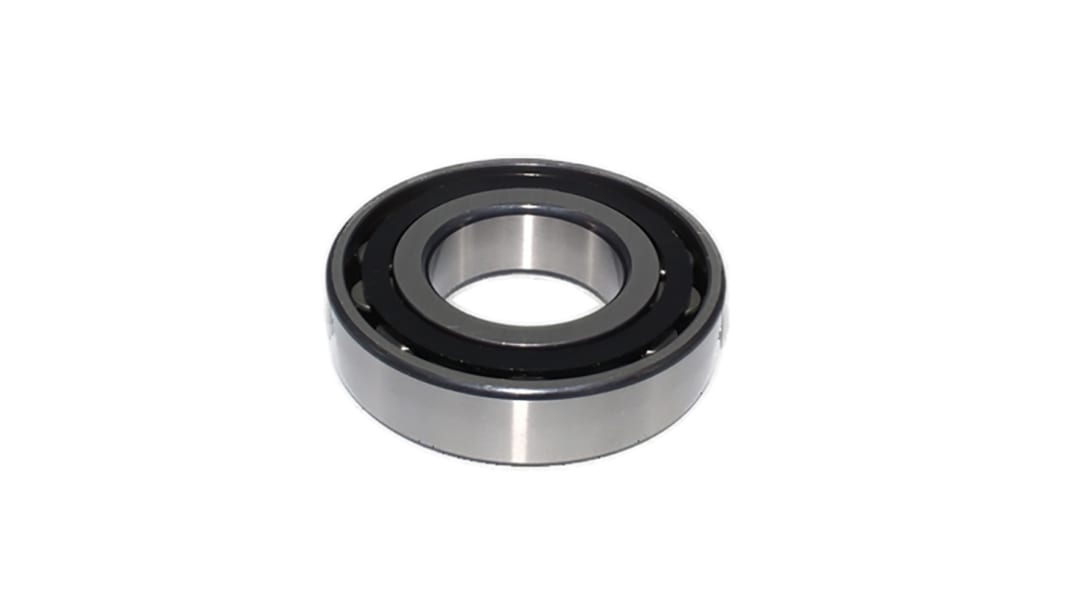

INA N205-E-XL-TVP2-C3 25 mm ID Roller Bearing, 52 mm OD
- RS-stocknr.:
- 194-7255
- Fabrikantnummer:
- N205-E-XL-TVP2-C3
- Fabrikant:
- INA
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 72,07
(excl. BTW)
€ 87,20
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Tijdelijk niet op voorraad
- Verzending vanaf 18 juni 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 72,07 |
| 5 - 9 | € 69,21 |
| 10 - 24 | € 67,76 |
| 25 + | € 66,32 |
*prijsindicatie
Better World
Ons Better World assortiment bevat producten die het u gemakkelijk maken om een groenere productkeuze te maken waarop u kunt vertrouwen. Klik hier voor meer informatie.
- RS-stocknr.:
- 194-7255
- Fabrikantnummer:
- N205-E-XL-TVP2-C3
- Fabrikant:
- INA
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | INA | |
| Product Type | Roller Bearing | |
| Inside Diameter | 25mm | |
| Race Width | 15mm | |
| Bore Type | Parallel | |
| Better World Product | Yes | |
| Standards/Approvals | No | |
| Static Load Rating | 27.5kN | |
| Outside Diameter | 52mm | |
| Better World Claim | Extended Product Life, Saves Energy | |
| End Type | Open | |
| Dynamic Load Rating | 34.5kN | |
| Alles selecteren | ||
|---|---|---|
Merk INA | ||
Product Type Roller Bearing | ||
Inside Diameter 25mm | ||
Race Width 15mm | ||
Bore Type Parallel | ||
Better World Product Yes | ||
Standards/Approvals No | ||
Static Load Rating 27.5kN | ||
Outside Diameter 52mm | ||
Better World Claim Extended Product Life, Saves Energy | ||
End Type Open | ||
Dynamic Load Rating 34.5kN | ||
Single row cylindrical roller bearings with cage are suitable where:
Bearing arrangements are subjected to very high radial loads
Not only high radial forces but also axial loads from one or both directions must be supported by the bearing position (semi-locating or locating bearing function)
Bearing arrangements must have very high rigidity
Axial displacements of the shaft relative to the housing must be compensated without constraint in the bearing (in the case of bearings with a non-locating or semi-locating bearing function)
High radial loads and very high speeds occur but the very high radial load carrying capacity of full complement cylindrical roller bearings is not required
The bearings should be separable (one bearing ring can be removed) for easier mounting
