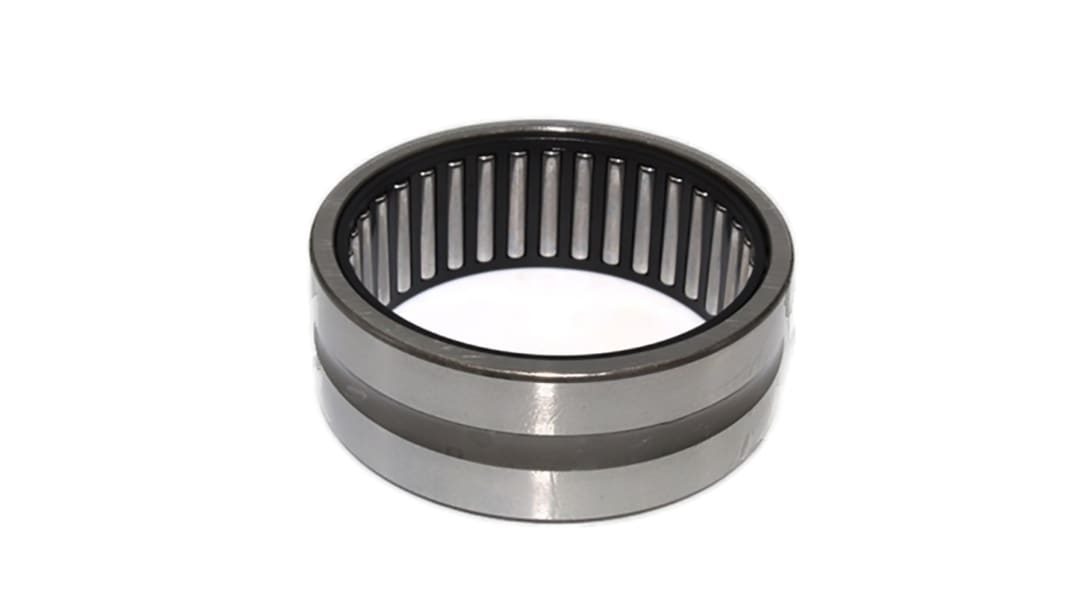

INA NK37/20-XL 47 mm ID Roller Bearing Needle, 47 mm OD
- RS-stocknr.:
- 194-7351
- Fabrikantnummer:
- NK37/20-XL
- Fabrikant:
- INA
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 34,36
(excl. BTW)
€ 41,58
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 75,00
Op voorraad
- 10 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 34,36 |
| 5 - 9 | € 32,96 |
| 10 - 24 | € 32,28 |
| 25 + | € 31,60 |
*prijsindicatie
- RS-stocknr.:
- 194-7351
- Fabrikantnummer:
- NK37/20-XL
- Fabrikant:
- INA
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | INA | |
| Product Type | Roller Bearing | |
| Inside Diameter | 47 mm | |
| Race Width | 20mm | |
| Bore Type | Parallel | |
| Outside Diameter | 47 mm | |
| Static Load Rating | 43.5kN | |
| Standards/Approvals | No | |
| Dynamic Load Rating | 28kN | |
| End Type | Open | |
| Bearing Type | Needle | |
| Alles selecteren | ||
|---|---|---|
Merk INA | ||
Product Type Roller Bearing | ||
Inside Diameter 47 mm | ||
Race Width 20mm | ||
Bore Type Parallel | ||
Outside Diameter 47 mm | ||
Static Load Rating 43.5kN | ||
Standards/Approvals No | ||
Dynamic Load Rating 28kN | ||
End Type Open | ||
Bearing Type Needle | ||
The Bearings can support high to very high radial forces
Are used when the load carrying capacity or accuracy of drawn cup needle roller bearings with open ends is no longer sufficient and the high load capacity of cylindrical roller bearings is not yet required
Can only support radial loads and, as a result, are highly suitable for use as non-locating bearings (they permit axial displacement of the shaft relative to the housing in the bearing)
Permit high speeds in spite of line contact
Compensate misalignments between the shaft and housing (aligning needle roller bearings)
Require only a very small radial design envelope, particularly if the bearing arrangement is designed without an inner ring
Are available in numerous sizes and designs
Result in particularly compact, cost-effective and economical bearing arrangements
