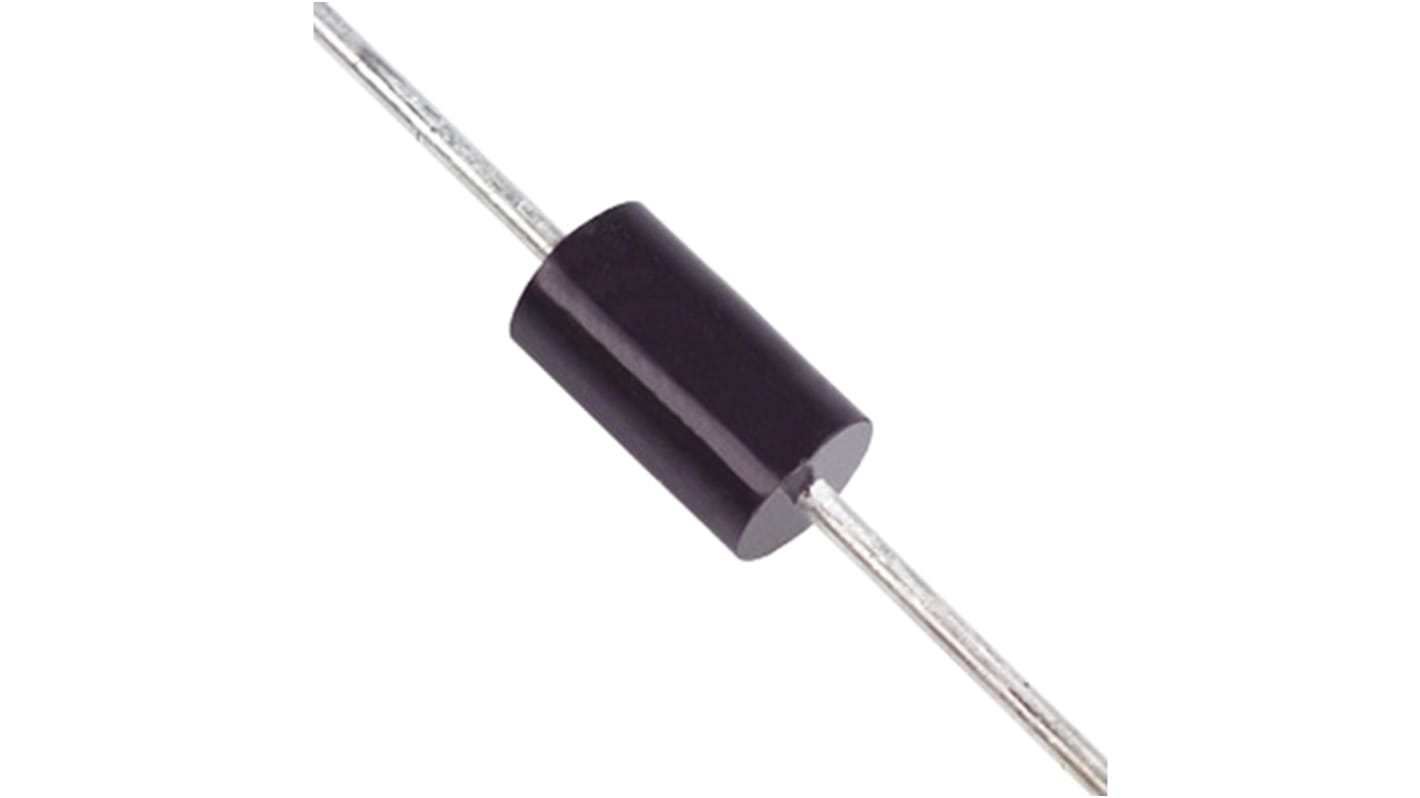

onsemi 100 V 3 A Diode Switching 2-Pin DO-201AD

Bekijk deze categorie

Subtotaal (1 verpakking van 300 eenheden)*

€ 57,90

(excl. BTW)

€ 70,20

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Op voorraad
  • 900 stuk(s) klaar voor verzending
  • Plus verzending 2.700 stuk(s) vanaf 22 april 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
Per verpakking*
300 +€ 0,193€ 57,90

*prijsindicatie

RS-stocknr.:
649-1395
Fabrikantnummer:
1N5401G
Fabrikant:
onsemi
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

onsemi

Mount Type

Through Hole

Product Type

Diode

Package Type

DO-201AD

Maximum Continuous Forward Current If

3A

Peak Reverse Repetitive Voltage Vrrm

100V

Diode Configuration

Single

Series

1N5401

Rectifier Type

Switching

Pin Count

2

Minimum Operating Temperature

-65°C

Maximum Forward Voltage Vf

1V

Peak Reverse Current Ir

10μA

Peak Non-Repetitive Forward Surge Current Ifsm

200A

Maximum Operating Temperature

150°C

Diameter

5.3 mm

Height

5.3mm

Length

9.5mm

Standards/Approvals

RoHS

Width

5.3 mm

Automotive Standard

No

Vishay 1N5400-1N5408 General Purpose Plastic Rectifiers


From Vishay, 1N5400-1N5408 are a range of general purpose rectifiers. With a moulded epoxy body, this range of rectifiers have a DO-201AD package size.

Features and Benefits:


• Capable of managing high forward surges.

• Low forward voltage drop.

• Low leakage current.

• Solder dip at +245 °C for a maximum of 10 seconds.

• Flame retardant to UL94 V-O.

• > 500 ns standard recovery.

• Wide operating temperature range of -50 °C to +150 °C.

• Matte tin plated leads, solderable per J-STD-002 and JESD 22-B102.

• A coloured band indicates the cathode end.

Product applications:


1N5400-1N5408 rectifiers are ideal for general purpose rectification in converters, inverters, freewheeling diodes and power supplies.

Diodes and Rectifiers, Vishay Semiconductor
