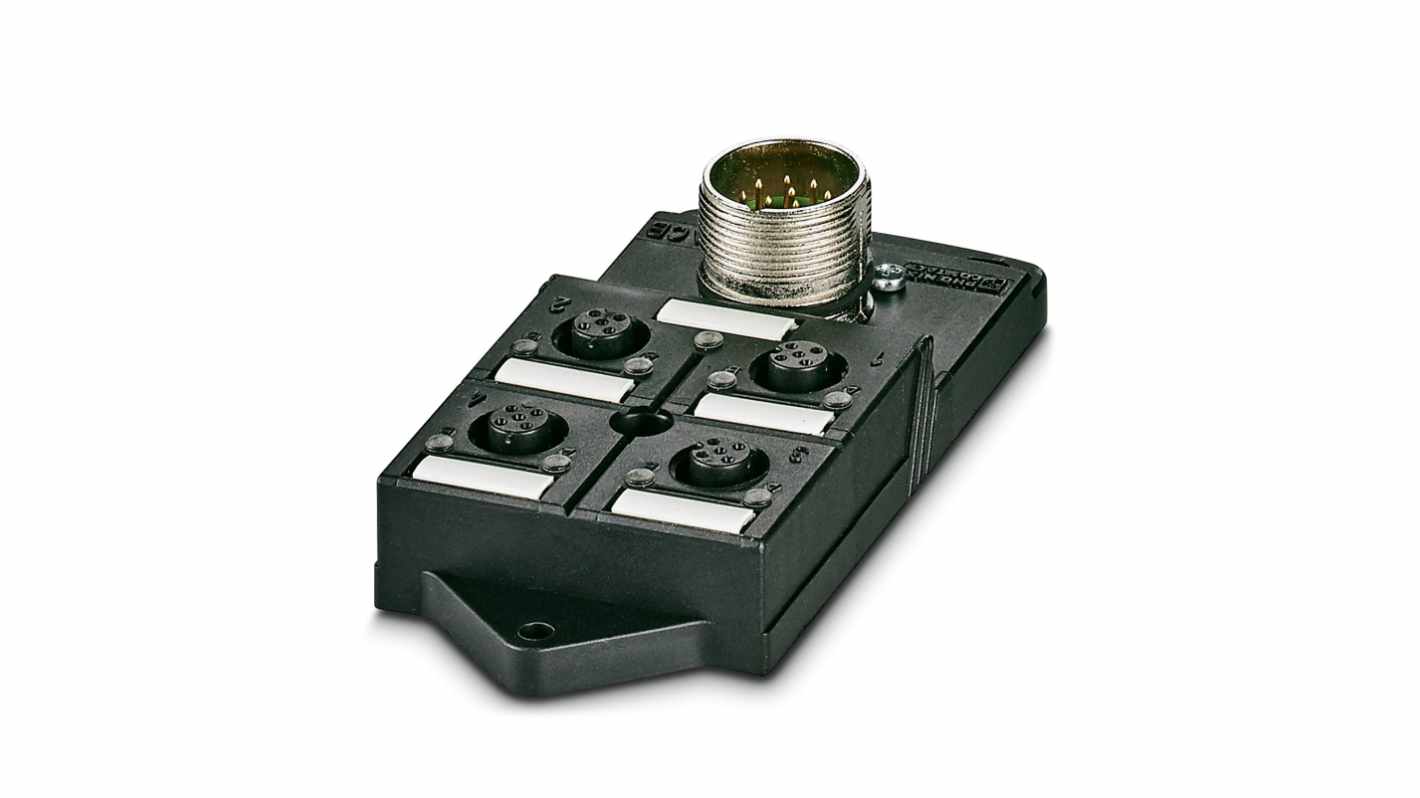

Phoenix Contact SACB Series Distribution Unit, 4 Port, M12
- RS-stocknr.:
- 282-083
- Fabrikantnummer:
- 1692404
- Fabrikant:
- Phoenix Contact
Niet beschikbaar
RS heeft dit product niet meer op voorraad.
- RS-stocknr.:
- 282-083
- Fabrikantnummer:
- 1692404
- Fabrikant:
- Phoenix Contact
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Phoenix Contact | |
| Product Type | Distribution Unit | |
| Inlet Connection Type | Cable | |
| Number of Ports | 4 | |
| Maximum Operating Voltage | 30V dc | |
| Series | SACB | |
| Interface Type | M12 | |
| Housing Material | Polybutylene Terephthalate | |
| IP Rating | IP65, IP67 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | ANSI/ESD S20.20:2021 | |
| Minimum Operating Voltage | 24V | |
| Number of Ways | 4 | |
| Alles selecteren | ||
|---|---|---|
Merk Phoenix Contact | ||
Product Type Distribution Unit | ||
Inlet Connection Type Cable | ||
Number of Ports 4 | ||
Maximum Operating Voltage 30V dc | ||
Series SACB | ||
Interface Type M12 | ||
Housing Material Polybutylene Terephthalate | ||
IP Rating IP65, IP67 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals ANSI/ESD S20.20:2021 | ||
Minimum Operating Voltage 24V | ||
Number of Ways 4 | ||
- Land van herkomst:
- DE
The Phoenix Contact Distributor box is designed for efficient and secure connections in standard applications, boasting an innovative M12 socket connection method. With its robust, moulded housing, this product provides a high degree of protection, making it ideal for demanding environments.
Moulded housing ensures durability and protection in harsh environments
Quick and easy diagnostics help maintain operational efficiency
Sealing elements prevent dust and moisture ingress for enhanced performance
Local diagnostics provide clear visual indicators of supply voltage
Compact dimensions promote space-saving installations
