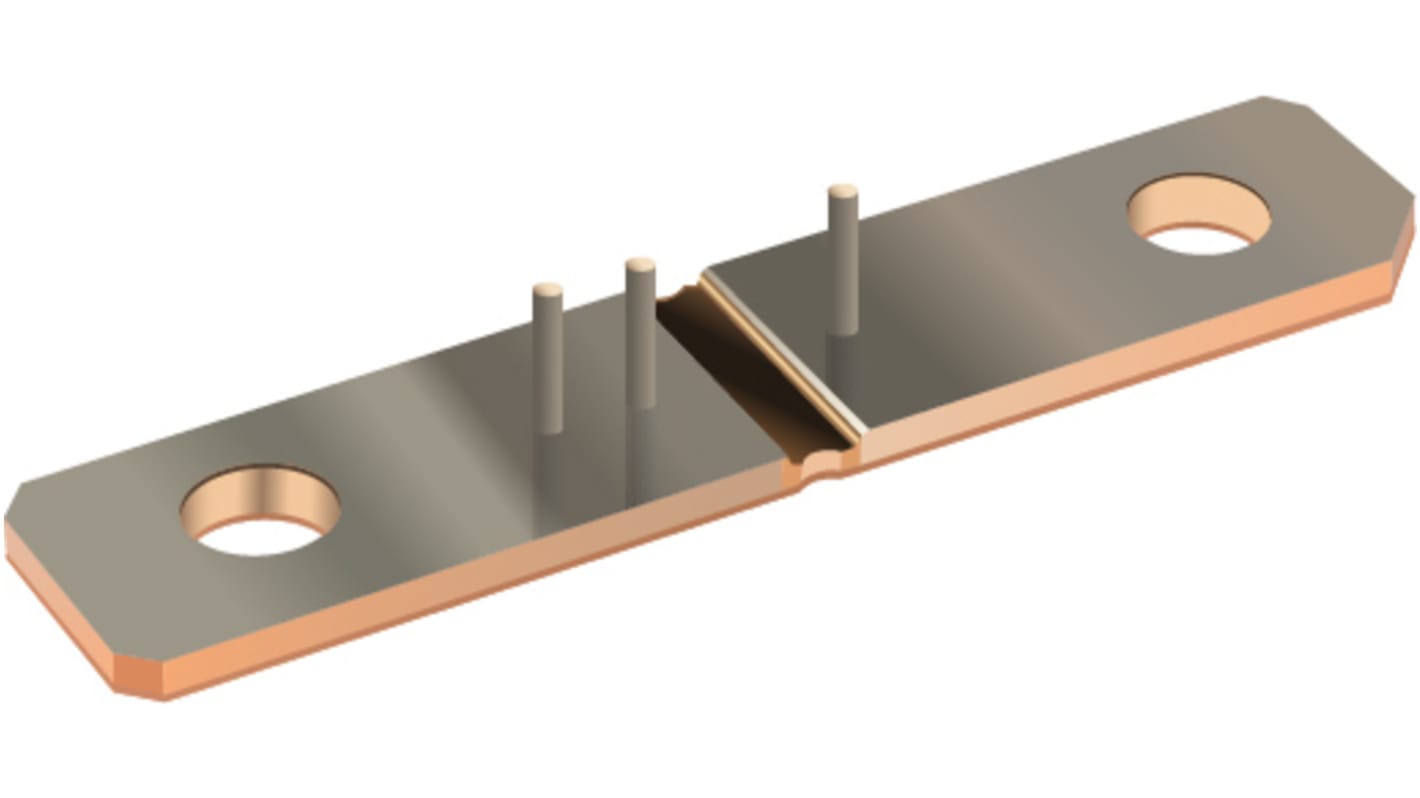

Bourns Plate Shunt, 600 A Max 60 mV, 5 % Accuracy

Bekijk alle Shunts
Momenteel niet beschikbaar
Sorry, we weten niet wanneer dit weer voorradig zal zijn.
RS-stocknr.:
262-9139
Fabrikantnummer:
CSM2F-8518-L100J21
Fabrikant:
Bourns
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Bourns

Product Type

Shunt

Maximum Current

600A

Output Voltage

60 mV

Shunt Type

Plate

Accuracy

5 %

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

170°C

Standards/Approvals

UL, ISO/TS 16949

Series

CSM2F-8518

Land van herkomst:
CR
The Bourns CSM2F-8518 series High power shunt resistor comes with sense pins and tinned terminals. It can be used in different types of applications such as battery management systems, current sensing for hybrid and electric vehicles, current sensing in bus bars, current sensing in welding equipment, etc. The shunt offers a resistance of 100 μΩ and has a resistance tolerance of ±5 %. The operating temperature ranges from -40 °C to +170 °C and the temperature coefficient of resistance is ±150 ppm/°C. It is a AEC-Q200 and RoHS compliant product.

Up to 36 W permanent power

Excellent long-term stability

High pulse power rating

Maximum fastening torque of 25 Nm
