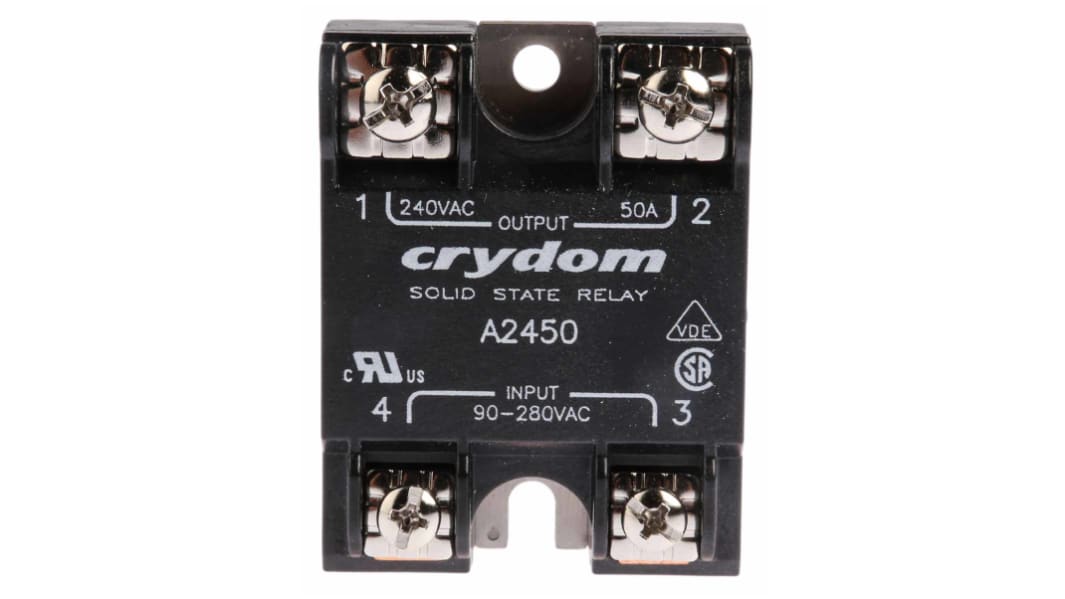

Sensata / Crydom 1 Series Solid State Relay, 50 A Load, Panel Mount, 280 Vrms Load, 280Vrms Control
- RS-stocknr.:
- 352-531
- Artikelnummer Distrelec:
- 300-49-155
- Fabrikantnummer:
- A2450
- Fabrikant:
- Sensata / Crydom
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 67,51
(excl. BTW)
€ 81,69
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 75,00
Op voorraad
- 88 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 67,51 |
| 5 - 9 | € 64,14 |
| 10 - 24 | € 60,76 |
| 25 - 49 | € 57,38 |
| 50 + | € 54,00 |
*prijsindicatie
- RS-stocknr.:
- 352-531
- Artikelnummer Distrelec:
- 300-49-155
- Fabrikantnummer:
- A2450
- Fabrikant:
- Sensata / Crydom
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Sensata / Crydom | |
| Product Type | Solid State Relay | |
| Maximum Load Current | 50A | |
| Mount Type | Panel | |
| Maximum Load Voltage | 280Vrms | |
| Minimum Load Voltage | 24Vrms | |
| Maximum Control Voltage | 280Vrms | |
| Minimum Control Voltage | 90Vrms | |
| Series | 1 | |
| Terminal Type | Screw | |
| Switching Function | Zero Voltage Switching | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | RoHS | |
| Height | 23mm | |
| Width | 22.6 mm | |
| Length | 58.4mm | |
| Capacitance | 8pF | |
| Off State Leakage Current | 1mA | |
| Output Type | SCR | |
| Alles selecteren | ||
|---|---|---|
Merk Sensata / Crydom | ||
Product Type Solid State Relay | ||
Maximum Load Current 50A | ||
Mount Type Panel | ||
Maximum Load Voltage 280Vrms | ||
Minimum Load Voltage 24Vrms | ||
Maximum Control Voltage 280Vrms | ||
Minimum Control Voltage 90Vrms | ||
Series 1 | ||
Terminal Type Screw | ||
Switching Function Zero Voltage Switching | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals RoHS | ||
Height 23mm | ||
Width 22.6 mm | ||
Length 58.4mm | ||
Capacitance 8pF | ||
Off State Leakage Current 1mA | ||
Output Type SCR | ||
Sensata | Crydom Solid-State Relay, 50A Current Rating, Screw Terminals - Series 1 Series - A2450
Use this solid-state relay from Sensata | Crydom to turn power on and off in your electric circuits. As it has no physical contacts, this unit transmits the electrical signals in an optical form. This helps to minimise the risk of wear, giving you an extended service life. For durability, anti-rotation barriers in the housing help prevent misalignment in the event of heavy vibrations. Thanks to its maximum turn-on time of 20ms and turn-off time of 30ms, you can use this SSR with devices that need rapid power switching. It's commonly used in lighting and heating applications.
• Broad operating temperature range between -40°C and +80°C to withstand use in harsh environments
• Compact dimensions of 57.3 (H) x 23.3 (W) x 44.5mm (D) to maximise space in your setup
• Durable aluminium baseplate resists impact and corrosion
• Load voltage range between 24 and 280V AC for use in low-voltage systems
What's the current rating of this SSR?
This SSR has a current rating of 50A for use in heavy-duty applications.
Approvals
UL; CSA; VDE
