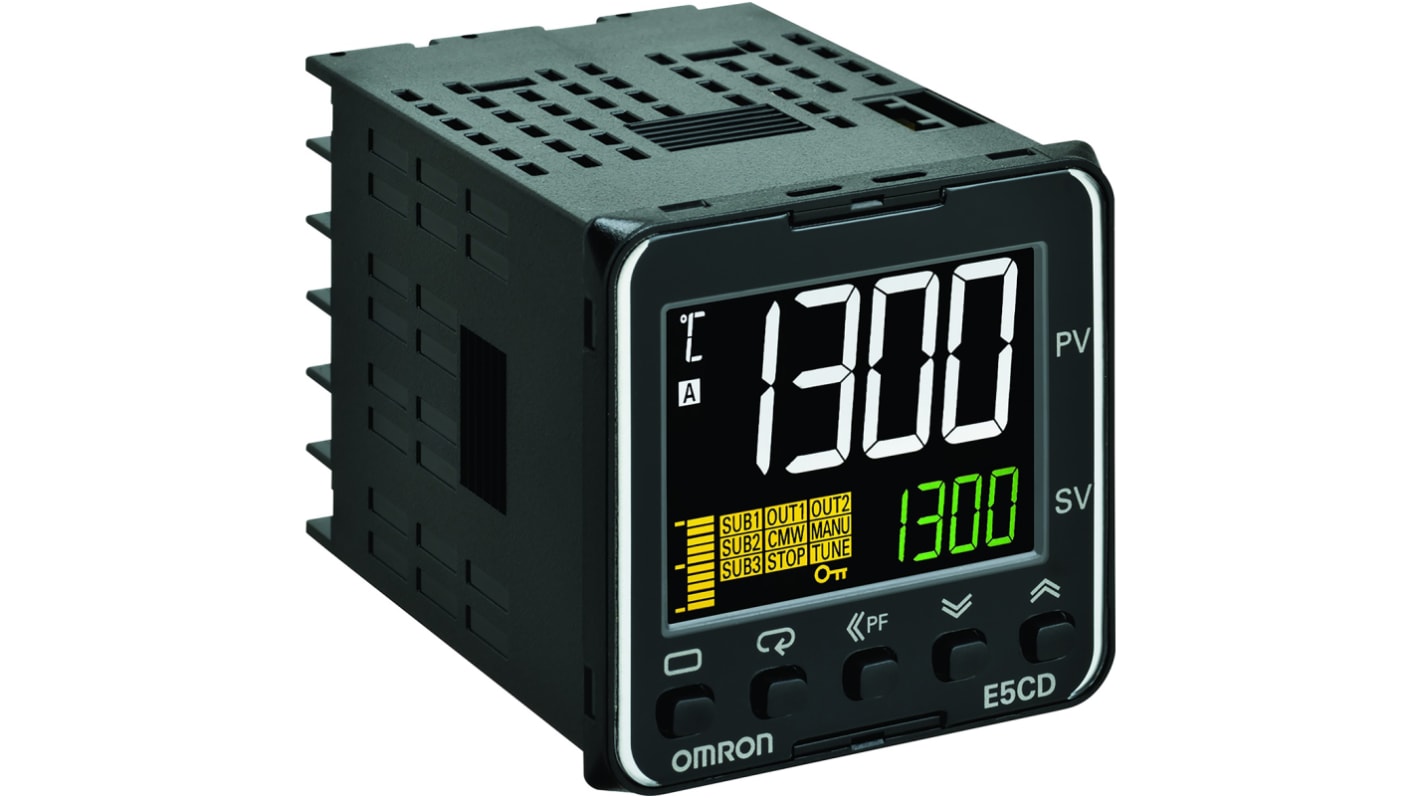

Omron E5CD Panel Mount PID Temperature Controller 2 Input, 2 Output PNP 240V ac On-Off, 2-PID Controller, PID
- RS-stocknr.:
- 136-8651
- Fabrikantnummer:
- E5CD-QX2D6M-001
- Fabrikant:
- Omron
Subtotaal (1 eenheid)*
€ 396,83
(excl. BTW)
€ 480,16
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 75,00
- 2 stuk(s) klaar voor verzending vanaf een andere locatie
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 396,83 |
*prijsindicatie
- RS-stocknr.:
- 136-8651
- Fabrikantnummer:
- E5CD-QX2D6M-001
- Fabrikant:
- Omron
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Omron | |
| Output Type | PNP | |
| Product Type | PID Temperature Controller | |
| Number of Inputs | 2 | |
| Number of Outputs | 2 | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 55°C | |
| Control Type | On-Off, 2-PID Controller, PID | |
| Terminal Type | Screw Terminal block | |
| Maximum Supply Voltage | 240V ac | |
| Diagnostics | Ambient Temperature Monitor, Control Output On/Off Count Monitors, Loop Burnout Alarm, Indication Data, Yes | |
| Digital Comms | RS485 | |
| Controlled Phases | 1 | |
| Display Type | 11 Segment Digital Display | |
| Maximum Voltage | 250V ac | |
| IP Rating | IP20, IP00, IP66 | |
| Width | 48 mm | |
| Standards/Approvals | EN 61010-1 (IEC 61010-1), RCM standards, Korean wireless regulations (Radio law: KC Mark), cULus: UL 61010-1/CSA C22.2 No.61010-1 | |
| Series | E5CD | |
| Mount Type | Panel Mount | |
| Input Type | Analogue, Thermocouple, PT100, Universal | |
| Panel Depth | 60mm | |
| Alles selecteren | ||
|---|---|---|
Merk Omron | ||
Output Type PNP | ||
Product Type PID Temperature Controller | ||
Number of Inputs 2 | ||
Number of Outputs 2 | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 55°C | ||
Control Type On-Off, 2-PID Controller, PID | ||
Terminal Type Screw Terminal block | ||
Maximum Supply Voltage 240V ac | ||
Diagnostics Ambient Temperature Monitor, Control Output On/Off Count Monitors, Loop Burnout Alarm, Indication Data, Yes | ||
Digital Comms RS485 | ||
Controlled Phases 1 | ||
Display Type 11 Segment Digital Display | ||
Maximum Voltage 250V ac | ||
IP Rating IP20, IP00, IP66 | ||
Width 48 mm | ||
Standards/Approvals EN 61010-1 (IEC 61010-1), RCM standards, Korean wireless regulations (Radio law: KC Mark), cULus: UL 61010-1/CSA C22.2 No.61010-1 | ||
Series E5CD | ||
Mount Type Panel Mount | ||
Input Type Analogue, Thermocouple, PT100, Universal | ||
Panel Depth 60mm | ||
- Land van herkomst:
- CN
E5CD Digital Temperature Controllers
Features and Benefits
Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges
