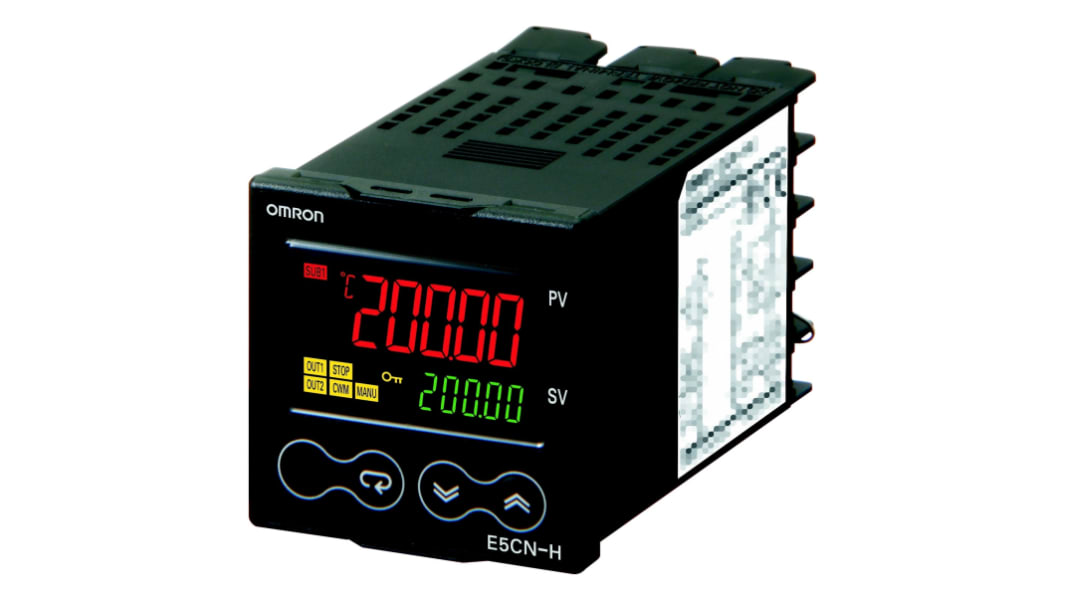

Omron E5CN Panel Mount PID Temperature Controller 2 Input, 2 Output Linear, Analogue, 0 to 10 V 24V ac/dc PID, On-Off,
- RS-stocknr.:
- 215-3988
- Fabrikantnummer:
- E5CN-HV2MD-500 24VAC/DC
- Fabrikant:
- Omron
Subtotaal (1 eenheid)*
€ 605,50
(excl. BTW)
€ 732,66
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 75,00
Op voorraad
- 1 stuk(s) klaar voor verzending vanaf een andere locatie
- Plus verzending 1 stuk(s) vanaf 12 mei 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 605,50 |
*prijsindicatie
- RS-stocknr.:
- 215-3988
- Fabrikantnummer:
- E5CN-HV2MD-500 24VAC/DC
- Fabrikant:
- Omron
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Omron | |
| Output Type | Linear, Analogue, 0 to 10 V | |
| Product Type | PID Temperature Controller | |
| Number of Inputs | 2 | |
| Number of Outputs | 2 | |
| Maximum Current | 20mA | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 55°C | |
| Terminal Type | Screw | |
| Control Type | PID, On-Off, 2-PID Controller | |
| Maximum Supply Voltage | 24V ac/dc | |
| Maximum Voltage | 26.4V | |
| Display Type | 7 Segment, 11 Segment Digital Display | |
| Standards/Approvals | UL, CSA | |
| IP Rating | IP20, IP66, IP00 | |
| Length | 48mm | |
| Width | 48 mm | |
| Series | E5CN | |
| Input Type | Universal, Thermocouple, PT100, Analogue | |
| Mount Type | Panel Mount | |
| Panel Depth | 78mm | |
| Alles selecteren | ||
|---|---|---|
Merk Omron | ||
Output Type Linear, Analogue, 0 to 10 V | ||
Product Type PID Temperature Controller | ||
Number of Inputs 2 | ||
Number of Outputs 2 | ||
Maximum Current 20mA | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 55°C | ||
Terminal Type Screw | ||
Control Type PID, On-Off, 2-PID Controller | ||
Maximum Supply Voltage 24V ac/dc | ||
Maximum Voltage 26.4V | ||
Display Type 7 Segment, 11 Segment Digital Display | ||
Standards/Approvals UL, CSA | ||
IP Rating IP20, IP66, IP00 | ||
Length 48mm | ||
Width 48 mm | ||
Series E5CN | ||
Input Type Universal, Thermocouple, PT100, Analogue | ||
Mount Type Panel Mount | ||
Panel Depth 78mm | ||
The Omron temperature controller series are high resolution and high speed controller having logic operation and preventive maintenance function .The temperature controller has a compact body that is ideal for small equipment, laboratory instruments and can be easily connected to PLC with program less communication. It has preventive maintenance for relays in the temperature controller using a control output ON/OFF counter.
Greater efficiency from designing to assembly and operation
Logic operations and preventive maintenance function
Plus infrared port on front panel
Innovating control panel and equipment usability
