Electro PJP Narrow Test Probe, 2.1 mm Tip, 1 kV, 36A
- RS-stocknr.:
- 263-9172
- Fabrikantnummer:
- 405-IEC-V
- Fabrikant:
- Electro PJP
Subtotaal (1 eenheid)*
€ 3,19
(excl. BTW)
€ 3,86
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 75,00
Op voorraad
- Plus verzending 10 stuk(s) vanaf 02 maart 2026
- Plus verzending 5 stuk(s) vanaf 02 maart 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 3,19 |
*prijsindicatie
- RS-stocknr.:
- 263-9172
- Fabrikantnummer:
- 405-IEC-V
- Fabrikant:
- Electro PJP
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Electro PJP | |
| Voltage | 1 kV | |
| Product Type | Test Probe | |
| Current | 36A | |
| Colour | Green | |
| Probe Tip Type | Narrow | |
| Tip Size | 2.1 mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | RoHS | |
| Alles selecteren | ||
|---|---|---|
Merk Electro PJP | ||
Voltage 1 kV | ||
Product Type Test Probe | ||
Current 36A | ||
Colour Green | ||
Probe Tip Type Narrow | ||
Tip Size 2.1 mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals RoHS | ||
- Land van herkomst:
- FR

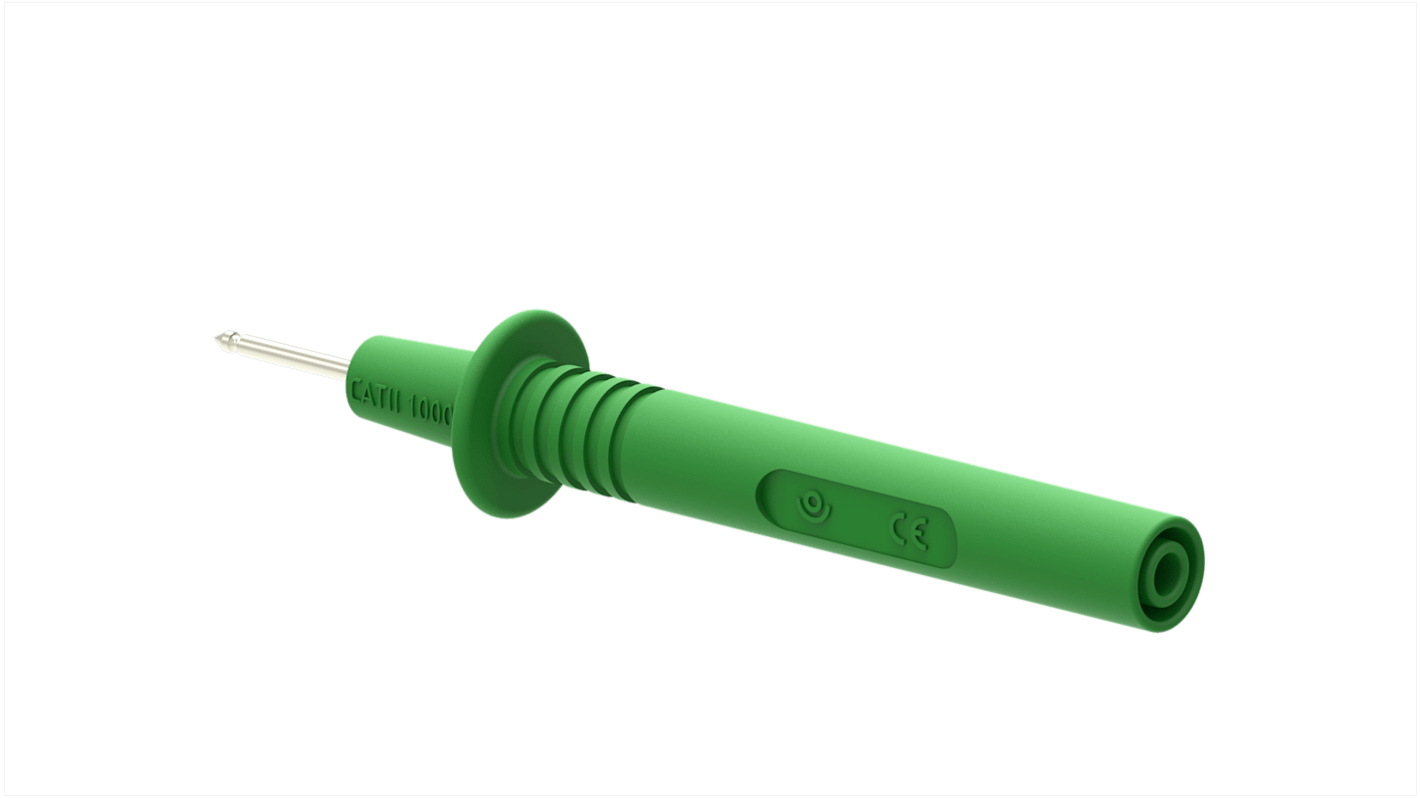

The Electro PJP smooth test probe are green in color and it has 2 mm smooth tip body with 4 mm female type banana jack socket. This probe use to measure voltage up to 1000 V and it is also used for elecrtical and electronics testing, controlling and measuring. Its thin and long conductive tip allows measurements on deep and small contacts. The conductors of this probe are made from nickel-coated brass. The operating temperature of this probe is -20 °C to +80 °C.
RoHS compliant
Weight is 0.022 kg
According to EN / IEC 61010-031:2015. 1000 V CAT II, reinforced insulation, 36 A
