Belden 8164 Series Multipair Industrial Cable, 4 Pairs, 0.23 mm², 152 m, Silver Sheath Polyvinyl Chloride

RS-stocknr.:: 331-8966
Fabrikantnummer:: 8164.00152
Fabrikant:: Belden

Belden 8164 Series Multipair Industrial Cable, 4 Pairs, 0.23 mm², 152 m, Silver Sheath Polyvinyl Chloride

Subtotaal (1 rol van 152 meter)*

€ 2.635,97

(excl. BTW)

€ 3.189,52

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 75,00

Op voorraad

2 stuk(s) klaar voor verzending vanaf een andere locatie

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Rol(len)	Per rol	Per meter*
1 +	€ 2.635,97	€ 17,342

*prijsindicatie

RS-stocknr.:: 331-8966
Fabrikantnummer:: 8164.00152
Fabrikant:: Belden

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Belden
	Number of Pairs	4
	Product Type	Multipair Industrial Cable
	Cross Sectional Area	0.23 mm²
	Cable Length	152m
	Jacket Colour	Silver
	Outside Diameter	9.86 mm
	Conductor Type	Stranded
	Minimum Operating Temperature	-40°C
	Jacket Material	Polyvinyl Chloride
	Maximum Operating Temperature	60°C
	Standards/Approvals	Euroclass Eca
	Fire Behaviour	Low Smoke Zero Halogen (LSZH)
	Conductor Material	Tin Copper Wire
	Series	8164
	Voltage	300 V
	Core Strands	7

	Alles selecteren
	Merk Belden
	Number of Pairs 4
	Product Type Multipair Industrial Cable
	Cross Sectional Area 0.23 mm²
	Cable Length 152m
	Jacket Colour Silver
	Outside Diameter 9.86 mm
	Conductor Type Stranded
	Minimum Operating Temperature -40°C
	Jacket Material Polyvinyl Chloride
	Maximum Operating Temperature 60°C
	Standards/Approvals Euroclass Eca
	Fire Behaviour Low Smoke Zero Halogen (LSZH)
	Conductor Material Tin Copper Wire
	Series 8164
	Voltage 300 V
	Core Strands 7

Land van herkomst:: NL

Belden Multipair Industrial Cable, Datalene Insulation, 12.5pF/ft Conductor-to-Conductor Capacitance - 8164.00152

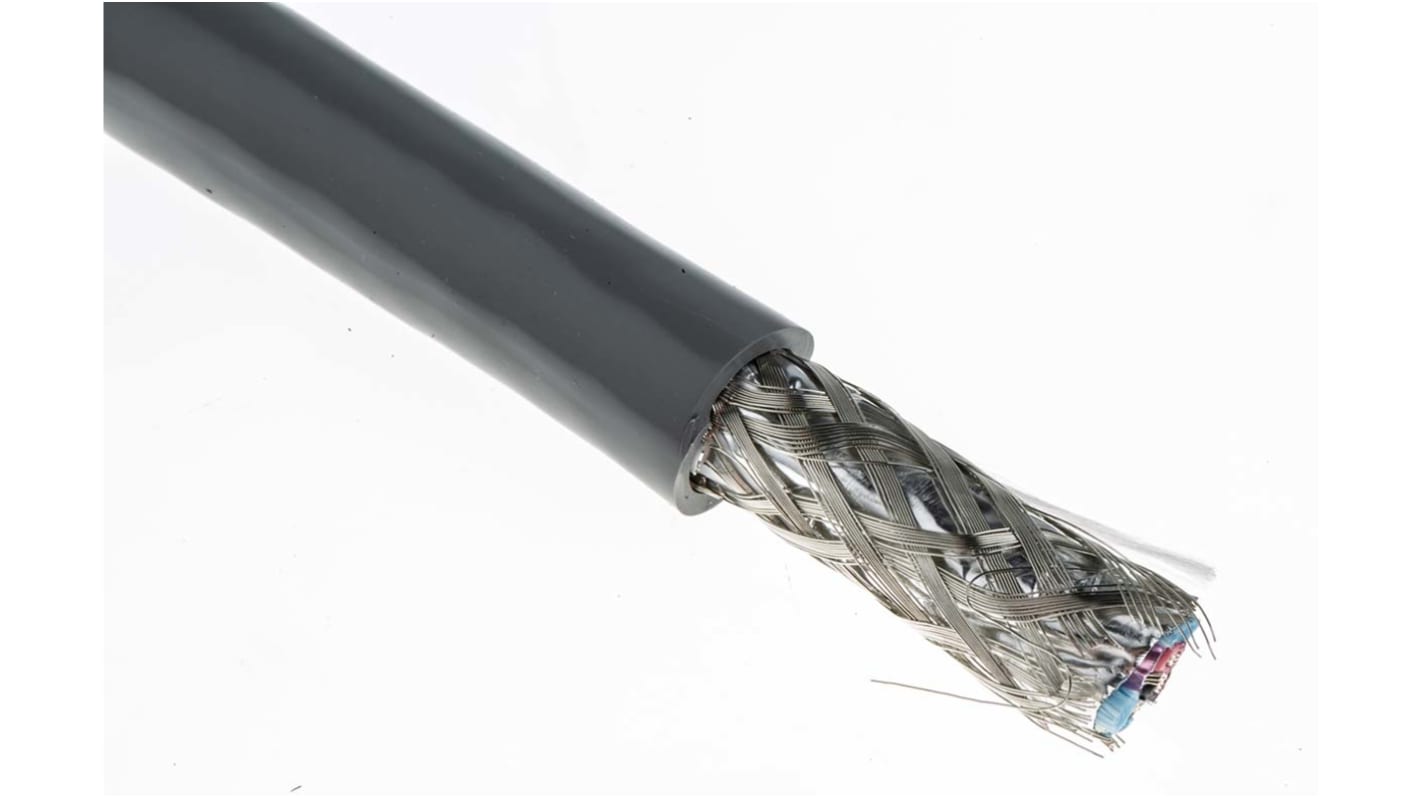

For error-free data transfer between components in your industrial equipment, go for this multipair cable from Belden. It carries signals from machines to your computer, so you can monitor and configure operating conditions. The cable has eight conductors that are twisted in pairs to prevent EMI. Aluminium foil-polyester tape shielding ensures you get noiseless signal transmission. Innovative Datalene insulation keeps you safe from electric shocks, but has a low dielectric constant to ensure the cable handles low-distortion transmission.

Features & Benefits

• Cable length of 152m for long runs or lots of jobs

• Low conductor-to-conductor capacitance of 12.5pF/ft for high-integrity signal transmission

• PVC jacket makes the cable impact-resistant for use in harsh environments

Applications

• Robotics systems

• Assembly lines

• Measurement and instrumentation devices

What's the function of the drain wire in this cable?

The drain wire provides an easy grounding point for the shield, which helps in preventing and diverting EMI.

Standards

UL2493; NEC CM
