OPTIBELT Drive Belt, belt section XPB, 1600mm Length
- RS-stocknr.:
- 195-3875
- Fabrikantnummer:
- XPB 1600 XEP
- Fabrikant:
- OPTIBELT
Sorry, we konden onze voorraadniveaus nu niet controleren. Probeer de pagina te vernieuwen.
Toegevoegd
Prijs Per stuk
€ 32,00
(excl. BTW)
€ 38,72
(incl. BTW)
| Aantal stuks | Per stuk |
| 1 - 4 | € 32,00 |
| 5 - 9 | € 30,72 |
| 10 - 24 | € 30,08 |
| 25 + | € 29,44 |
- RS-stocknr.:
- 195-3875
- Fabrikantnummer:
- XPB 1600 XEP
- Fabrikant:
- OPTIBELT
Datasheets
Wetgeving en compliance
- Land van herkomst:
- DE
Productomschrijving

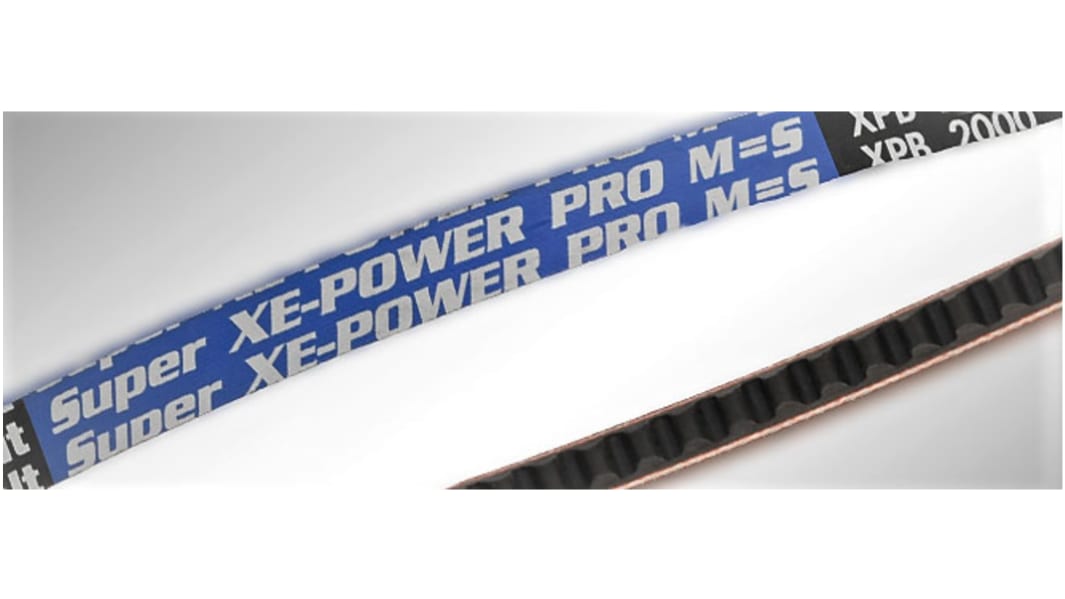

The new maintenance-free optibelt SUPER XE-POWER PRO M=S opens up new scope in designing frictional power transmission drives, even on the smallest pulley diameters, in extreme temperature ranges and at the highest speeds.
Fit for back idlers
M=S Set Constant - can be used in sets without further measurement
+ 20% power compared to optibelt SUPER X-POWER M=S
Temperature range -40°C to +120°C
Very quiet running even at very high torque levels
Maintenance free
M=S Set Constant - can be used in sets without further measurement
+ 20% power compared to optibelt SUPER X-POWER M=S
Temperature range -40°C to +120°C
Very quiet running even at very high torque levels
Maintenance free
Specificaties
Kenmerk | Waarde |
|---|---|
| Length | 1600mm |
| Top Width | 16.3mm |
| Belt Section | XPB |
| Inside Length | 1540 |
| Height | 13mm |
| Minimum Pulley Diameter | 112mm |
| Series | XE-Power |
| Material | Rubber |
| Outer Length | 1622mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +120°C |
| Datum Length | 1600mm |
