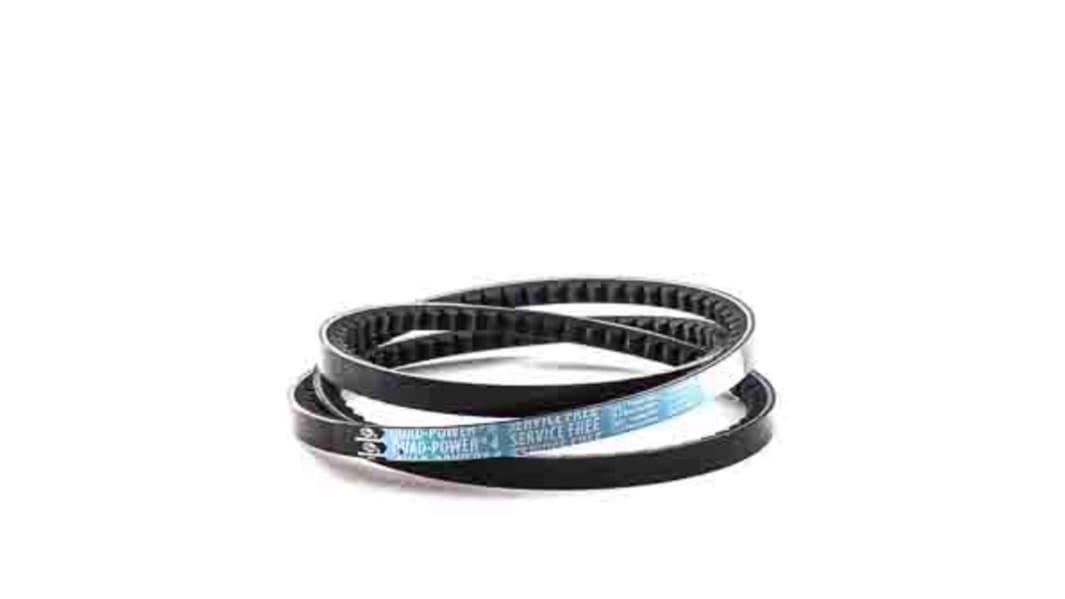

Gates Drive Belt, belt section XPB/5VX 1600 mm, 1540 mm Length
- RS-stocknr.:
- 211-7828
- Fabrikantnummer:
- XPB1600/5VX634 QUAD-POWER 4
- Fabrikant:
- Gates
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 62,97
(excl. BTW)
€ 76,19
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 4 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 62,97 |
| 5 - 9 | € 61,73 |
| 10 - 24 | € 60,45 |
| 25 + | € 59,20 |
*prijsindicatie
- RS-stocknr.:
- 211-7828
- Fabrikantnummer:
- XPB1600/5VX634 QUAD-POWER 4
- Fabrikant:
- Gates
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Gates | |
| Belt Section | XPB/5VX | |
| Product Type | Drive Belt | |
| Sub Type | Narrow Belt | |
| Series | Quad Power 4 | |
| Belt Material | Ethylene Propylene Diene Monomer Rubber | |
| Cord Material | Polyester | |
| Outside Length | 1600mm | |
| Minimum Operating Temperature | -50°C | |
| Belt Width | 16.3mm | |
| Belt Height | 13mm | |
| Maximum Operating Temperature | 130°C | |
| Standards/Approvals | ISO 4184, RoHS, RMA IP, ISO181 ATEX, DIN 775, REACH | |
| Inside Length | 1540mm | |
| Alles selecteren | ||
|---|---|---|
Merk Gates | ||
Belt Section XPB/5VX | ||
Product Type Drive Belt | ||
Sub Type Narrow Belt | ||
Series Quad Power 4 | ||
Belt Material Ethylene Propylene Diene Monomer Rubber | ||
Cord Material Polyester | ||
Outside Length 1600mm | ||
Minimum Operating Temperature -50°C | ||
Belt Width 16.3mm | ||
Belt Height 13mm | ||
Maximum Operating Temperature 130°C | ||
Standards/Approvals ISO 4184, RoHS, RMA IP, ISO181 ATEX, DIN 775, REACH | ||
Inside Length 1540mm | ||
The Gates XPB/5VX series Quad Power 4 raw edge v-belt has designed is the first raw edge zero-maintenance belt by using innovative minimal-stretch cord technology. iT has been developed to replace conventional belt for heavy duty industry drives. This V-belt does not suffer from severe tension decay in the first hours after installation, so no run-in period nor any re-tensioning are required.
Energy efficiencies up to 98%
Latest EPDM rubber technology
Halogen-free belt
Service-free V-belt
Temperature range = -50°C to +130°C
RoHS and REACH compliant
