Festo QS-4 port 30 L/min Vacuum Saving Valve
- RS-stocknr.:
- 288-7783
- Fabrikantnummer:
- MHA1-2X2/2G-1,5
- Fabrikant:
- Festo
Subtotaal (1 eenheid)*
€ 104,40
(excl. BTW)
€ 126,32
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 80,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 13 april 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 104,40 |
*prijsindicatie
- RS-stocknr.:
- 288-7783
- Fabrikantnummer:
- MHA1-2X2/2G-1,5
- Fabrikant:
- Festo
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Festo | |
| Product Type | Vacuum Saving Valve | |
| Port Size | QS-4 | |
| Series | MHA1 | |
| Maximum Flow Rate | 30L/min | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 50°C | |
| Overall Width | 20mm | |
| Standards/Approvals | EU EMC, UK RoHS instructions, EU RoHS, UK instructions for EMC, ISO 8573-1:2010 (7:4:4) | |
| Pressure Setting Range | 0 bar to 1.5 bar | |
| Alles selecteren | ||
|---|---|---|
Merk Festo | ||
Product Type Vacuum Saving Valve | ||
Port Size QS-4 | ||
Series MHA1 | ||
Maximum Flow Rate 30L/min | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 50°C | ||
Overall Width 20mm | ||
Standards/Approvals EU EMC, UK RoHS instructions, EU RoHS, UK instructions for EMC, ISO 8573-1:2010 (7:4:4) | ||
Pressure Setting Range 0 bar to 1.5 bar | ||
- Land van herkomst:
- DE

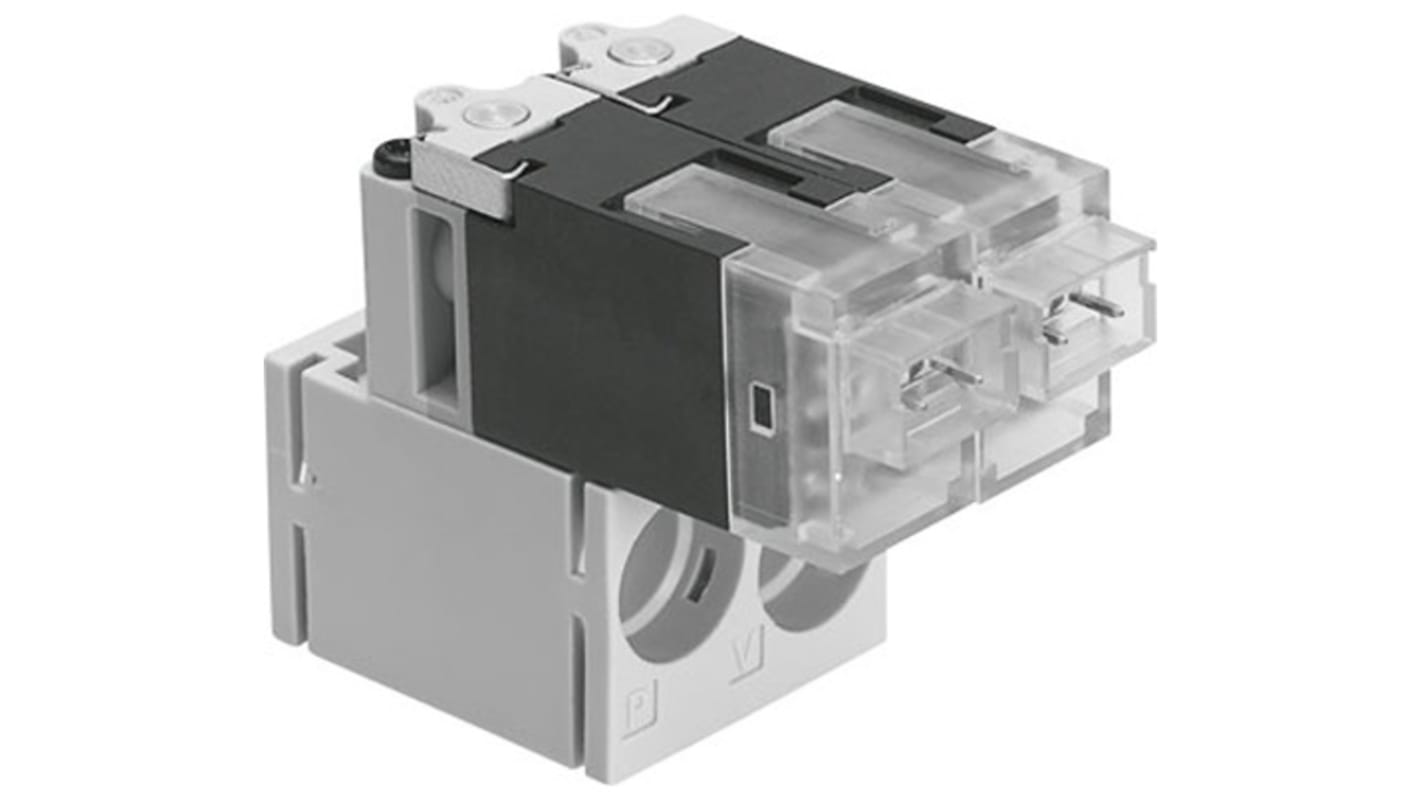

The Festo Vacuum valve is a high-quality product designed for industrial automation applications. With a standard nominal flow rate of 30 l/min and an operating pressure range of 0 bar to 1.5 bar, this valve offers reliable performance and precise control. The valve function is 2x2/2-way, monostable, and closed, making it suitable for a wide range of pneumatic applications.
Electrically actuated with an operating voltage of 24V DC
Prepared for QSP10 pneumatic working port
IP40 degree of protection for durability and reliability
CE marked for compliance with EU EMC and RoHS Directives
Soft sealing principle for optimal performance
Suitable for vacuum applications with a maximum vacuum pressure
24 V DC with low-current and high-current phase for efficiency
Lubricated operation possible for increased longevity
