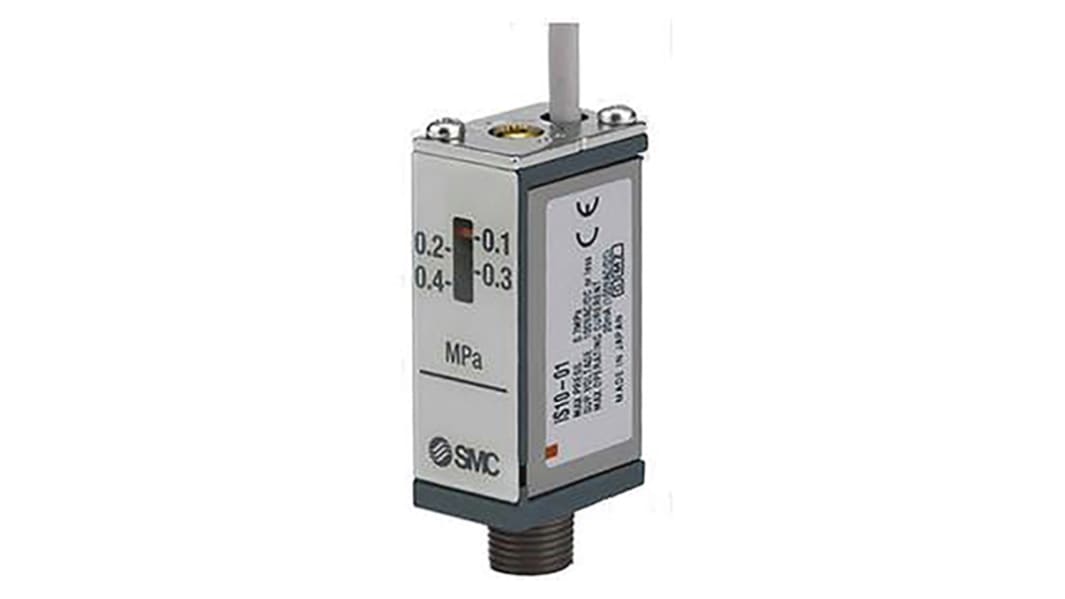

SMC Pressure Switch 1A 0.7 MPa to 0.7 MPa
- RS-stocknr.:
- 843-0355
- Artikelnummer Distrelec:
- 301-06-453
- Fabrikantnummer:
- IS10-01-L
- Fabrikant:
- SMC
Bulkkorting beschikbaar
Bekijk bulkkortingSubtotaal (1 eenheid)*
€ 74,86
(excl. BTW)
€ 90,58
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Tijdelijk niet op voorraad
- Verzending 24 stuk(s) vanaf 25 september 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 74,86 |
| 5 + | € 71,88 |
*prijsindicatie
- RS-stocknr.:
- 843-0355
- Artikelnummer Distrelec:
- 301-06-453
- Fabrikantnummer:
- IS10-01-L
- Fabrikant:
- SMC
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | SMC | |
| Product Type | Pressure Switch | |
| Port Size | 1/8 in | |
| Minimum Operating Pressure | 0.7MPa | |
| Current | 20mA | |
| Contact Configuration | 1A | |
| Suitable Medias | Gas, Air | |
| Mount Type | Modular, FRL | |
| Voltage | 100, 100V ac | |
| Series | IS10 | |
| Maximum Operating Pressure | 0.7 MPa | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 60°C | |
| Height | 52mm | |
| Standards/Approvals | No | |
| Width | 23mm | |
| Hazardous Area Certification | No | |
| IP Rating | IP40 | |
| LED Indicator | Yes | |
| Alles selecteren | ||
|---|---|---|
Merk SMC | ||
Product Type Pressure Switch | ||
Port Size 1/8 in | ||
Minimum Operating Pressure 0.7MPa | ||
Current 20mA | ||
Contact Configuration 1A | ||
Suitable Medias Gas, Air | ||
Mount Type Modular, FRL | ||
Voltage 100, 100V ac | ||
Series IS10 | ||
Maximum Operating Pressure 0.7 MPa | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 60°C | ||
Height 52mm | ||
Standards/Approvals No | ||
Width 23mm | ||
Hazardous Area Certification No | ||
IP Rating IP40 | ||
LED Indicator Yes | ||
- Land van herkomst:
- JP
R1/8 Compact IS1000 Pressure Switch (Adjustable)
1MPa Maximum Proof Pressure
Operating Temperature range -5 → 60°C (No Freezing)
Air or Inert Gas media
Compact and lightweight
Shield plate prevents external magnetic interference
Reed Switch Output
Pressure Switches
Warning
Compressed air whilst generally considered a safe source of energy must always be treated with caution and under no circumstances be used for any other purposes than that for which it is intended.
