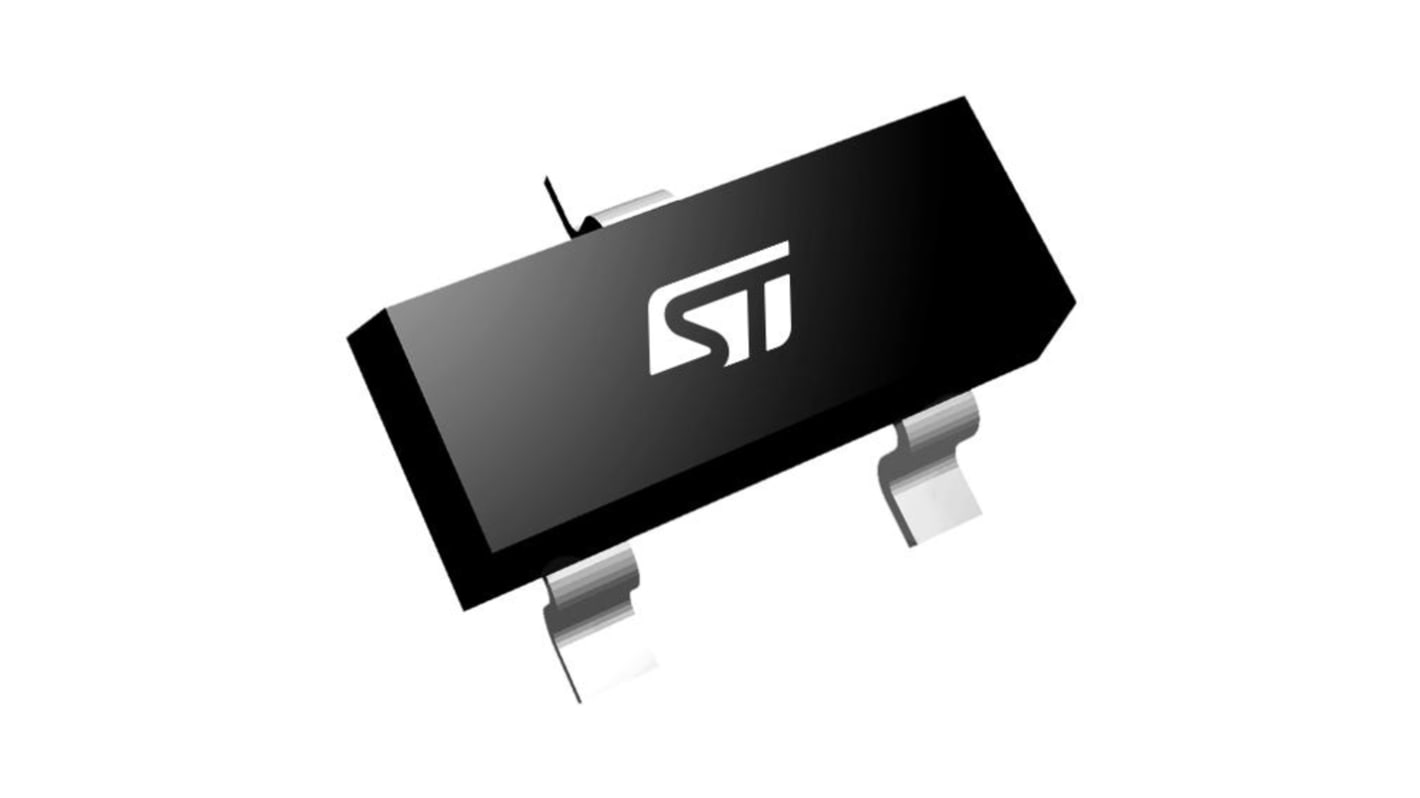

STMicroelectronics Adjustable Shunt Voltage Reference 0.5 % 3-Pin SOT-23, TLVH431MIL3T

Bekijk alle Voltage References
Bulkkorting beschikbaar

Subtotaal (1 rol van 50 eenheden)*

€ 6,55

(excl. BTW)

€ 7,95

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Bestellingen onder € 75,00 (excl. BTW) € 5,95.
Op voorraad
  • Plus verzending 2.850 stuk(s) vanaf 23 februari 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
Per rol*
50 - 450€ 0,131€ 6,55
500 - 950€ 0,124€ 6,20
1000 +€ 0,115€ 5,75

*prijsindicatie

Verpakkingsopties
RS-stocknr.:
151-866
Fabrikantnummer:
TLVH431MIL3T
Fabrikant:
STMicroelectronics
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

STMicroelectronics

Product Type

Voltage Reference

Reference Voltage

1.24V

Package Type

SOT-23

Output Voltage

1.24/18 V

Reference Type

Adjustable

Initial Accuracy

0.5 %

Mount Type

Surface

Temperature Coefficient

100 ppm/°C

Topology

Shunt

Output Current

60mA

Maximum Input Voltage

36V

Pin Count

3

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Series

TL431

Standards/Approvals

ST, EUNEC, Package complies with SOT23, ECCN: USEAR99, AEC-Q100, RoHS (Ecopack3)

Output Type

Adjustable

Automotive Standard

AEC-Q100

Minimum Input Voltage

2.5V

Land van herkomst:
MY
The STMicroelectronics Adjustable Shunt Voltage Reference comes with guaranteed temperature stability over the entire operating temperature range. The output voltage may be set to any Value between 1.24 V and 18 V by means of an external resistor divider. It operates with a wide current range from 100 μA to 60 mA with a typical dynamic impedance of 0.22 Ω.

Sink current capability up to 60 mA

40 to +125 °C temperature range

100 ppm/°C maximum temperature coefficient
