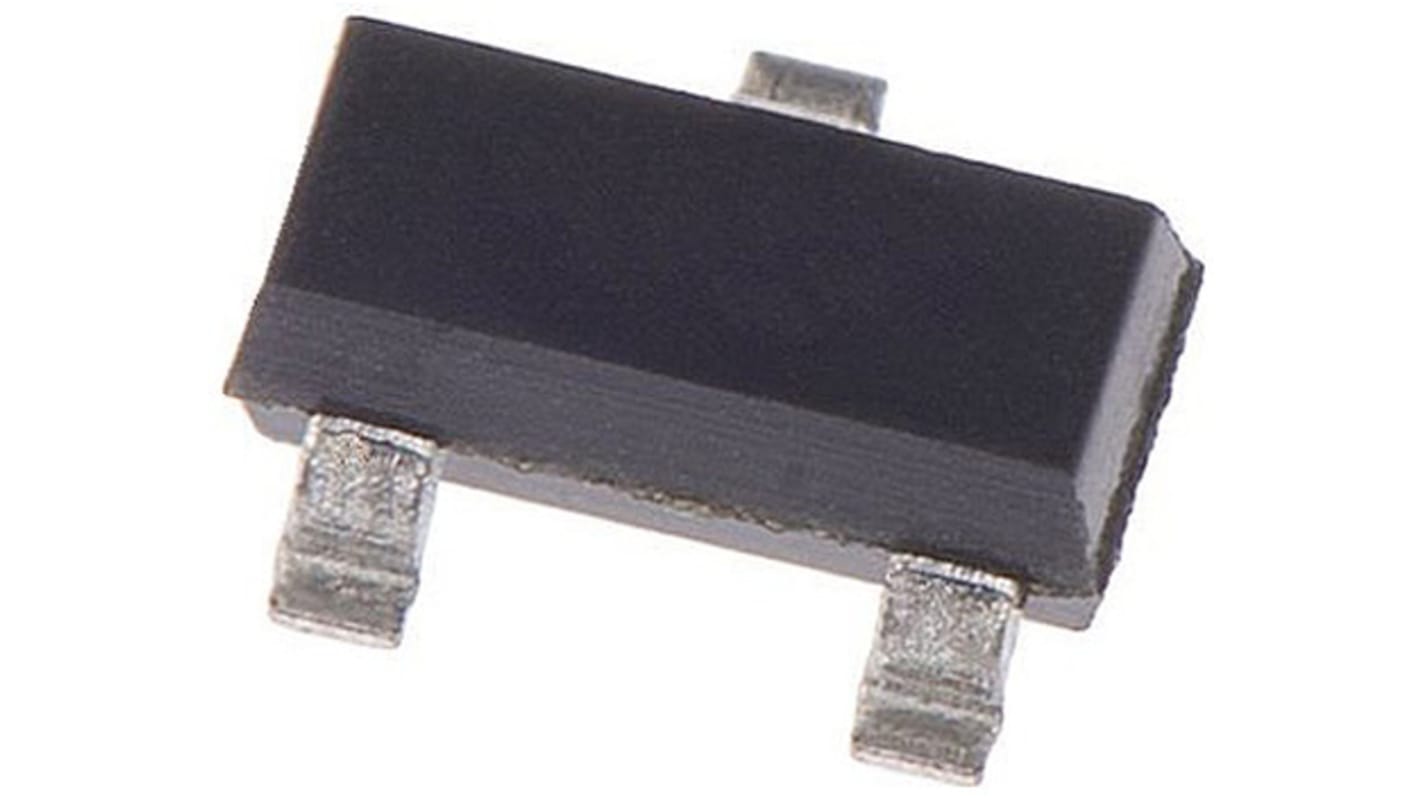

Diodes Inc Adjustable Shunt Voltage Reference 1.24 - 20V ±1.0 % 3-Pin SOT-23, AP432ASAG-7
- RS-stocknr.:
- 121-9503
- Fabrikantnummer:
- AP432ASAG-7
- Fabrikant:
- DiodesZetex
Subtotaal (1 rol van 3000 eenheden)*
€ 294,00
(excl. BTW)
€ 357,00
(incl. BTW)
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks | Per stuk | Per rol* |
|---|---|---|
| 3000 + | € 0,098 | € 294,00 |
*prijsindicatie
- RS-stocknr.:
- 121-9503
- Fabrikantnummer:
- AP432ASAG-7
- Fabrikant:
- DiodesZetex
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | DiodesZetex | |
| Nominal Voltage | 1.24 - 20V | |
| Package Type | SOT-23 | |
| Reference Type | Adjustable | |
| Initial Accuracy | ±1.0 % | |
| Mounting Type | Surface Mount | |
| Topology | Shunt | |
| Maximum Output Current | 200mA | |
| Maximum Input Voltage | 20 V | |
| Minimum Output Voltage | 1.24 V | |
| Maximum Output Voltage | 20 V | |
| Pin Count | 3 | |
| Dimensions | 3 x 1.4 x 1mm | |
| Length | 3mm | |
| Height | 1mm | |
| Minimum Operating Temperature | -20 °C | |
| Maximum Operating Temperature | +85 °C | |
| Width | 1.4mm | |
| Alles selecteren | ||
|---|---|---|
Merk DiodesZetex | ||
Nominal Voltage 1.24 - 20V | ||
Package Type SOT-23 | ||
Reference Type Adjustable | ||
Initial Accuracy ±1.0 % | ||
Mounting Type Surface Mount | ||
Topology Shunt | ||
Maximum Output Current 200mA | ||
Maximum Input Voltage 20 V | ||
Minimum Output Voltage 1.24 V | ||
Maximum Output Voltage 20 V | ||
Pin Count 3 | ||
Dimensions 3 x 1.4 x 1mm | ||
Length 3mm | ||
Height 1mm | ||
Minimum Operating Temperature -20 °C | ||
Maximum Operating Temperature +85 °C | ||
Width 1.4mm | ||
- Land van herkomst:
- CN
Adjustable Voltage Reference, Diodes Inc
Voltage References, Diodes Inc
