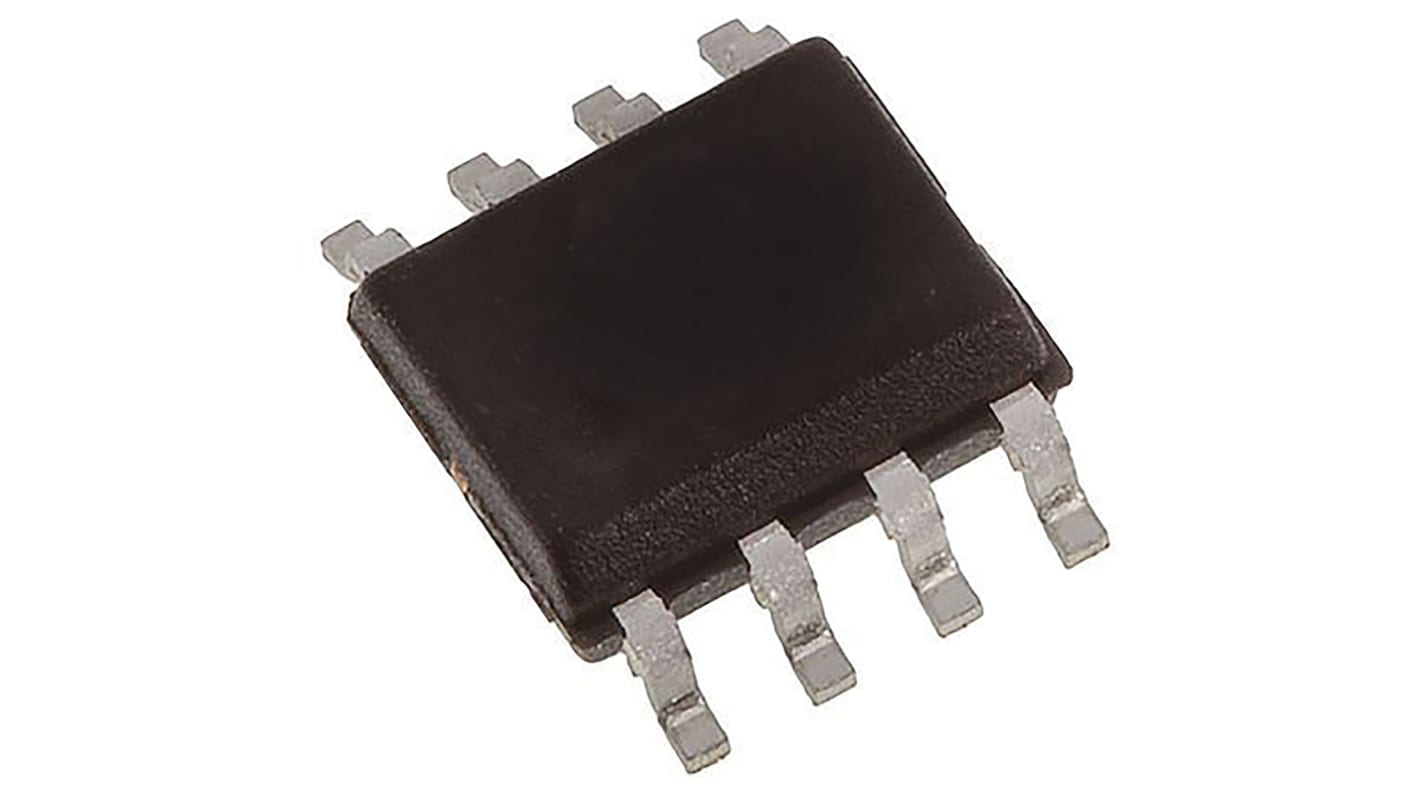

Analog Devices Fixed Series Voltage Reference ±0.04 % 8-Pin SOIC, ADR434BRZ
- RS-stocknr.:
- 709-8180P
- Fabrikantnummer:
- ADR434BRZ
- Fabrikant:
- Analog Devices
Bulkkorting beschikbaar
Subtotaal 10 eenheden (geleverd in een buis)*
€ 100,80
(excl. BTW)
€ 122,00
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 75,00
Wordt opgeheven
- Laatste 15 stuk(s), klaar voor verzending vanaf een andere locatie
Aantal stuks | Per stuk |
|---|---|
| 10 - 24 | € 10,08 |
| 25 - 49 | € 9,60 |
| 50 - 99 | € 9,30 |
| 100 + | € 7,97 |
*prijsindicatie
- RS-stocknr.:
- 709-8180P
- Fabrikantnummer:
- ADR434BRZ
- Fabrikant:
- Analog Devices
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Analog Devices | |
| Product Type | Voltage Reference | |
| Package Type | SOIC | |
| Reference Type | Fixed | |
| Initial Accuracy | ±0.04 % | |
| Topology | Series | |
| Maximum Input Voltage | 20V | |
| Pin Count | 8 | |
| Minimum Operating Temperature | 40°C | |
| Line Regulation | 20 ppm/V | |
| Maximum Operating Temperature | 125°C | |
| Load Regulation | 15 ppm/mA | |
| Length | 5mm | |
| Width | 4 mm | |
| Height | 1.5mm | |
| Alles selecteren | ||
|---|---|---|
Merk Analog Devices | ||
Product Type Voltage Reference | ||
Package Type SOIC | ||
Reference Type Fixed | ||
Initial Accuracy ±0.04 % | ||
Topology Series | ||
Maximum Input Voltage 20V | ||
Pin Count 8 | ||
Minimum Operating Temperature 40°C | ||
Line Regulation 20 ppm/V | ||
Maximum Operating Temperature 125°C | ||
Load Regulation 15 ppm/mA | ||
Length 5mm | ||
Width 4 mm | ||
Height 1.5mm | ||
Voltage Reference, 3.0V to 4.5V, Analog Devices
Voltage References, Analog Devices
Precison Fixed and Adjustable Voltage Reference ICs utilsing series, shunt or series/shunt topologies and available in both through-hole and surface mount packages. Voltage References are available with initial accuracies of ±0.02 to ±2%.
