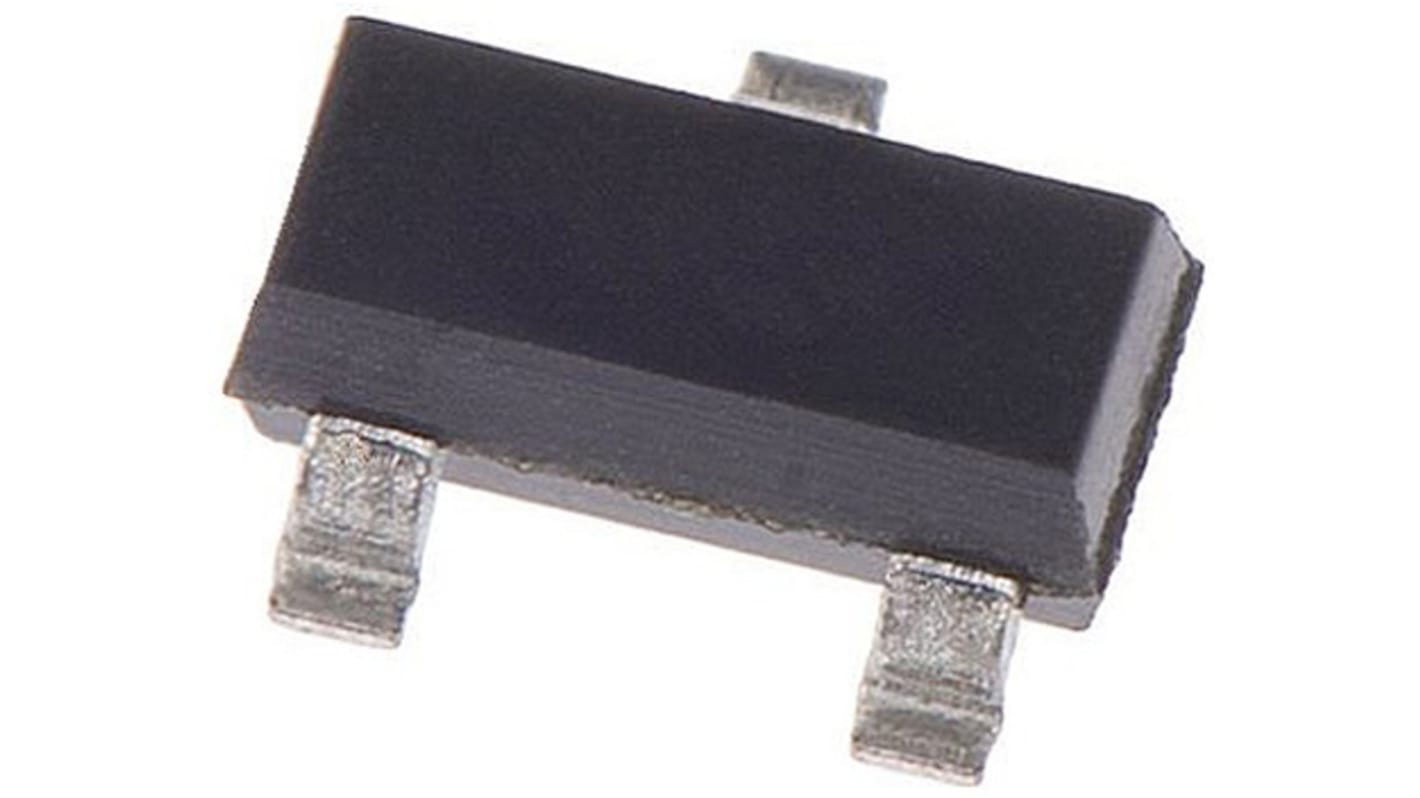

DiodesZetex Adjustable Shunt Voltage Reference ±2.5 % 3-Pin SOT-23, ZR431LF02TA
- RS-stocknr.:
- 751-5219P
- Fabrikantnummer:
- ZR431LF02TA
- Fabrikant:
- DiodesZetex
Bulkkorting beschikbaar
Subtotaal 50 eenheden (geleverd op een doorlopende strip)*
€ 21,85
(excl. BTW)
€ 26,45
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 75,00
Op voorraad
- Plus verzending 2.860 stuk(s) vanaf 24 maart 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 50 - 140 | € 0,437 |
| 150 - 740 | € 0,291 |
| 750 - 1490 | € 0,279 |
| 1500 + | € 0,239 |
*prijsindicatie
- RS-stocknr.:
- 751-5219P
- Fabrikantnummer:
- ZR431LF02TA
- Fabrikant:
- DiodesZetex
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | DiodesZetex | |
| Product Type | Voltage Reference | |
| Reference Voltage | 1.24V | |
| Package Type | SOT-23 | |
| Output Voltage | 1.24/10 V | |
| Reference Type | Adjustable | |
| Initial Accuracy | ±2.5 % | |
| Temperature Coefficient | 50 ppm/°C | |
| Mount Type | Surface | |
| Topology | Shunt | |
| Output Current | 25mA | |
| Maximum Input Voltage | 10V | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 3 | |
| Maximum Operating Temperature | 125°C | |
| Width | 1.4 mm | |
| Standards/Approvals | No | |
| Series | ZR431 | |
| Height | 1.02mm | |
| Length | 3.04mm | |
| Automotive Standard | No | |
| Output Type | Adjustable | |
| Minimum Input Voltage | 1.21V | |
| Alles selecteren | ||
|---|---|---|
Merk DiodesZetex | ||
Product Type Voltage Reference | ||
Reference Voltage 1.24V | ||
Package Type SOT-23 | ||
Output Voltage 1.24/10 V | ||
Reference Type Adjustable | ||
Initial Accuracy ±2.5 % | ||
Temperature Coefficient 50 ppm/°C | ||
Mount Type Surface | ||
Topology Shunt | ||
Output Current 25mA | ||
Maximum Input Voltage 10V | ||
Minimum Operating Temperature -40°C | ||
Pin Count 3 | ||
Maximum Operating Temperature 125°C | ||
Width 1.4 mm | ||
Standards/Approvals No | ||
Series ZR431 | ||
Height 1.02mm | ||
Length 3.04mm | ||
Automotive Standard No | ||
Output Type Adjustable | ||
Minimum Input Voltage 1.21V | ||
Adjustable Voltage Reference, Diodes Inc
Voltage References, Diodes Inc
