Lantronix WP2001000G-02 3.3V WiFi Module, 802.11b, 802.11g CMOS

Bekijk alle Wi-Fi Modules
Niet beschikbaar
RS heeft dit product niet meer op voorraad.
RS-stocknr.:
708-0016
Fabrikantnummer:
WP2001000G-02
Fabrikant:
Lantronix
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Lantronix

Supported Protocol

802.11b, 802.11g

Supported Security Standards

802.11i-PSK, AES, TKIP, WPA-PSK

Supported Bus Interfaces

CMOS

Supply Voltage

3.3V

Dimensions

32.5 x 33.9 x 10.5mm

Height

10.5mm

Length

33.9mm

Maximum Operating Temperature

+70 °C

Minimum Operating Temperature

-40 °C

Width

32.5mm

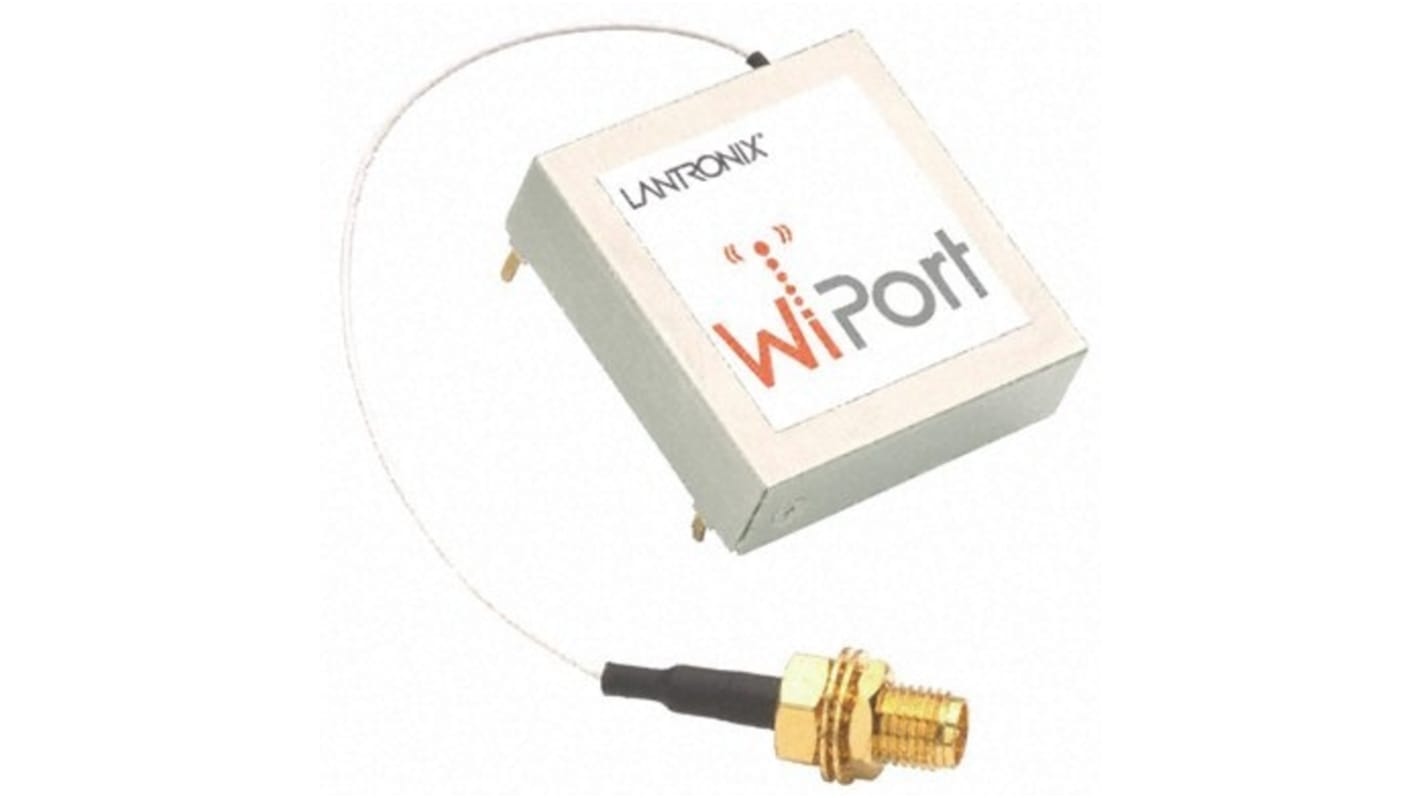

WiPort® Embedded Wireless Device Server


Build 802.11 b/g wireless networking into your products or virtually any electronic device
Wired Ethernet-to-wireless bridging
Bulletproof wireless security with IEEE 802.11i-PSK, WPA-PSK, TKIP
Secure end-to-end communication with Advanced Encryption Standards (AES)
FCC Class B, UL and EN EMC and safety-compliant

Kit Contents


WiPort Evaluation Board
WiPort Device Server
3.3V wall-mount Power Supply 1A
RS-232 cable, DB9F/F, null modem cable
Cat5e UTP RJ45M/M Ethernet cable
CD with software utilities and documentation
Antenna
