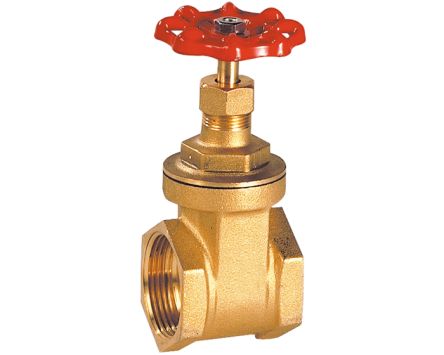

A gate valve is designed to fully open and close once installed into pipelines as isolating valves. Operation of a gate valve is performed doing an either clockwise to close or clockwise to open rotating motion of the stems. When operated, the gate moves up or downward on threaded part of the stem.
Types Gate valves are divided into two types: parallel and wedge shaped.
Parallel gate valve use a flat gate between two parallel seats
Wedge shaped valve use two inclined seats and slightly mismatched inclined gate, allowing a tight shut off.
Uses of Gate Valves Gate valves are widely used for all types of applications and are suitable for both above ground and underground installation. Underground installations are paramount to choose the right type of valve to avoid high replacement costs. Gate valves can be used for a vast number of industrial applications including the oil and gas industry, pharmaceuticals, manufacturing, automotive and marine. Gate valves can be used in demanding environments such as high temperature and high-pressure environments. They are often seen in:
Description:
316L stainless steel construction, fully machined from quality
forgingsEPDM sealsCreep resistant bearingsReinforced nylon handleReduced risk of contamination by top and bottom sealsOperating temperature -10ºC to +120°CWorking pressure 0.9 bar to 10 barPolished disc.
Description:
Non-return or check valves which allow flow in
one direction only. Application : Industry, pneumatics, hydraulic, plumbing installationsOperating Temperature : +0ﾟC / +90ﾟC Operating pressure : PN12 1/2' to 1’’, PN10 1.1/4’’ to 2’’, PN8 2.1/2’’ to 4’’Threads : ISO ...
Description:
These Float Valves are suitable for pressures up
to 14 bar (206 psi). WRAS approvedSmall and quiet in operationMinimum working pressure 0.15 barFits most tanks and cisternsManufactured from 4-ton tensile strength engineering resin to high tolerancesAvailable for side and bottom ...
Description:
To avoid noise in long runs of pipework
and equipment it is desirable to maintain the flow rate less than two litres per secondSuitable for use with water or compressed airCan be installed in any position and serviced in situSingle ...
