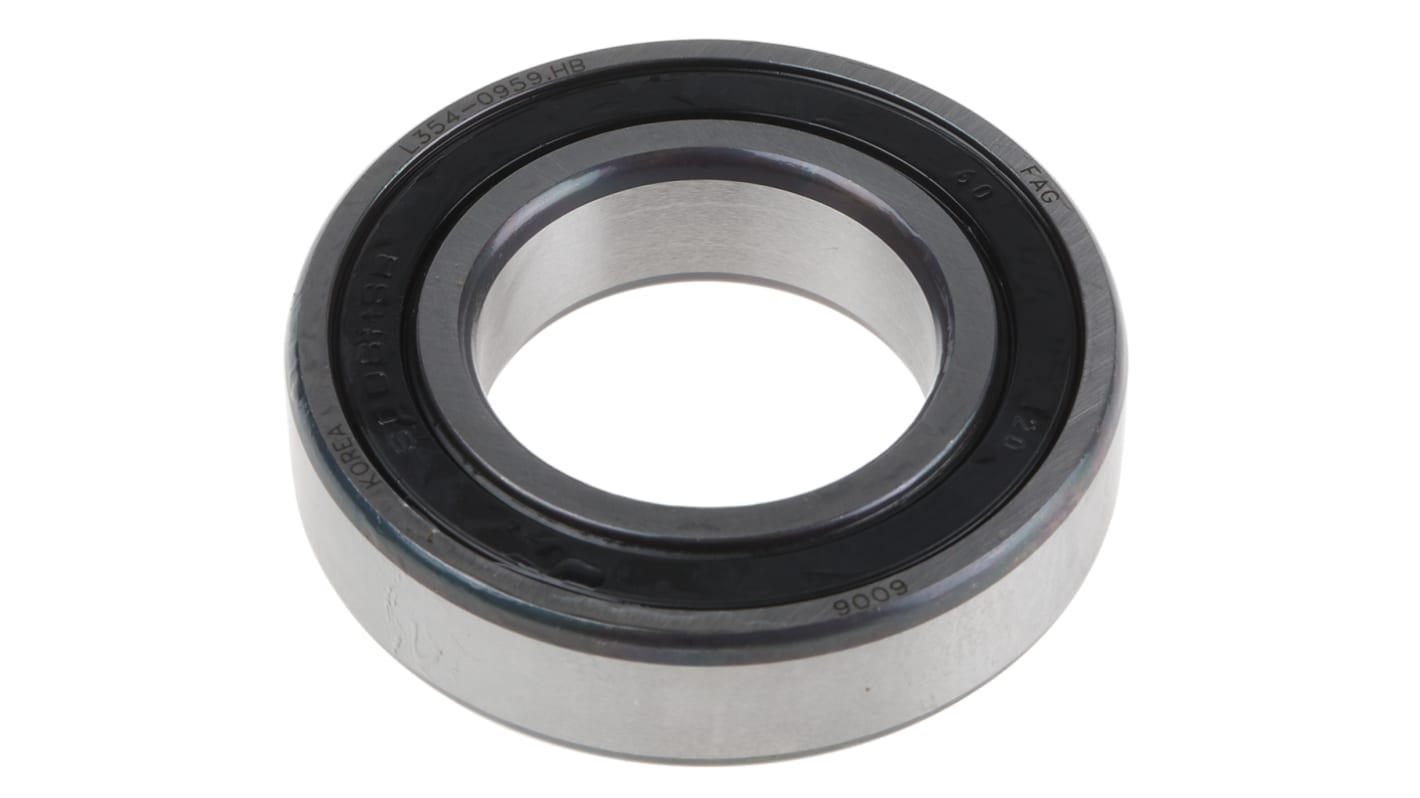

FAG 6006-C-2HRS Single Row Deep Groove Ball Bearing- Both Sides Sealed 30mm I.D, 55mm O.D

RS-stocknr.:: 137-1608
Fabrikantnummer:: 6006-C-2HRS
Fabrikant:: FAG

FAG 6006-C-2HRS Single Row Deep Groove Ball Bearing- Both Sides Sealed 30mm I.D, 55mm O.D

Bekijk deze categorie

Bulkkorting beschikbaar

Prijs Per stuk**

€ 9,36

(excl. BTW)

€ 11,33

(incl. BTW)

Tijdelijk niet op voorraad – nieuwe voorraad verwacht op 11-06-2025, met een levertijd van 1 werkdag.*

* Bezorgdata kunnen veranderen afhankelijk van de gekozen hoeveelheid en het bezorgadres.

GRATIS bezorging voor bestellingen vanaf € 75,00

Aantal stuks	Per stuk
1 - 4	€ 9,36
5 - 9	€ 9,00
10 - 24	€ 8,80
25 +	€ 8,62

**prijsindicatie

RS-stocknr.:: 137-1608
Fabrikantnummer:: 6006-C-2HRS
Fabrikant:: FAG

Deep Groove Ball Bearings

FAG from Schaeffler deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. These products are of simple design, durable in operation and easy to maintain. They are available in single and double row designs and in open and sealed variants. Due to the production technology used, open bearings can still have turned recesses on the outer ring for seals or shields.

Features and Benefits

• Low noise levels

• Improved sealing

• Lower friction

• Cost-effective

Product Application Information

Open bearings are suitable for high speeds. Due to the manufacturing process, they have turned recesses for sealing washers and sealing shields.

Suffixes

2Z - Gap seals on both sides. These bearings are greased using a high-quality grease, lubricated for life and suitable for high speeds

2HRS - Lip seals on both sides made from nitrile butadiene rubber. These bearings have an improved sealing function and retention in the outer ring. They are greased using a high-quality grease, lubricated for life and suitable for moderate speeds

2BRS - Non-contact seals on both sides. Their friction level is as low as with the gap seals. In addition, they offer better protection against the ingress of dust and the escape of lubricant

2RSR - Lip seals on both sides made from nitrile butadiene rubber NBR and are suitable for moderate speeds

C - Modified internal construction in Generation C

Schaeffler 0 Extra Light Series Ball Bearing, 30mm Inside Diameter, 55mm Outside Diameter - 6006-C-2HRS

This ball bearing is a key component designed for efficient rotational performance in various applications. With an inner diameter of 30mm and an outer diameter of 55mm, this single row deep groove ball bearing features a sealing arrangement on both sides to protect against contamination. Constructed from robust steel materials, this product ensures durability and long-lasting operation in demanding environments.

Features & Benefits

• Both sides are sealed to prevent ingress of dirt and moisture
• Single row design allows for high load capacity and stability
• Steel construction offers enhanced durability and resistance to wear
• Incorporates a standard CN clearance for operational adaptability
• Suitable for use in industrial applications with significant load ratings
• Efficiently handles static load ratings of up to 8.3 kN

Applications

• Utilised in mechanical assemblies requiring reliable rotation
• Commonly employed in electrical motor
• Ideal for machinery operating in demanding industrial settings
• Used for automation equipment requiring high-performance bearings

What load ratings can be expected when using this ball bearing?

It has a dynamic load rating of 14.5 kN, ensuring it can handle substantial forces during operation.

How does the sealing arrangement enhance performance?

The dual sealing arrangement keeps lubricants inside while protecting against contaminants, thus prolonging service life.

What materials are used in the construction of the bearing?

The bearing is made entirely of steel, including the balls and cage, ensuring strength and reliability for various applications.

In what scenarios is the standard CN clearance beneficial?

The CN clearance allows for a balance between performance and thermal expansion, making it suitable for a wide range of operational conditions.

FAG

Kenmerk	Waarde
Inside Diameter	30mm
Outside Diameter	55mm
Race Width	13mm
Ball Bearing Type	Single Row Deep Groove Ball Bearing
Sealing Arrangement	Both Sides Sealed
Bearing Clearance	CN
Material	Steel
Ball Material	Steel
Cage Material	Steel
Number of Rows	1
Static Load Rating	8.3kN
Dynamic Load Rating	14.5kN
Clearance Code	CN
Bore Type	Parallel
Bearing Series	0 Extra Light
Race Type	Plain
Partial Bearing Code	6006
