SKF 6200-2RSL 1 Row Ball Bearing - 10 mm ID, 30 mm OD
- RS-stocknr.:
- 207-7073
- Fabrikantnummer:
- 6200-2RSL
- Fabrikant:
- SKF
Subtotaal (1 eenheid)*
€ 8,51
(excl. BTW)
€ 10,30
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 32 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 8,51 |
*prijsindicatie
- RS-stocknr.:
- 207-7073
- Fabrikantnummer:
- 6200-2RSL
- Fabrikant:
- SKF
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | SKF | |
| Inside Diameter | 10mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 30mm | |
| Race Width | 9mm | |
| Ball Material | Steel | |
| Cage Material | Sheet Metal | |
| End Type | Sealed | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 2.36kN | |
| Dynamic Load Rating | 5.4kN | |
| Series | 6200-2RSL | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Limiting Speed | 28000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Alles selecteren | ||
|---|---|---|
Merk SKF | ||
Inside Diameter 10mm | ||
Product Type Ball Bearing | ||
Outside Diameter 30mm | ||
Race Width 9mm | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
End Type Sealed | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 2.36kN | ||
Dynamic Load Rating 5.4kN | ||
Series 6200-2RSL | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Limiting Speed 28000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||

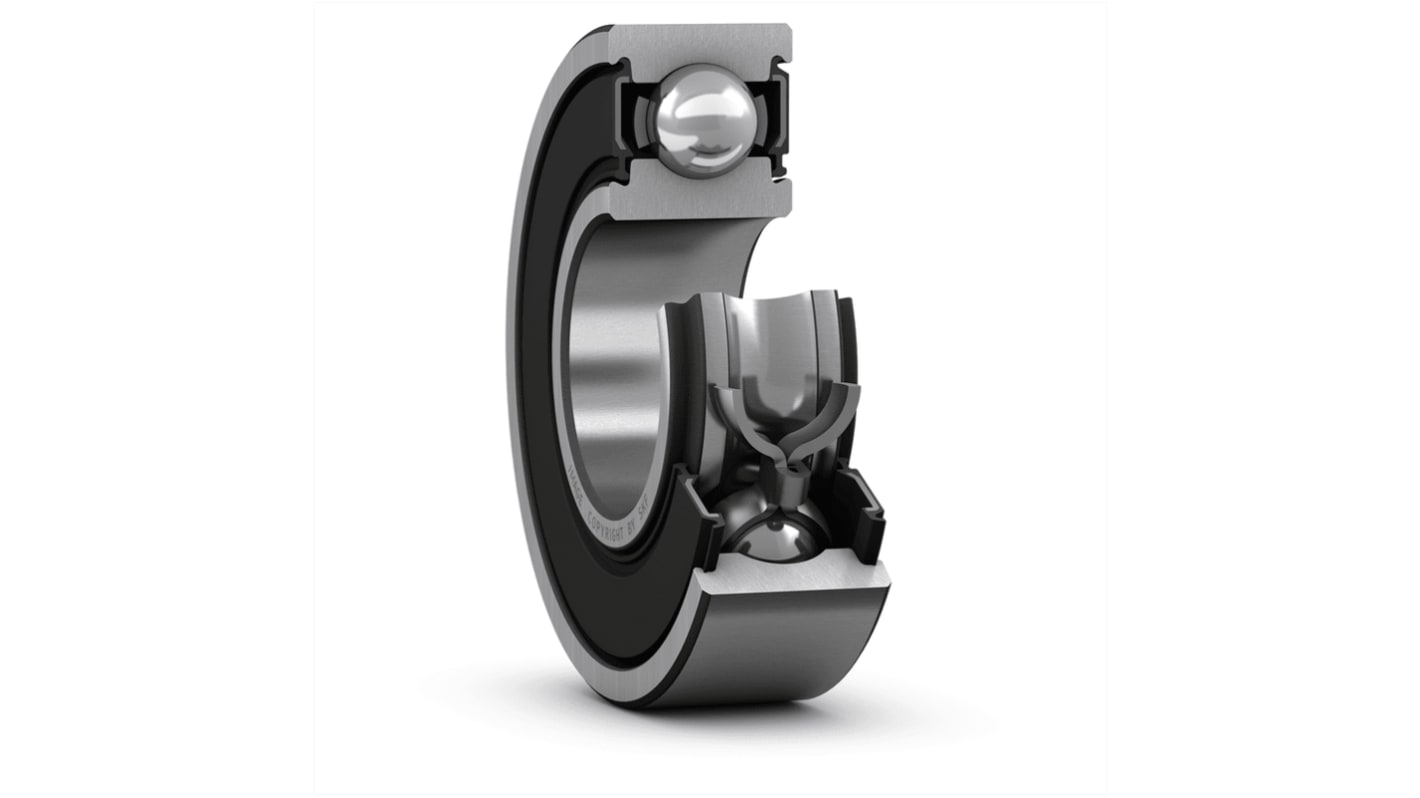

SKF 2 Light Series Ball Bearing, 5.4 kN Dynamic Load Rating, 30mm Outside Diameter - 6200-2RSL
This ball bearing offers a high-quality solution for mechanical applications. With an inside diameter of 10mm and an outside diameter of 30mm, it delivers dependable performance in various conditions. The single row deep groove design is optimised for effectively supporting radial loads. Enhanced sealing on both sides contributes to its durability and reduces the frequency of maintenance.
Features & Benefits
• Sealed on both sides to protect against contamination
• Single row design suitable for a range of applications
• Constructed from robust steel for longevity
• High dynamic load rating of 5.4kN for improved performance
• Compact dimensions ideal for applications with limited space
Applications
• Utilised in electric motor assemblies
• Applicable for gearboxes and transmission systems
• Employed in conveyor systems for smooth operation
• Ideal for high-speed rotary
• Used in automated equipment to enhance efficiency
Can it handle high-speed applications?
Yes, it has a limiting speed of 28000r/min.
Is it suitable for high-load environments?
Yes, it features a dynamic load rating of 5.4kN.
