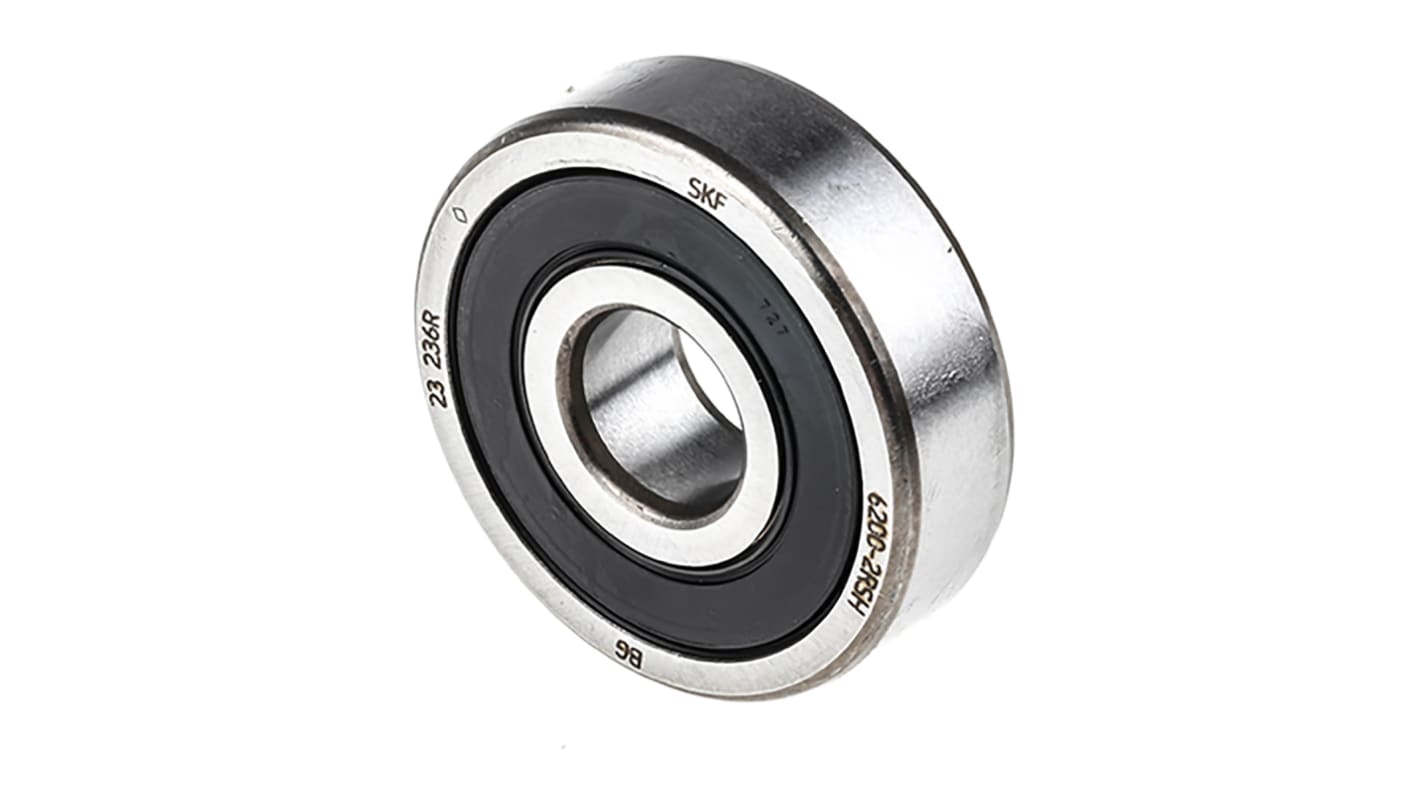

SKF 6200-2RSH 1 Row Ball Bearing - 10 mm ID, 30 mm OD
- RS-stocknr.:
- 442-0060
- Artikelnummer Distrelec:
- 148-50-133
- Fabrikantnummer:
- 6200-2RSH
- Fabrikant:
- SKF
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 6,32
(excl. BTW)
€ 7,65
(incl. BTW)
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 6,32 |
| 5 - 9 | € 6,06 |
| 10 - 24 | € 5,93 |
| 25 + | € 5,81 |
*prijsindicatie
- RS-stocknr.:
- 442-0060
- Artikelnummer Distrelec:
- 148-50-133
- Fabrikantnummer:
- 6200-2RSH
- Fabrikant:
- SKF
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | SKF | |
| Inside Diameter | 10mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 30mm | |
| Race Width | 9mm | |
| Cage Material | Sheet Metal | |
| Ball Material | Steel | |
| End Type | Sealed | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 2.36kN | |
| Dynamic Load Rating | 5.4kN | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Series | 6200 | |
| Limiting Speed | 17000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Plain | |
| Alles selecteren | ||
|---|---|---|
Merk SKF | ||
Inside Diameter 10mm | ||
Product Type Ball Bearing | ||
Outside Diameter 30mm | ||
Race Width 9mm | ||
Cage Material Sheet Metal | ||
Ball Material Steel | ||
End Type Sealed | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 2.36kN | ||
Dynamic Load Rating 5.4kN | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Series 6200 | ||
Limiting Speed 17000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Plain | ||
Vrijgesteld
SKF Sealed Deep-Groove Metric Ball Bearing, 10mm ID, 30mm OD - 6200-2RSH
Looking for a tough bearing solution for use in heavy-duty applications? This sealed deep-groove ball bearing from SKF supports axial and radial loads in both directions and is suitable for high-speed and very high-speed applications. Oil-resistant synthetic rubber seals prevent the leakage of lubricant and stop dust and other contaminants from entering the bearing, enhancing efficiency and minimising maintenance. The innovative, precise design of the raceway and the use of high-quality bearing balls limit vibration and noise to ensure the smooth operation of your equipment.
• Broad operating temperature range of -40°C to +120°C for use in a variety of demanding environments
• C3 clearance ensures the bearing has room for expansion between the races if needed for reliable operation
• Made of durable and corrosion-resistant steel for long-lasting performance
Applications
• Agricultural machinery and vehicles
• DVD players and laptops
• Domestic and commercial fans
Can I use this ball bearing for heavy loads?
Yes, this ball bearing has a static load rating of 2.36kN and a dynamic load rating of 5.4kN, so it's a good choice for use in applications involving heavy loads.
