SKF 51206 1 Row Ball Bearing - 30 mm ID, 52 mm OD
- RS-stocknr.:
- 285-2241
- Fabrikantnummer:
- 51206
- Fabrikant:
- SKF
Bulkkorting beschikbaar
Bekijk bulkkortingSubtotaal (1 eenheid)*
€ 31,57
(excl. BTW)
€ 38,20
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- Plus verzending 1 stuk(s) vanaf 12 oktober 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 31,57 |
| 5 - 9 | € 30,31 |
| 10 - 24 | € 29,66 |
| 25 + | € 29,06 |
*prijsindicatie
- RS-stocknr.:
- 285-2241
- Fabrikantnummer:
- 51206
- Fabrikant:
- SKF
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | SKF | |
| Inside Diameter | 30mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 52mm | |
| Race Width | 16mm | |
| Ball Material | Steel | |
| Cage Material | Sheet Metal | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 51kN | |
| Dynamic Load Rating | 25.1kN | |
| Series | 1 Extra Light Thrust | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Limiting Speed | 6700rpm | |
| Bearing Type | Thrust Ball | |
| Race Type | Plain | |
| Alles selecteren | ||
|---|---|---|
Merk SKF | ||
Inside Diameter 30mm | ||
Product Type Ball Bearing | ||
Outside Diameter 52mm | ||
Race Width 16mm | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 51kN | ||
Dynamic Load Rating 25.1kN | ||
Series 1 Extra Light Thrust | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Limiting Speed 6700rpm | ||
Bearing Type Thrust Ball | ||
Race Type Plain | ||

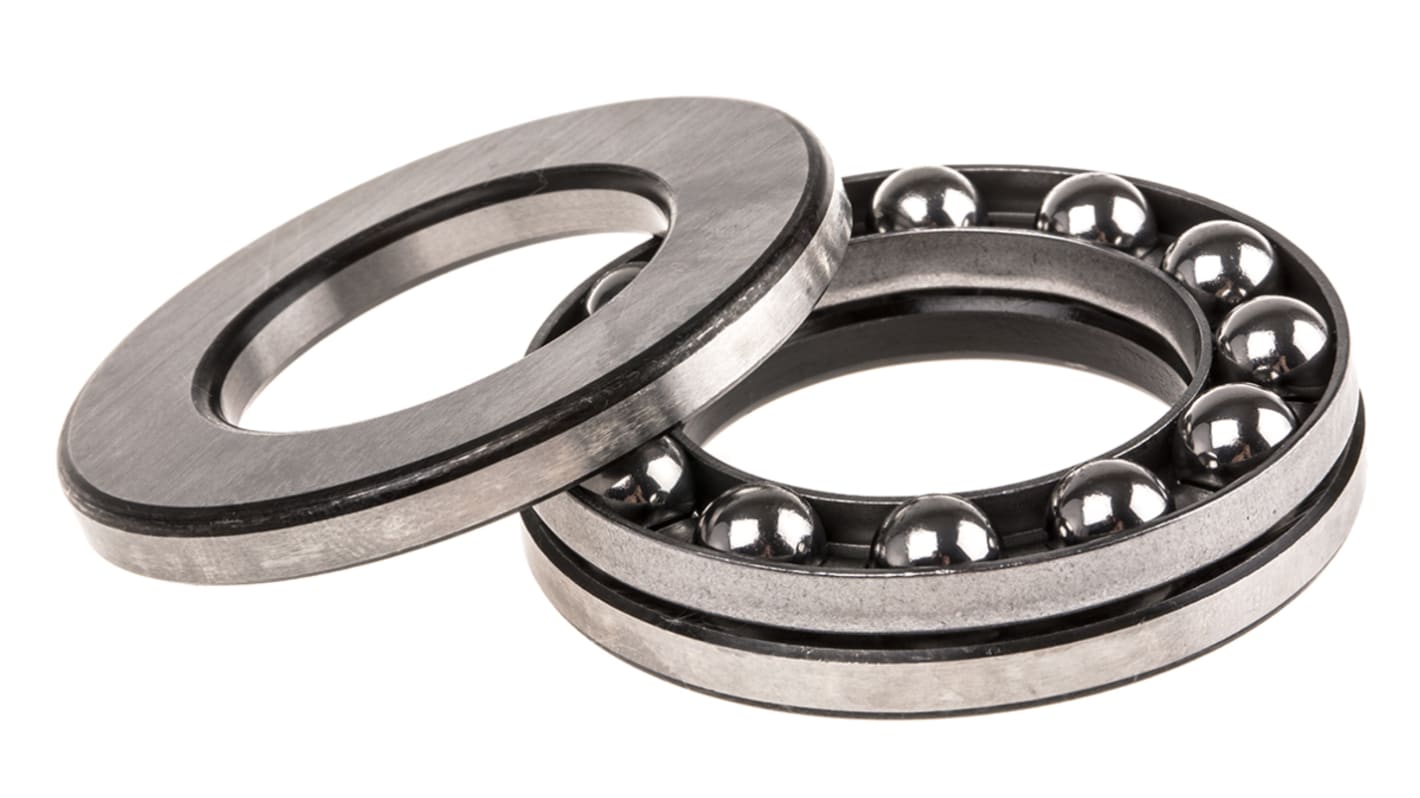

SKF Thrust Ball Bearing, 30mm ID, 52mm OD - 51206
Use this thrust ball bearing from SKF to reduce rotational friction and shaft drift when supporting a heavy axial load in your machinery. The bearing is made of durable steel, making it resistant to corrosion and suitable for outdoor use. To aid your system's shaft rotation, it features two strong thrust plates with matching ball grooves along its raceway. This ensures smooth and reliable operation with minimal friction. You can install this bearing in tight or awkward spaces thanks to its compact dimensions of 16 (width) x 30 (inner diameter) x 52mm (outer diameter).
• Low weight of 130g won't put strain on your system
• Limiting speed of 6,700r/min (rotations per minute) ensures fast and effective rotation
• High dynamic load rating of 26kN (kilonewtons) for use with demanding industrial equipment
Applications
• Food processing
• Agricultural industry
• Industrial machinery
What's a thrust ball bearing?
A thrust ball bearing is a type of bearing used to safely transfer heavy axial loads. It prevents a shaft in your machinery from drifting in the axial direction and transfers thrust loads.
