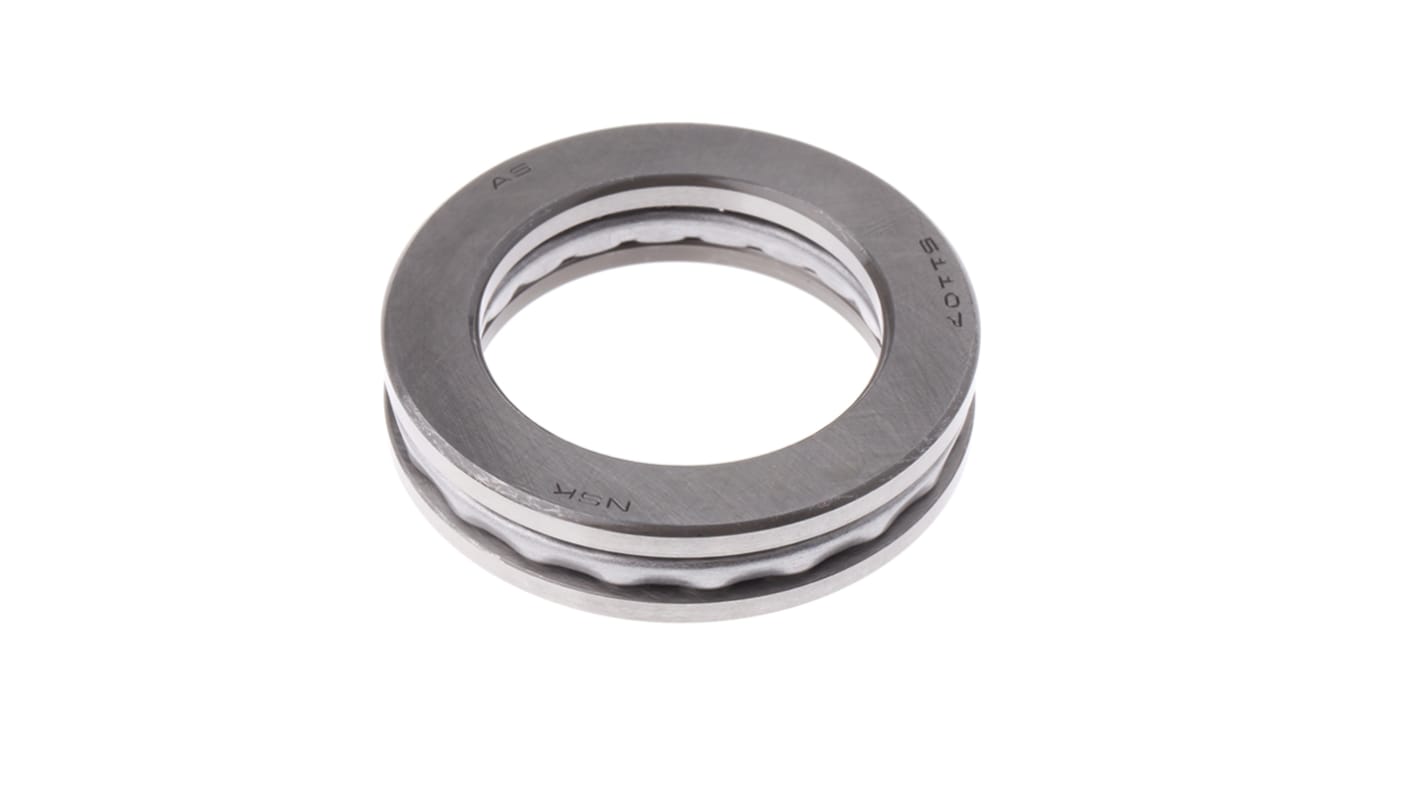

NSK 51107 N 1 Row Ball Bearing - 35 mm ID, 52 mm OD
- RS-stocknr.:
- 409-0906
- Fabrikantnummer:
- 51107 N
- Fabrikant:
- NSK
Bulkkorting beschikbaar
Bekijk bulkkortingSubtotaal (1 eenheid)*
€ 19,26
(excl. BTW)
€ 23,30
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 22 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 19,26 |
| 5 - 9 | € 18,49 |
| 10 - 24 | € 18,13 |
| 25 + | € 17,72 |
*prijsindicatie
- RS-stocknr.:
- 409-0906
- Fabrikantnummer:
- 51107 N
- Fabrikant:
- NSK
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | NSK | |
| Product Type | Ball Bearing | |
| Inside Diameter | 35mm | |
| Outside Diameter | 52mm | |
| Race Width | 12mm | |
| Ball Material | Steel | |
| Cage Material | Steel | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 48.5kN | |
| Dynamic Load Rating | 22.1kN | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Series | 1 Extra Light Thrust | |
| Limiting Speed | 6000rpm | |
| Race Type | Plain | |
| Bearing Type | Thrust Ball | |
| Alles selecteren | ||
|---|---|---|
Merk NSK | ||
Product Type Ball Bearing | ||
Inside Diameter 35mm | ||
Outside Diameter 52mm | ||
Race Width 12mm | ||
Ball Material Steel | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 48.5kN | ||
Dynamic Load Rating 22.1kN | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Series 1 Extra Light Thrust | ||
Limiting Speed 6000rpm | ||
Race Type Plain | ||
Bearing Type Thrust Ball | ||
Vrijgesteld
Metric Steel Ball Thrust Bearing
NSK’s range of thrust bearings are suitable for unidirectional axial loads. Supplied as three-part assemblies, these thrust bearings comprise of two grooved outer raceways and a caged ball set.
These bearings are not suitable for radial loads. Trying to apply and sustain any radial load on a thrust bearing can risk misalignment and damage.
Thrust bearings can be found in a variety of industries such as aerospace, marine and automotive with applications like vertical shaft bearings and steering columns. Commonly found in car gearboxes and clutches, thrust bearings can help to reduce loads as well as help to reduce noise.
