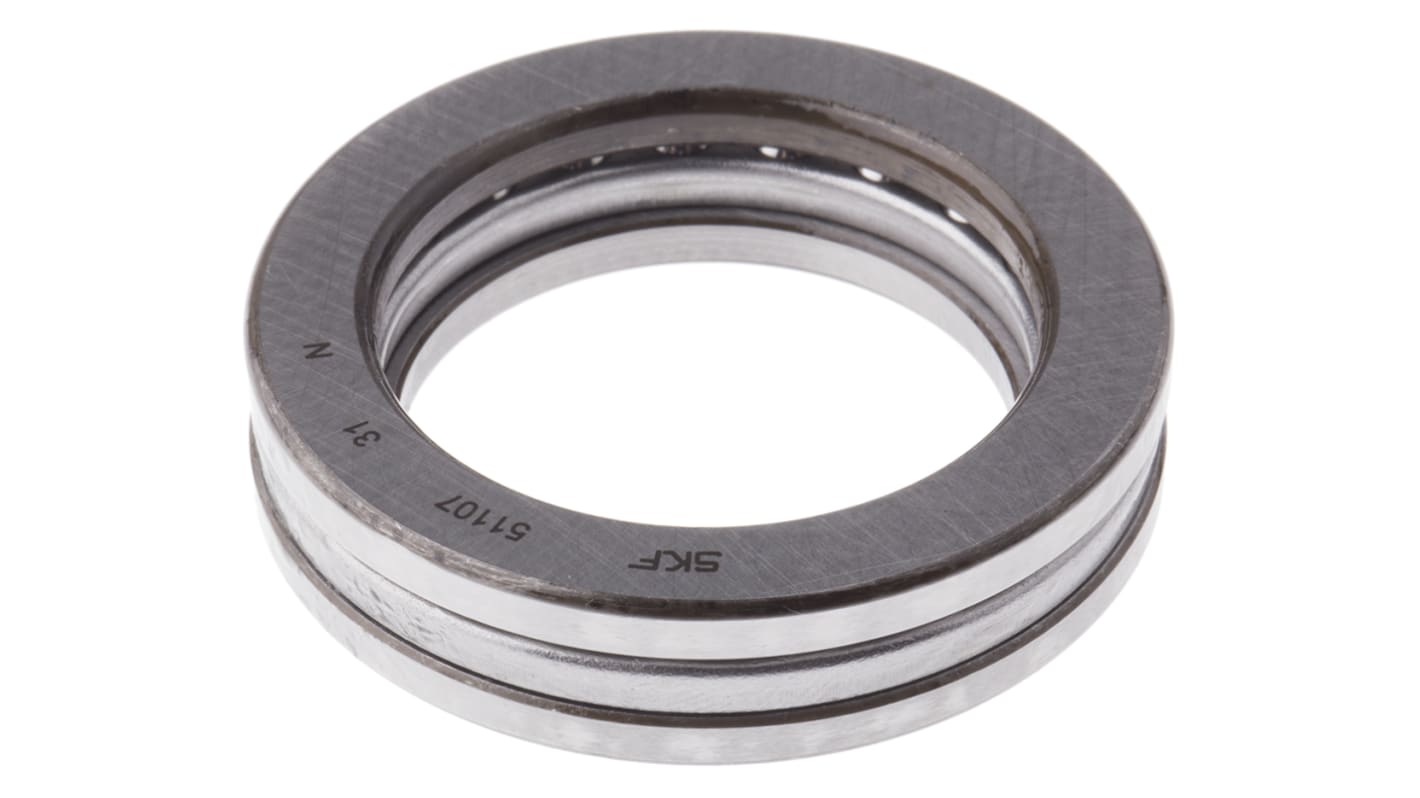

SKF 51107 1 Row Ball Bearing - 35 mm ID, 52 mm OD
- RS-stocknr.:
- 286-8549
- Fabrikantnummer:
- 51107
- Fabrikant:
- SKF
Bulkkorting beschikbaar
Bekijk bulkkortingSubtotaal (1 eenheid)*
€ 25,36
(excl. BTW)
€ 30,69
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 14 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 25,36 |
| 5 - 9 | € 24,34 |
| 10 - 24 | € 23,86 |
| 25 + | € 23,33 |
*prijsindicatie
- RS-stocknr.:
- 286-8549
- Fabrikantnummer:
- 51107
- Fabrikant:
- SKF
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 35mm | |
| Outside Diameter | 52mm | |
| Race Width | 12mm | |
| Cage Material | Sheet Metal | |
| Ball Material | Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 51kN | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 19.9kN | |
| Series | 1 Extra Light Thrust | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Limiting Speed | 7500rpm | |
| Bearing Type | Thrust Ball | |
| Race Type | Plain | |
| Alles selecteren | ||
|---|---|---|
Merk SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 35mm | ||
Outside Diameter 52mm | ||
Race Width 12mm | ||
Cage Material Sheet Metal | ||
Ball Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 51kN | ||
Internal Clearance CN | ||
Dynamic Load Rating 19.9kN | ||
Series 1 Extra Light Thrust | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Limiting Speed 7500rpm | ||
Bearing Type Thrust Ball | ||
Race Type Plain | ||
Vrijgesteld
- Land van herkomst:
- CZ
SKF Ball Bearing, Thrust Bearing Type, 35mm ID, 52mm OD - 51107
Looking to move an axial load in a single direction? Give the job to this thrust ball bearing from SKF. Its sheet metal cage and internal seat work together to keep the balls inside properly aligned. As a result, the unit's got the mechanical might to work at speeds of up to 7,500r/min, making it a handy pick for your high-velocity applications. Thanks to the practical separable design, it's easy to mount or dismount for maintenance. A ground bore on the washers helps you get a stable interference fit. This minimises bearing creep that can otherwise damage equipment surfaces and shafts.
Features & Benefits
• Dynamic load rating of 19.9kN, so withstands large forces when in motion
• Carbon-rich steel bearings provide hardness and wear resistance for a long service life
• Interchangeable elements mean you can replace just one part in case of damage
Applications
• Piercing mills
• Handheld tools
• Mining industry
• Agriculture equipment
• Aerospace engineering
What temperatures can I use this product in?
The bearing and included washers withstand temperatures up to +125°C, so you can rest assured they're safe for use in harsh environments.
