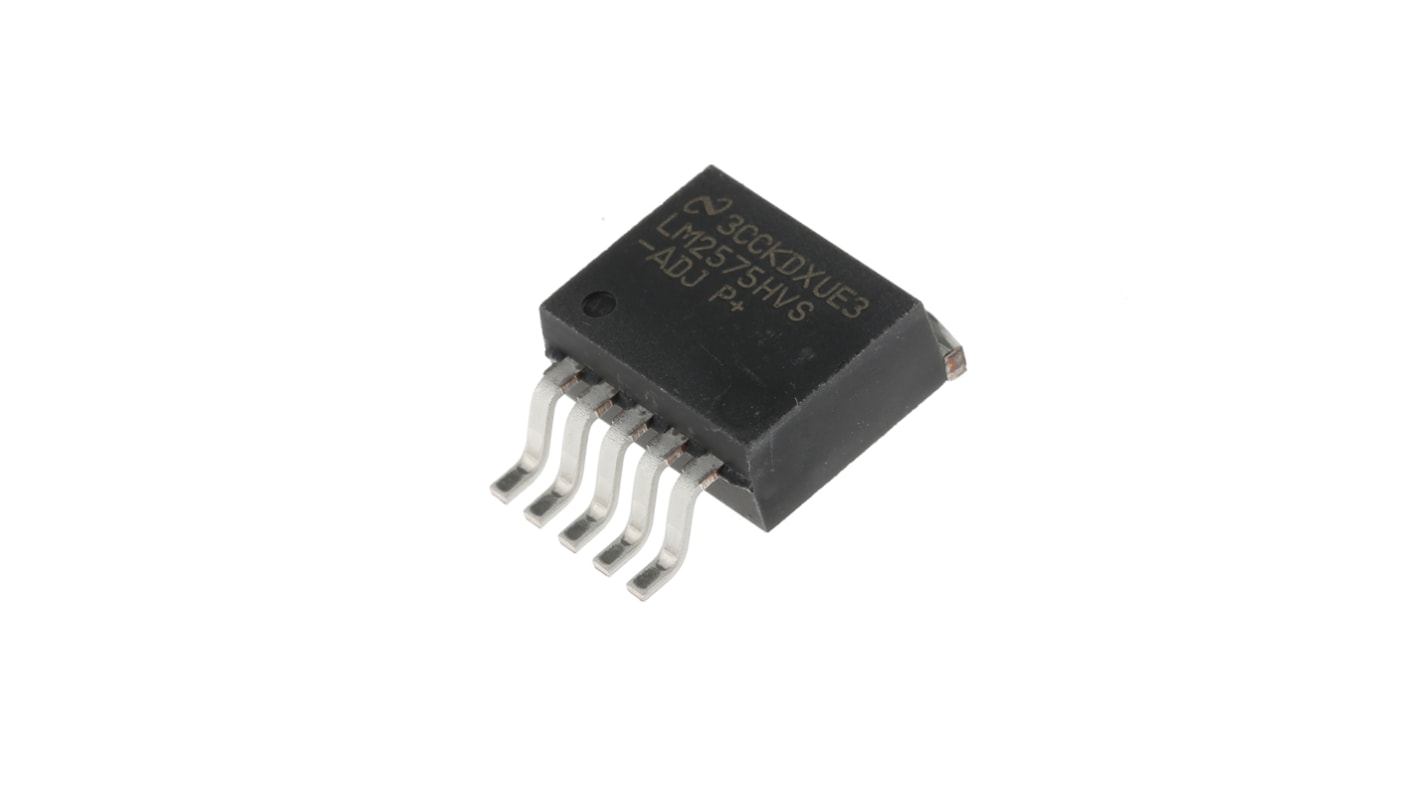

Texas Instruments, LM2575HVS-ADJ/NOPB Step-Down Switching Regulator, 1-Channel 1A Adjustable 5-Pin, D2PAK
- RS-stocknr.:
- 460-459
- Fabrikantnummer:
- LM2575HVS-ADJ/NOPB
- Fabrikant:
- Texas Instruments
Sorry, we konden onze voorraadniveaus nu niet controleren. Probeer de pagina te vernieuwen.
Toegevoegd
Prijs Per stuk
€ 5,61
(excl. BTW)
€ 6,79
(incl. BTW)
Aantal stuks | Per stuk |
1 - 8 | € 5,61 |
9 - 22 | € 4,71 |
23 + | € 4,43 |
- RS-stocknr.:
- 460-459
- Fabrikantnummer:
- LM2575HVS-ADJ/NOPB
- Fabrikant:
- Texas Instruments
Wetgeving en compliance
Productomschrijving
SIMPLE SWITCHER® Step-Down Regulators, LM257x Series
SIMPLE SWITCHER® Regulators, Texas Instruments
Use for wide voltage inputs designs up to 75V, and a balance between ease of use and flexibility.
Specificaties
Kenmerk | Waarde |
---|---|
Maximum Output Current | 1A |
Maximum Output Voltage | 57 V |
Regulator Function | Buck Controller, Inverting |
Minimum Output Voltage | 1.23 V |
Minimum Input Voltage | 4 V |
Maximum Input Voltage | 60 V |
Output Type | Adjustable |
Mounting Type | Surface Mount |
Number of Outputs | 1 |
Pin Count | 5 |
Maximum Switching Frequency | 58 kHz |
Package Type | D2PAK (TO-263) |
Switching Regulator | Yes |
Maximum Operating Temperature | +125 °C |
Dimensions | 10.16 x 8.64 x 4.57mm |
Height | 4.57mm |
Length | 10.16mm |
Width | 8.64mm |
Minimum Operating Temperature | -40 °C |
Efficiency | 77% |
