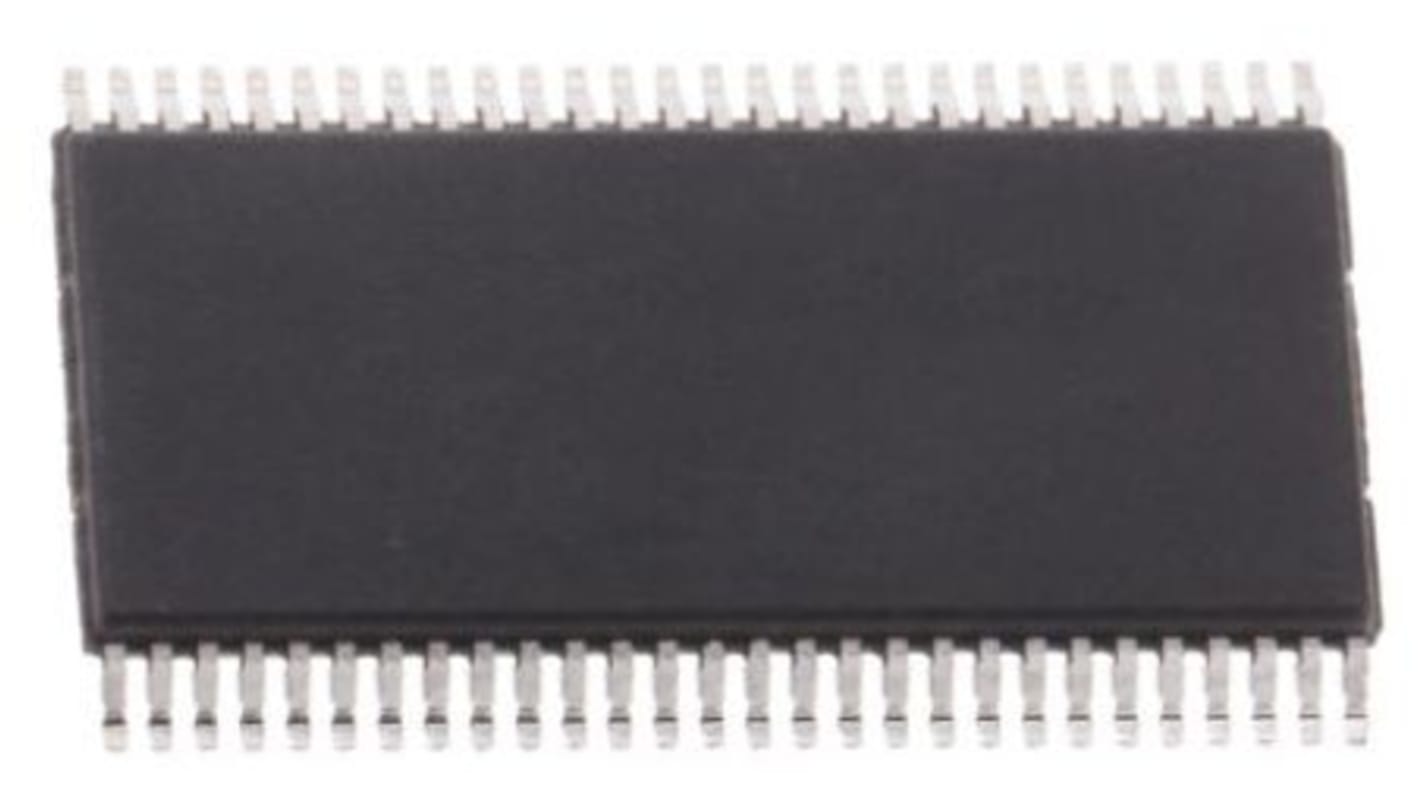

Renesas Electronics QS3VH16233PAG, Bus Switch, 56-Pin TSSOP

Bekijk alle Bus Switches
Momenteel niet beschikbaar
We weten niet of dit item nog op voorraad komt, RS is van plan dit binnenkort uit ons assortiment te halen.
Verpakkingsopties
RS-stocknr.:
217-7976
Fabrikantnummer:
QS3VH16233PAG
Fabrikant:
Renesas Electronics
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Renesas Electronics

Logic Family

CMOS

Product Type

Bus Switch

Number of Elements per Chip

54

Mount Type

Surface

Maximum Quiescent Current

3mA

Package Type

TSSOP

Minimum Supply Voltage

2.3V

Maximum Supply Voltage

3.6V

Pin Count

56

Minimum Operating Temperature

-40°C

Maximum On State Resistance

9Ω

Maximum Propagation Delay Time @ CL

0.2ns

Maximum Operating Temperature

85°C

Length

8.7mm

Height

1.47mm

Standards/Approvals

RoHS

Series

QS3VH16233

Automotive Standard

No

The Renesas Electronics QS3VH16233 HotSwitch is a 32-bit to 16-bit high bandwidth bus switch, which can multiplex or demultiplex data. The QS3VH16233 has very low ON resistance, resulting in under 250ps propagation delay through the switch. This device can be used as two 16-bit to 8-bit multiplexers or as one 32-bit to 16-bit multiplexer. The combination of near-zero propagation delay, high OFF impedance, and over-voltage tolerance also makes the QS3VH16233 ideal for high performance communications applications. The QS3VH16233 operates from -40C to +85C.

N channel FET switches with no parasitic diode to Vcc

Isolation under power-off conditions

No DC path to Vcc or GND

5V tolerant in OFF and ON state

5V tolerant I/Os

Low RON - 4 ohm typical

Flat RON characteristics over operating range

Rail-to-rail switching 0 - 5V

Bidirectional dataflow with near-zero delay: no added ground bounce

Excellent RON matching between channels

Vcc operation: 2.3V to 3.6V
