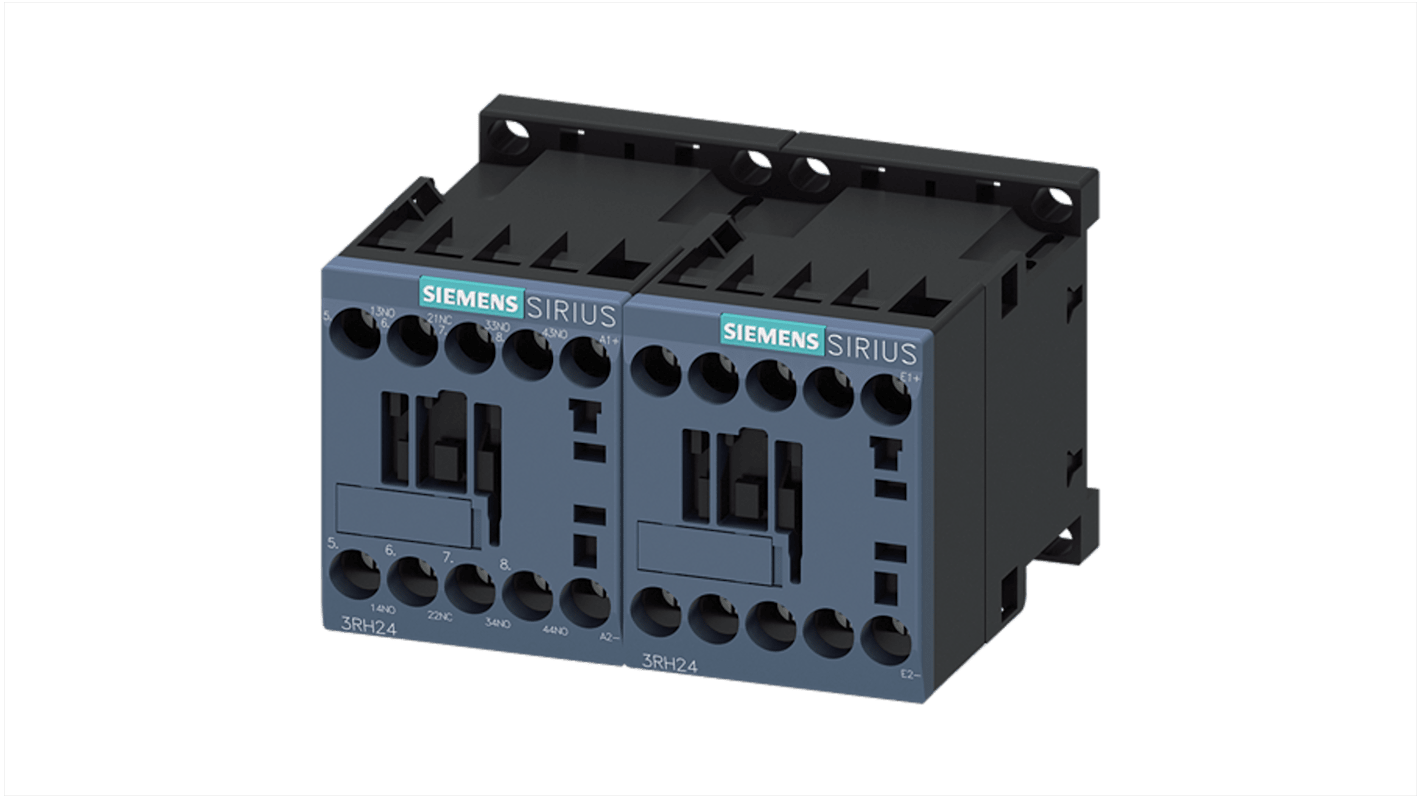

Siemens, 3RH2 Contactor Relay 1 NO/3 NC, 10A Contact Rating, 24V dc
- RS-stocknr.:
- 154-389
- Fabrikantnummer:
- 3RH2431-1BB40
- Fabrikant:
- Siemens
Subtotaal (1 eenheid)*
€ 177,76
(excl. BTW)
€ 215,09
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 28 september 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 177,76 |
*prijsindicatie
- RS-stocknr.:
- 154-389
- Fabrikantnummer:
- 3RH2431-1BB40
- Fabrikant:
- Siemens
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Siemens | |
| Product Type | Contactor Relay | |
| Relay Contact Current | 10A | |
| Series | 3RH2 | |
| Mount Type | Screw and Snap-On | |
| Terminal Type | Screw | |
| Normal State Configuration | 1 NO/3 NC | |
| IP Rating | IP20 | |
| Width | 90mm | |
| Minimum Operating Temperature | -25°C | |
| Number of Auxiliary Contacts | 4 | |
| Length | 57.5mm | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | CE, EAC, UKCSA, UL, CCC | |
| Depth | 73mm | |
| Control Voltage | 24V dc | |
| Alles selecteren | ||
|---|---|---|
Merk Siemens | ||
Product Type Contactor Relay | ||
Relay Contact Current 10A | ||
Series 3RH2 | ||
Mount Type Screw and Snap-On | ||
Terminal Type Screw | ||
Normal State Configuration 1 NO/3 NC | ||
IP Rating IP20 | ||
Width 90mm | ||
Minimum Operating Temperature -25°C | ||
Number of Auxiliary Contacts 4 | ||
Length 57.5mm | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals CE, EAC, UKCSA, UL, CCC | ||
Depth 73mm | ||
Control Voltage 24V dc | ||
- Land van herkomst:
- DE
The Siemens Contactor Relay is a robust and reliable device designed for various industrial applications. Its compact design accommodates multiple contact configurations, ensuring flexibility in use. With a mechanical service life of up to 5 million cycles, it offers longevity and resilience, making it ideal for demanding environments. Operating efficiently across a wide temperature range, it also provides significant energy saving capabilities, making it an environmentally friendly solution. Compatibility with auxiliary switch blocks enhances its functionality, offering tailored control for diverse operational needs.
Versatile contact configuration
Broad temperature range
High mechanical endurance
Efficient energy management
Straightforward DIN rail installation
Comprehensive safety
